3.3 Keypad and Terminal Cover Installation
It is not necessary to remove the keypad before wiring. You just need to loosen the terminal cover
screw and remove the terminal cover.
440V 1 to 30HP model enclosure are non-metal. Loosen terminal cover screw and remove terminal
cover for wiring. After wiring, affix the terminal cover back in position and tighten the screw. For
wiring instructions and screw tightening torque please refer to Chapter 4.

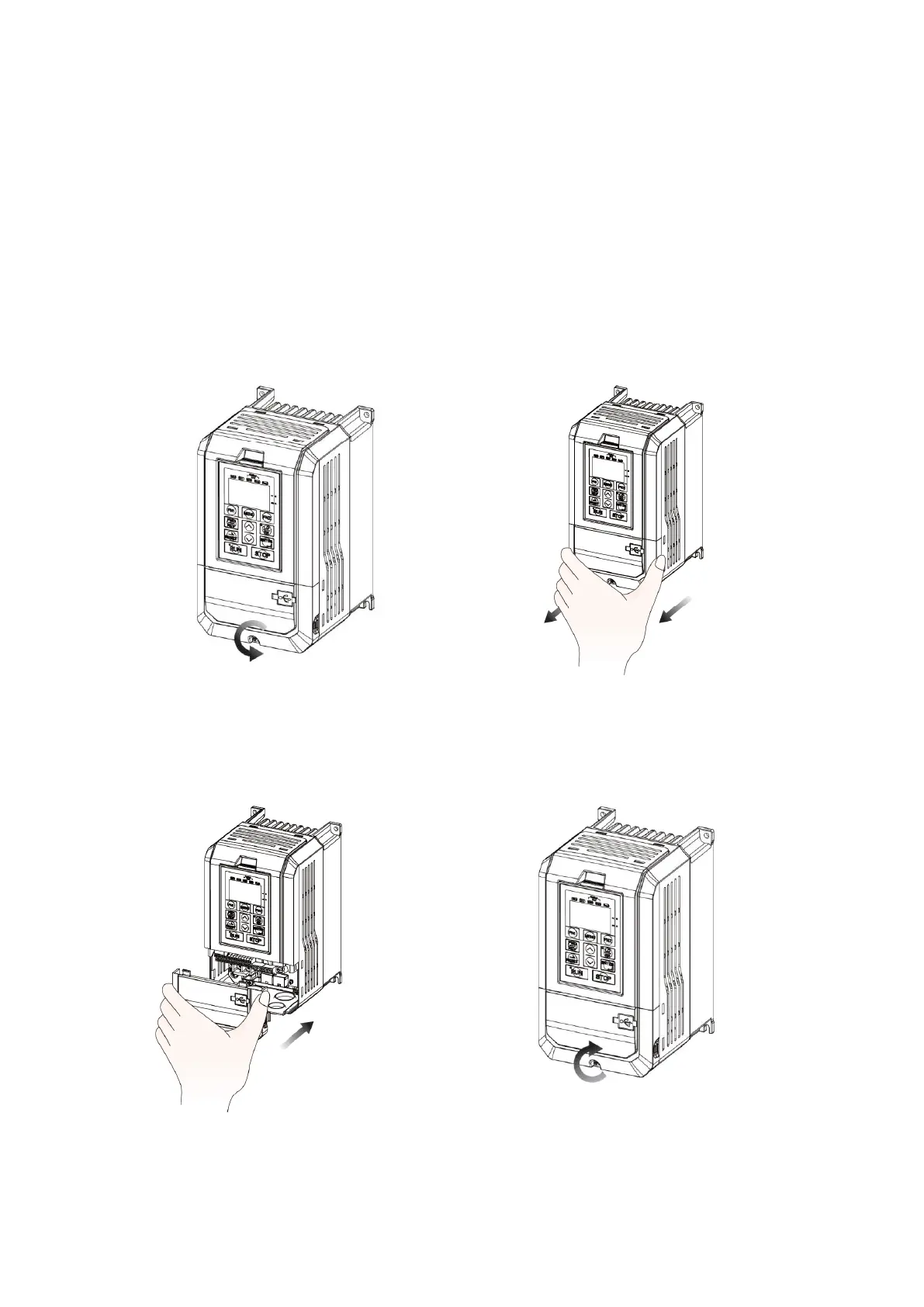

Step 1: Loosen the Screw Step 2: Remove the Terminal Cover
Step 3: Affix the Terminal Cover After Wiring Step 4: Tighten the Screw
