3.2.2.2 Side-by-Side Installation
Install the AC drives as illustrated below to ensure the required space for airflow and wiring.
Note: When installing drives of different sizes, align the tops of the drives for easier cooling fan
replacement.
A – Minimum 50 mm B - Minimum 30 mm C - Minimum 10 mm D - Minimum 150 mm

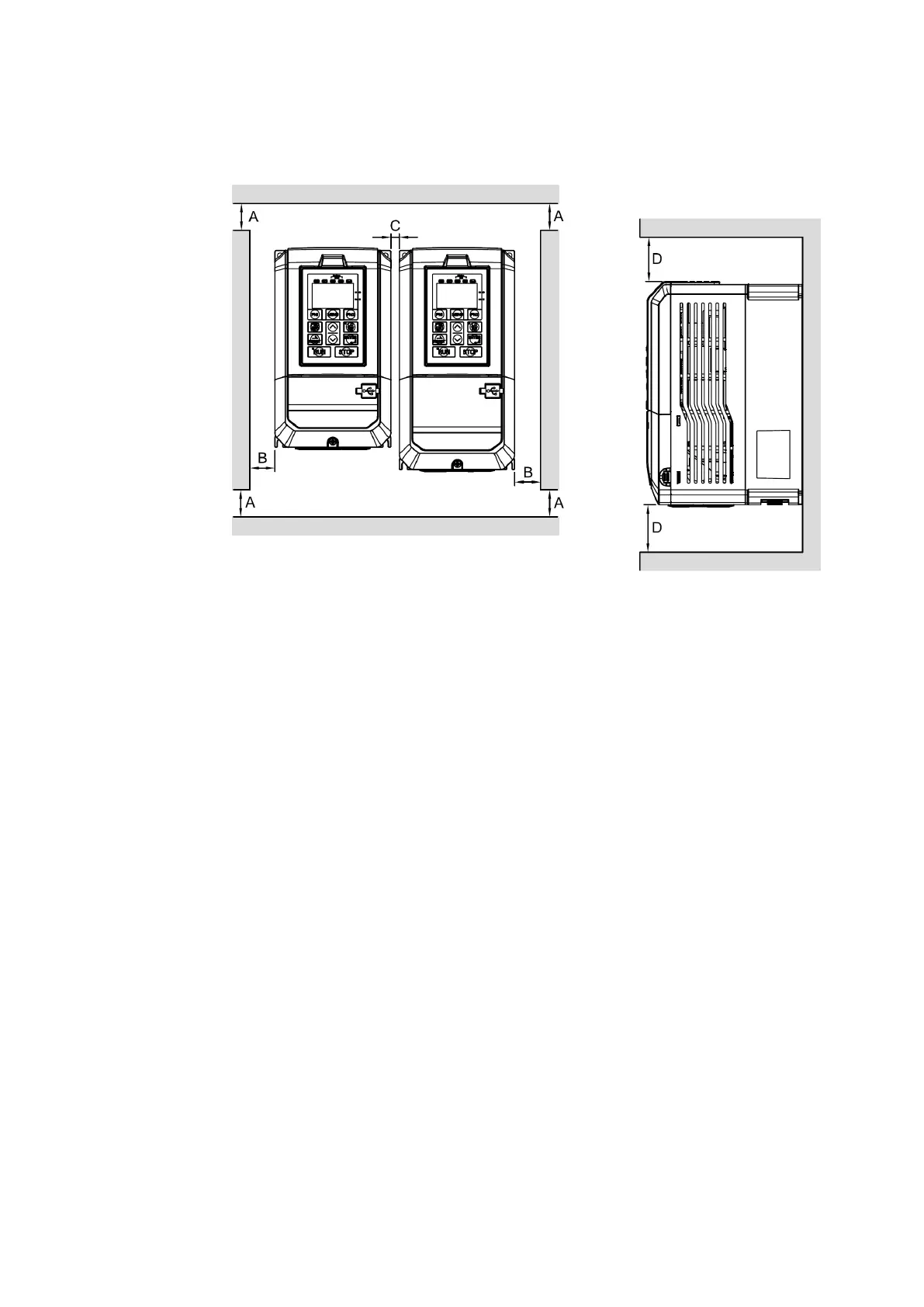

Figure 3.3 Installation Space for Side-by-Side Installation
