3.2 Installation Direction and Spacing
3.2.1 Installation Direction
Install the AC drive upright for better cooling.
3.2.2 Installation Spacing
3.2.2.1 Single Drive Installation
Install the AC drive as illustrated below to ensure the required space for airflow and wiring.
Note: Same amount of space is required for IP00 and NEMA 1 enclosure.
OK
NG
NG
 Upright installation
 Horizontal installation
 Transverse installation

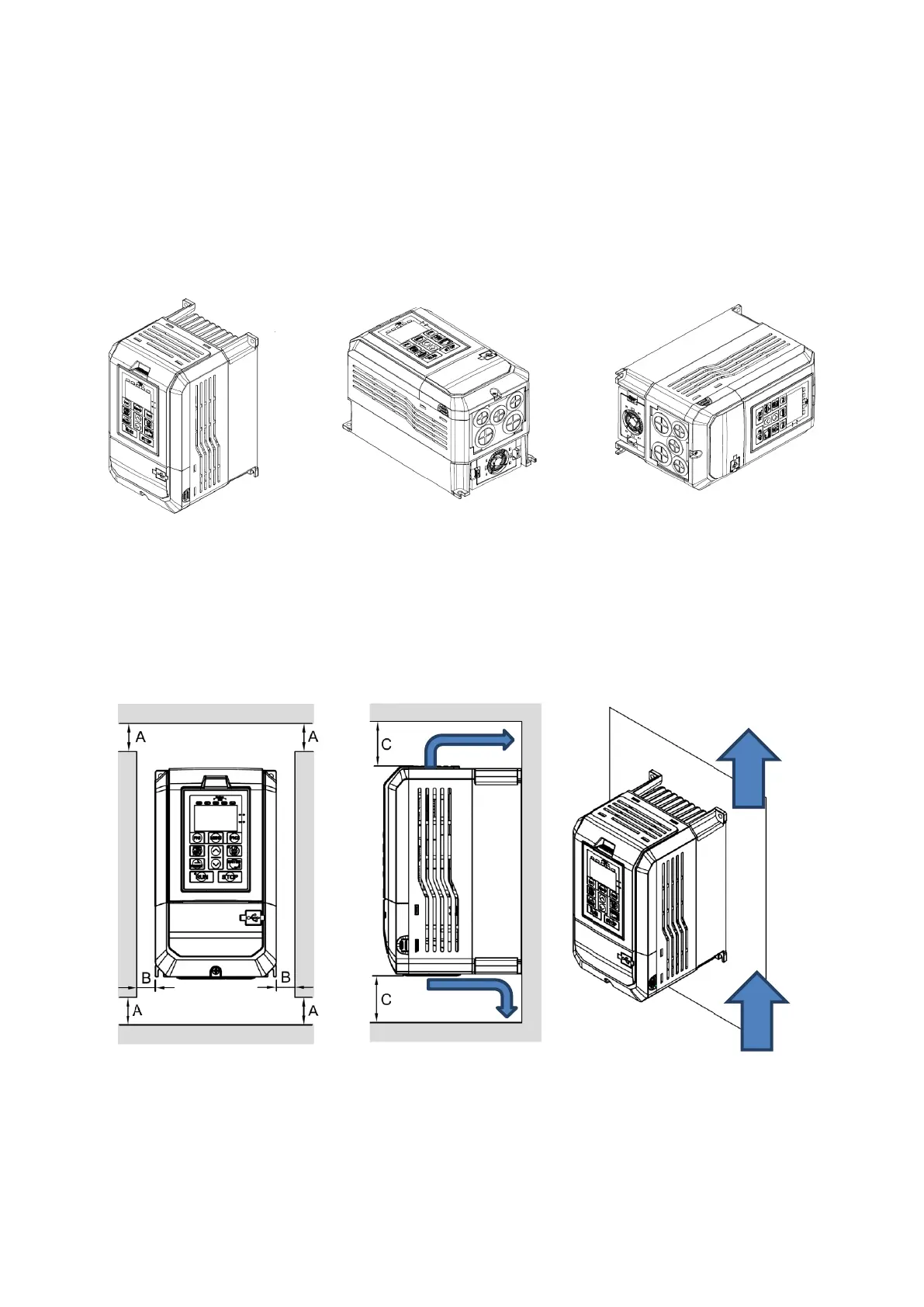

Figure 3.1 Installation Direction
A – Minimum 50 mm B - Minimum 30 mm C - Minimum 150 mm
Figure 3.2 Installation Spacing for Single Drive
