LiteOn EVO 8000 Series User Manual

36

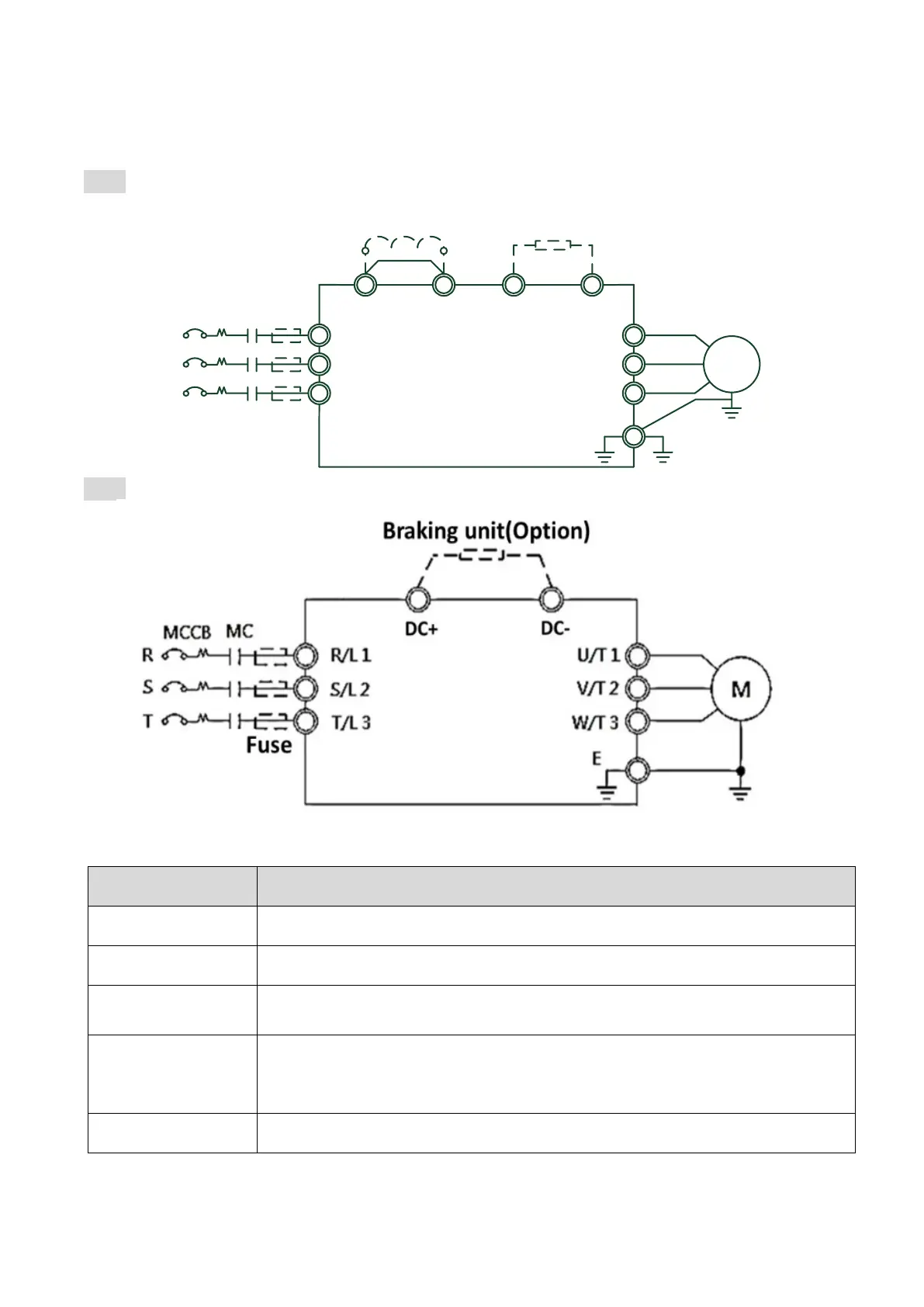

4.2.1 Main Circuit Terminal
F1-F4
R/L 1
S/L 2
T/L 3
U/T 1
V/T 2
W/T 3
E
+1 +2 B1 B2
(DC+)
IM
DC Reactor
(option)
Braking Resistor
(option)
MCCB MC
Fast Acting Fuse
R
S
T
F5-F6
Table 4.2.1 Main Circuit Terminals
Terminal Name
Terminal Description
R/L1, S/L2, T/L3
Power input terminal
U/T1, V/T2, W/T3
Power output terminal
+1, +2 (DC+)
DC reactor terminal. Please remove the jumper before installation
B1, B2
Braking resistor terminal. Select option as per the specifications. (Please
refer to Chapter 7.1)
E
Ground terminal
