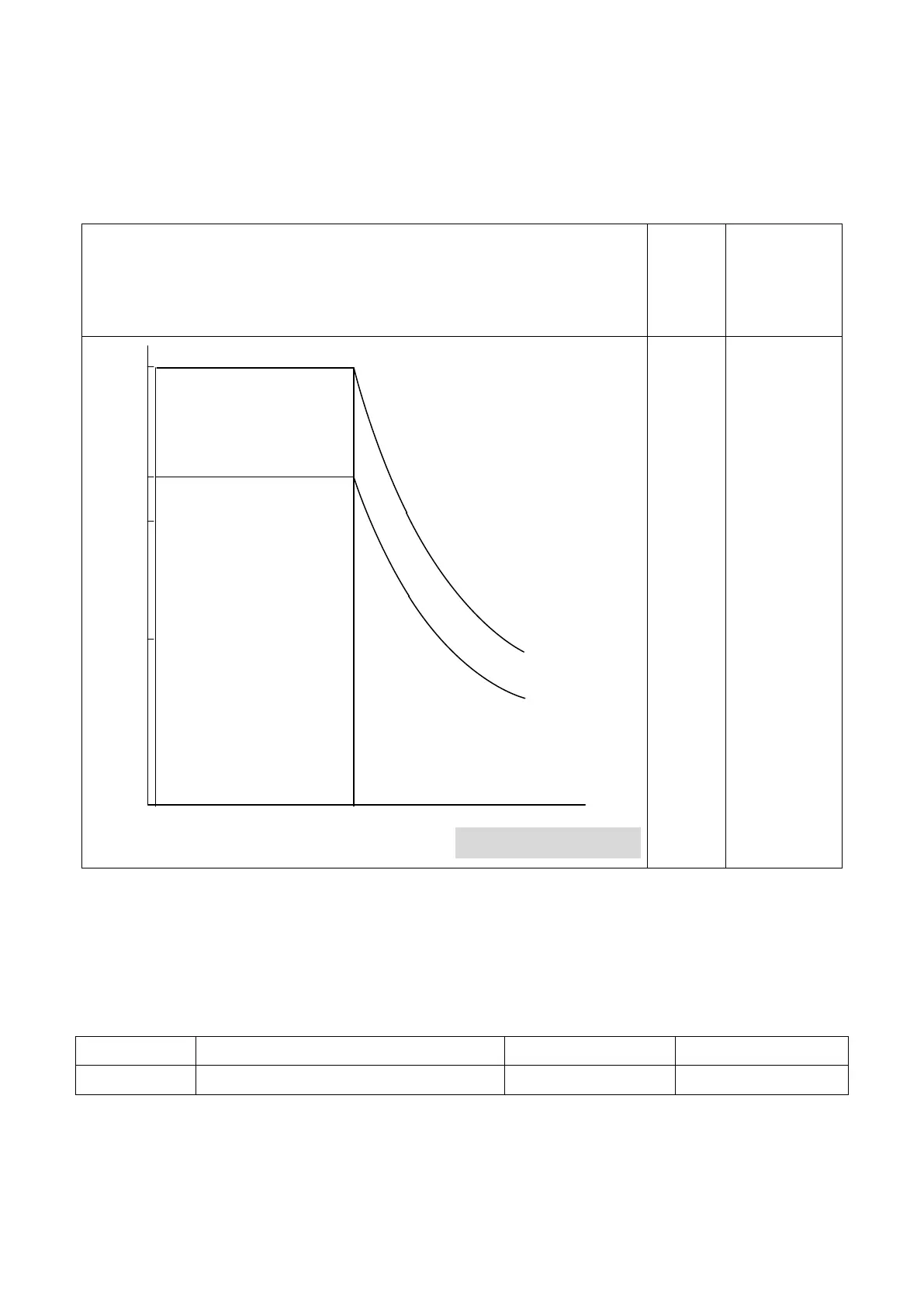

3 : Vector Motor (Constant Torque Range 1 : 100)
The motor is allowed to run with 100% load from 1% to 100% speed. When the motor runs
slower with 100% load, an overload fault will be triggered.
Overload Tolerance
Cooling
Ability
Overlaod
Characteristics
(when motor
load is 100%)
150
100
90
50
Torque
(%)
0 1
10
100 Speed (%)
(60Hz)
60 seconds
Continuous
Rated speed=100%
speed
Motor
cools
itself
effectively
even at
low
speeds
(about 6
Hz)
Continuous
run from 6 Hz
to 60 Hz
 P1-01 Motor Overload Protection Time
Sets the time for the drive to shut down on motor overload. (Normal this parameter does not
require adjustment. However, enter the time the motor can withstand operation in a hot motor
overload condition if the motor overload tolerance data is confirmed by the motor
manufacturer.)
No.
Name
Setting Range
Default
P1-01
Motor Overload Protection Time
0.1 to 5.0 min
1.0 min
The default is operation with 150% overload tolerance for one minute in a hot start.
The electrothermal protection operation time is illustrated in the following figure. Motor
overload protection operates in the range between a cold start and a hot start.
