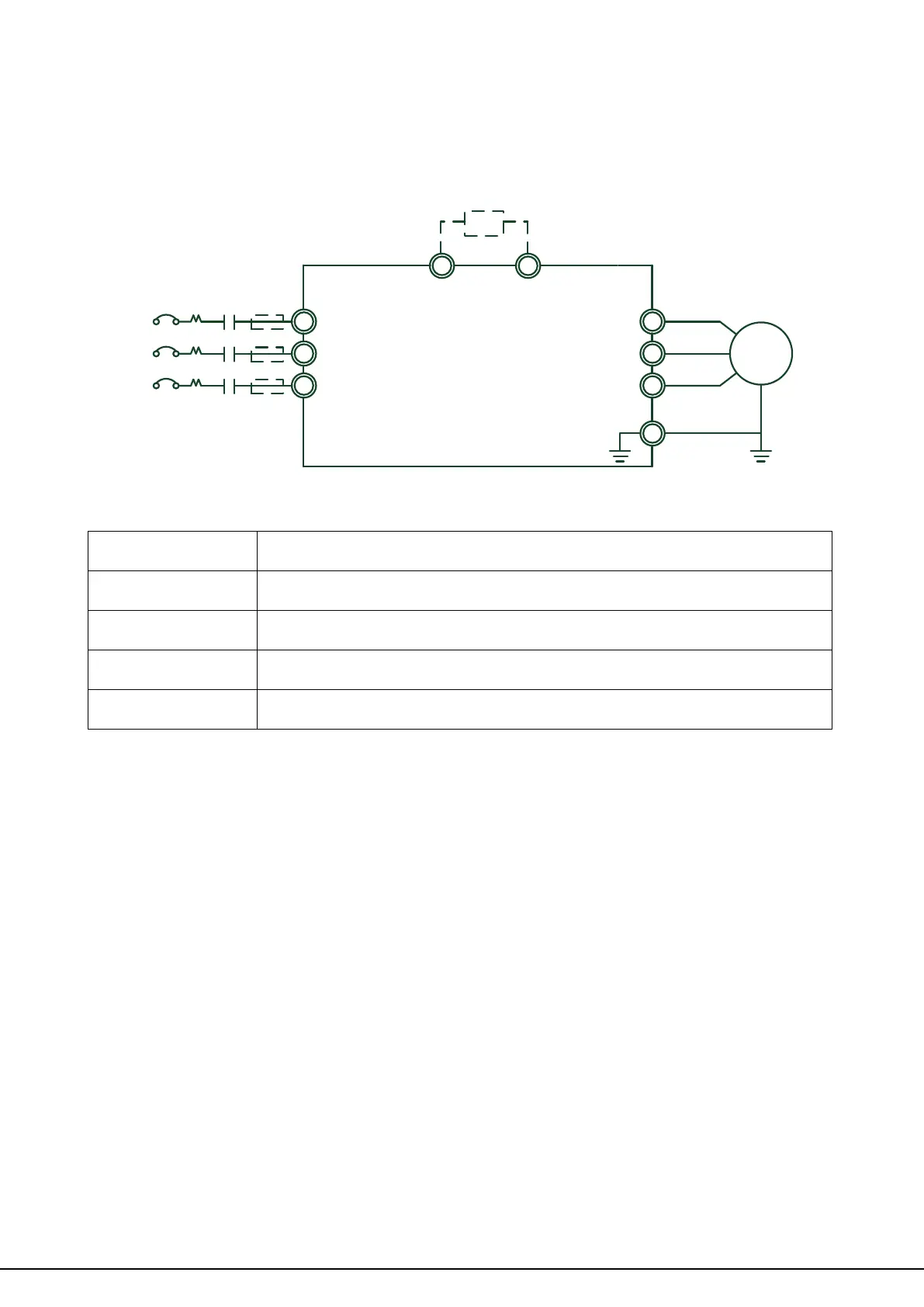

4.2.1 Main Circuit Terminal
R/L 1
S/L 2
T/L 3
U/T 1
V/T 2
W/T 3
E
-
+
IM
Braking Unit (option)
MCCB MC
Fast Acting Fuse
R
S
T
Table 4.2.1 Main Circuit Terminals
Terminal Name
Terminal Description
R/L1, S/L2, T/L3
Power input terminal
U/T1, V/T2, W/T3
Power output terminal
+, -
Braking unit terminal. Select option as per the specifications.
E
Ground terminal
4.2.2 Main Circuit Wiring
4.2.2.1 Power Input Terminal
 Install a molded case circuit breaker (MCCB) between three phase AC input power and
main circuit terminals R/L1, S/L2 and T/L3. A magnetic contactor (MC) in series
connection is also suggested so as to shut off the power by drive protection functions.
Install a R-C varistor on both ends of the MC.
 Ensure main circuit terminal screws are tightened to avoid vibration loosening the screws
which could cause electric sparks.
4.2.2.2 Power Output Terminal
 When connecting a noise filter at AC drive output terminals U/T1, V/T2 and W/T3, always
use an inductive L-filter. Do not install any power capacitor, L-C or R-C filter.
 Connect AC drive output terminals U/T1, V/T2 and W/T3 to motor input terminals U, V
