LiteOn EVO600043S1D5E20F User Manual

33

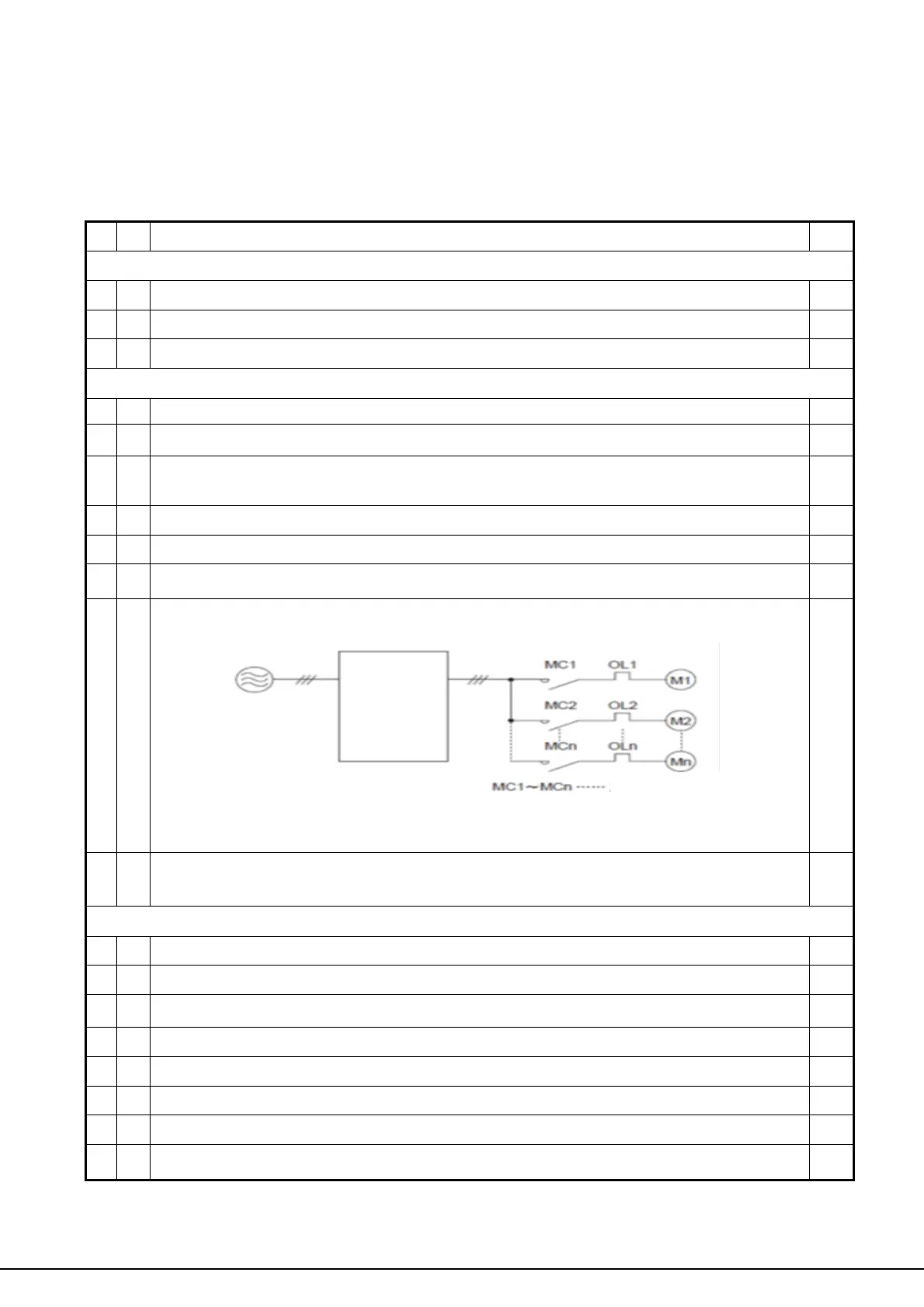

4.5 Wiring Checklist
Table 4.6 Wiring Checklist
□
No.
Item
Page
Power Supply Voltage and Output Voltage
□
1
Power supply voltage is within the voltage range of specified drive input.
□
2
The motor voltage matches the drive output specifications.
□
3
The drive rating matches the motor rating.
Main Circuit Wiring
□
4
An MCCB of proper specifications is connected between the drive and motor.
□
5
Power cables are correctly connected to drive input terminals R/L1, S/L2 and T/L3.
□
6
Motor terminals and drive terminals U/T1, V/T2 and W/T3 are in same phase
sequence. (Otherwise the motor will rotate reversely)
□
7
Power supply and motor power cable complies with electrician regulations.
□
8
The drive is properly grounded.
□
9
Drive terminal screws of the main circuit and ground are tightened.
□
10
An MC is installed for each motor if a single drive runs more than on motor.
Note: Set MC1 to MCn OFF before operating the drive. Do not switch MC1 to MCn
ON or OFF during run.
□
11
When using a braking resistor or braking unit, an MC is installed on the drive input
side and able to shut off the power to drive when overloaded.
Control Circuit Wiring
□
12
Twisted-pair cables are used for all drive control circuit wiring.
□
13
Shielded cables are connected to the terminals.
□
14
Options (if any) are properly installed.
□
15
No wiring mistakes.
□
16
Do not use a buzzer to check wiring.
□
17
The control circuit terminal screws are tightened.
□
18
No cable clippings or screws are left inside the drive enclosure.
□
19
Control circuit wiring and main circuit wiring are separated.
电源
变频器
电磁接触器
Magnetic Contactor
AC Drive
Power Supply
