92
Output Voltage (V)
Frequency (Hz)
d1-08 d1-06 d1-04 d1-10 d1-02
d1-09
d1-07
d1-05
d1-11
d1-03

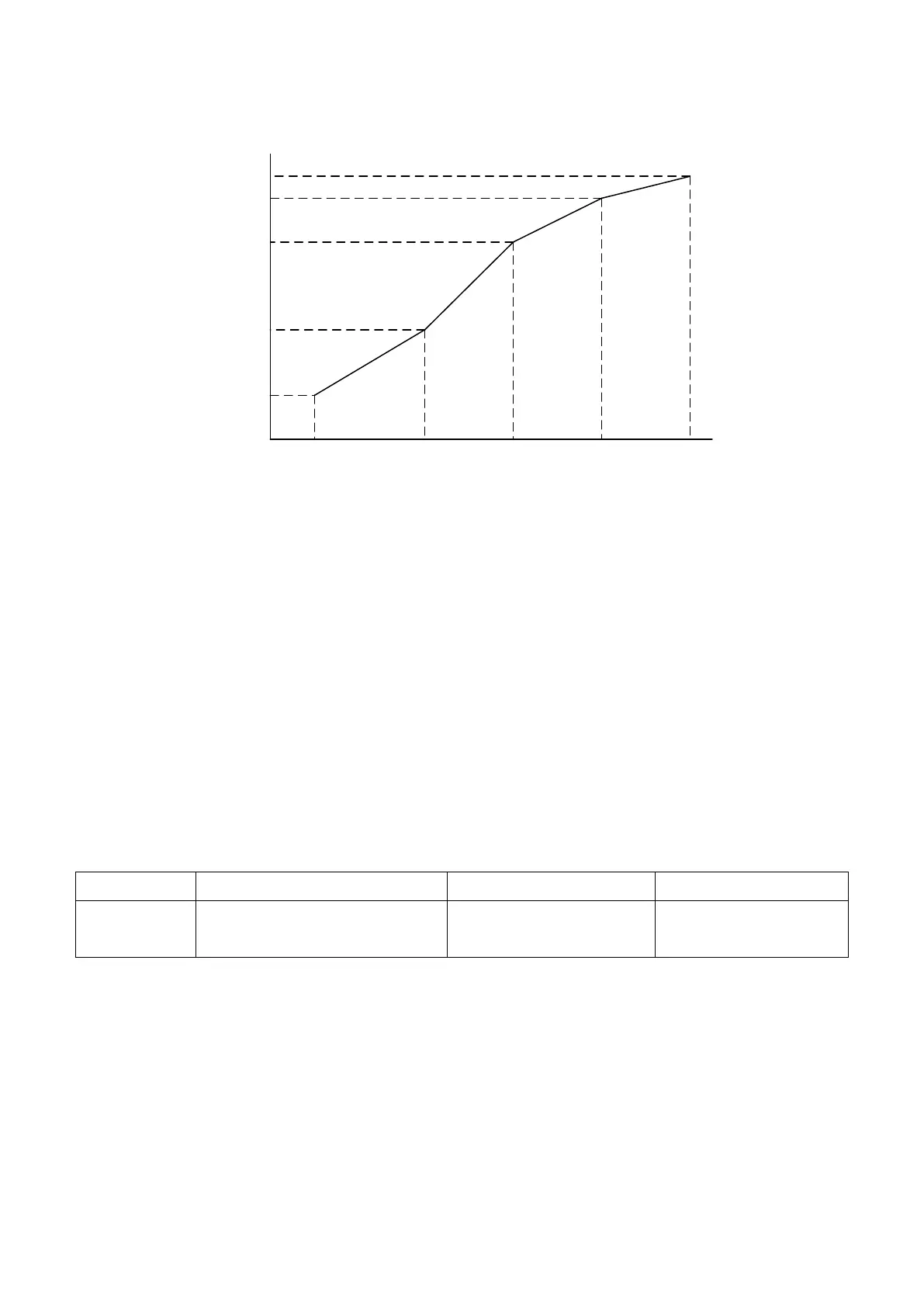

Figure 6.42 V/F Pattern
Note: When setting an user-defined V/F pattern, make sure d1-08 ≤ d1-06 < d1-04 ≤ d1-10 ≤ d1-02.
d2 Motor Parameters
d2 parameters set the important motor information required to perform optimum motor
control. In open-loop control methods, the motor parameters will be set automatically during
Auto-Tuning. If Auto-Tuning cannot be performed properly, set the parameters manually.
 d2- 00 Motor Rated Current
Sets the motor rated current according to the motor nameplate. This value determines the
motor protection for torque and will be set automatically during Auto-Tuning.
No.
Name
Setting Range
Default
d2-00
Motor Rated Current
10 to 200% of drive rated
current
Determined by o2-03,
Note:
1. It will be displayed in units of 0.1A.
2. If the d2-00 (Motor Rated Current) setting is lower than the d2-02 (Motor No-Load Current) setting, an oE02
(Parameter Range Setting Error) error will be triggered . Therefore properly set d2-02.
 d2- 01 Motor Rated Slip
Sets the motor rated slip. This value determines the slip compensation and will be set
automatically during Auto-Tuning.
