4.3.4 Ferrule-Type Terminals

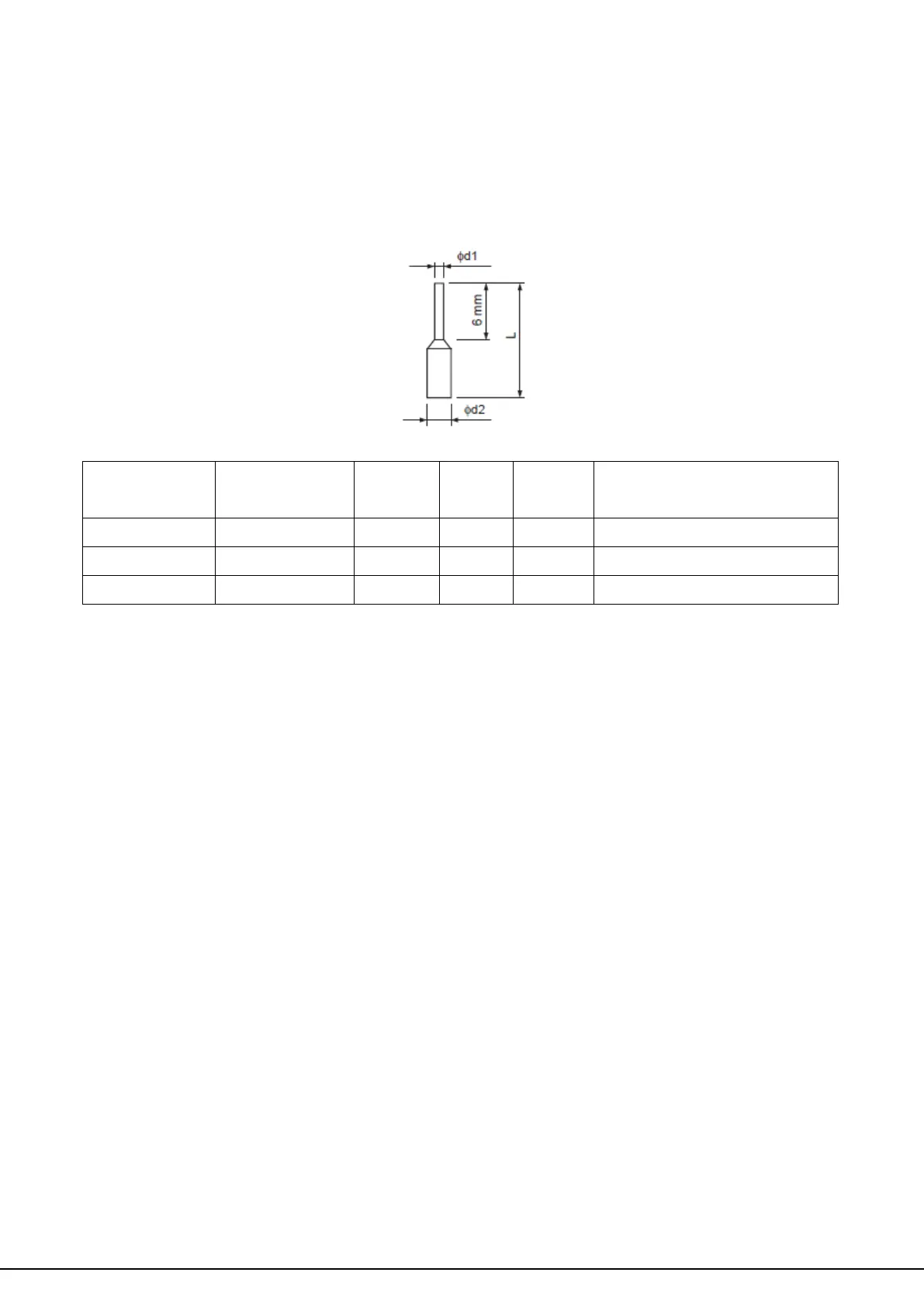

Always use ferrule-type terminals with insulated sleeves. Refer to Table 4.3.3.2. for dimensions.
In addition, crimping tool CRIMPFOXZA-3 manufactured by Phoenix Contact is recommended.
Table 4.3.3.2 Ferrule-Type Terminal Models and Sizes
Cable Size
mm2 ( AWG)
Type
L
( mm)
d1
( mm)
d2
( mm)
Manufacturer
0.25 （24）
AI 0.25-6YE
10.5
0.8
2
Phoenix Contact
0.34（22）
AI 0.34-6TQ
10.5
0.8
2
Phoenix Contact
0.5 （20）
AI 0.56-WH
14
1.1
2.5
Phoenix Contact
