LiteOn EVO600043S2D2E20F User Manual

49
b2-03
(DC Braking Time at Stop)
ON
OFF
d1-08 Min. Output
Frequency
b2-00 Zero Speed
Holding Start Frequency
Deceleration Time
DC Braking
Run Command
Output
Frequency

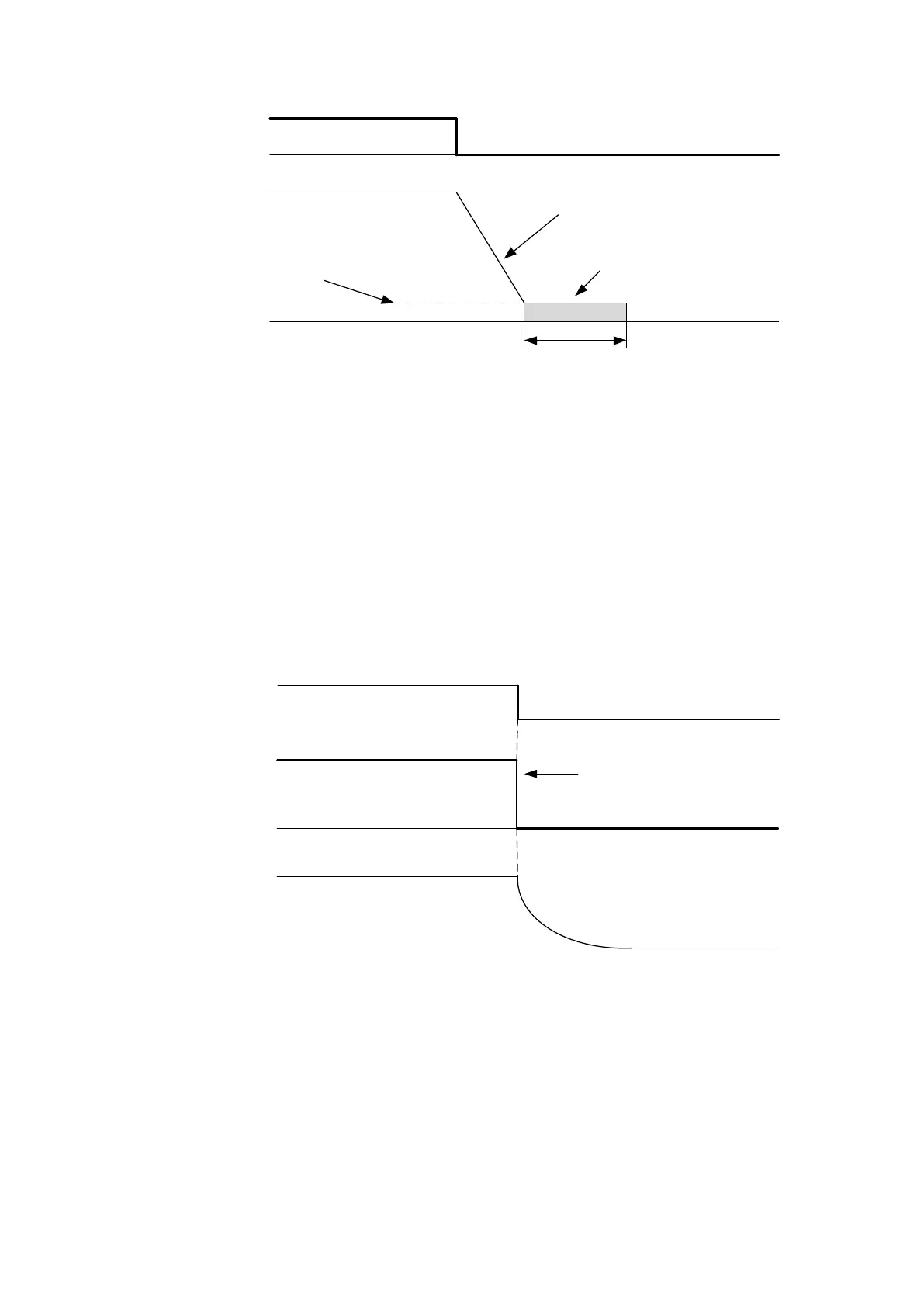

Figure 6.3 Ramp to Stop
Note: If the b2-00 value is smaller than the d1-08 value, DC Braking is enabled when the output frequency falls
below the d1-08 value.
1 : Coast to Stop
When a Stop command is given, the drive will shut off its output. Then the motor will coast to
stop for the time determined by the inertia and friction.
ON
OFF
Run command
Output frequency
Motor speed
Drive output shut off
Figure 6.5 Coast to Stop
Note: After a Stop command is given, the drive will ignore any Run command entered until the minimum baseblock
time set to P2-01. Do not enter Run command until the motor has completely stopped. To restart the motor before
the complete stop, use DC braking at start (Refer to b2-02) or Speed Search (Refer to b3).
2 : DC Braking to Stop
