Frequency Command
Time
L1-00
L1-01
L1-02
L1-03
L1-04
L1-05
L1-06
L1-07
L1-08
L1-13
L1-14
L1-15
L1-16
Run/Stop Forward
( Reverse)
Multi-Step Speed
Command 1
Multi-Step Speed
Command 2
Multi-Step Speed
Command 3
Multi-Step Speed
Command 4
Multi-Step Speed
Command 5
ON ON ON ON ON ON
ON ON ON
ON ON
ON
ON

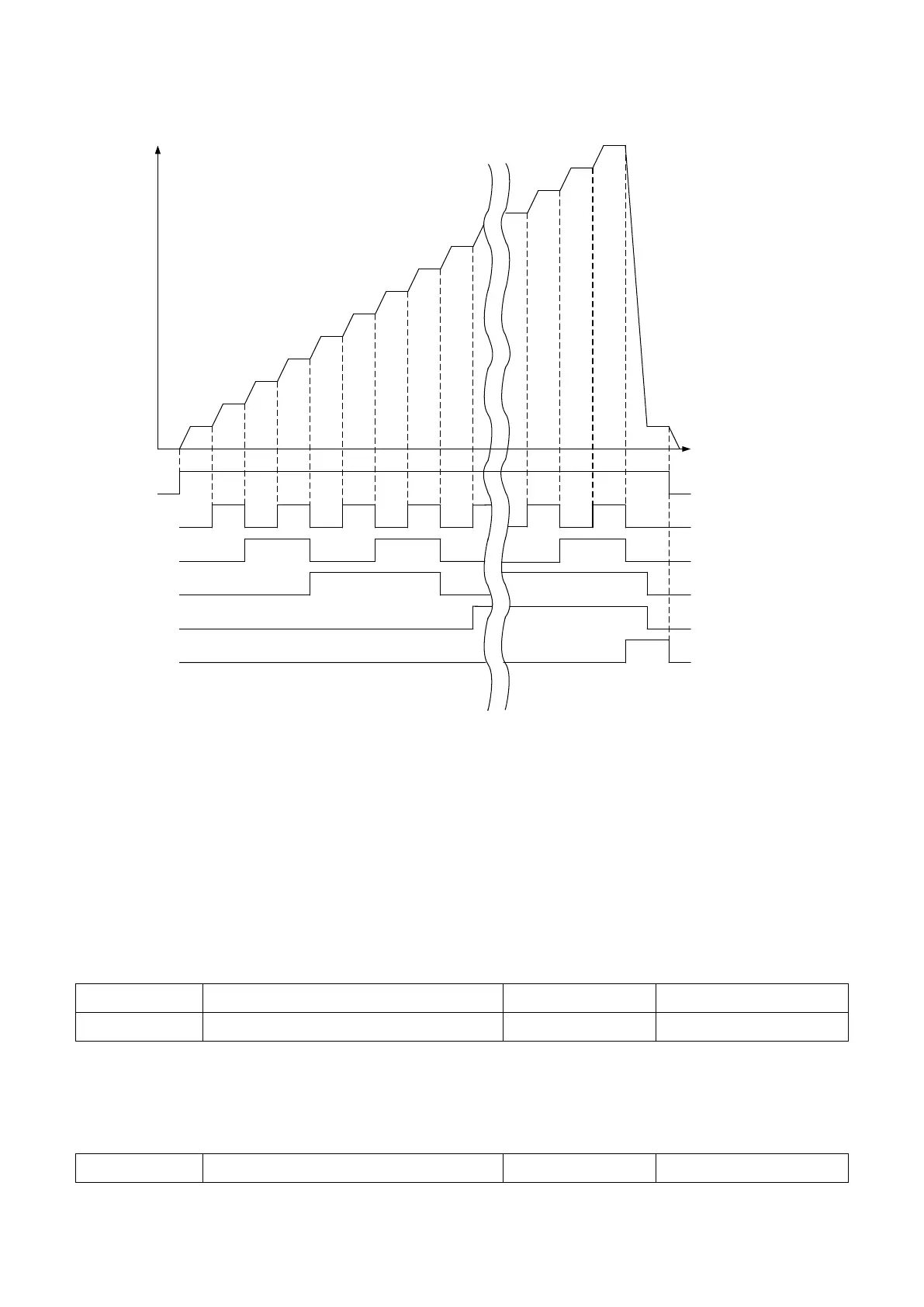

Figure 6.35 Jog Frequency Command Operation
L2 Frequency Upper / Lower Limit
Sets the upper and lower limits to make sure the motor runs in the range set to prevent
resonance or machinery damage.
 L2-00 Frequency Command Upper Limit
Sets the upper limit as a percentage of the maximum output frequency. Even if a frequency
command higher than this level is entered, the drive will run at the limit set to this parameter.
No.
Name
Setting Range
Default
L2-00
Frequency Command Upper Limit
0.0 to 110.0 %
100.0 %
 L2-01 Frequency Command Lower Limit
Sets the lower limit as a percentage of the maximum output frequency. Even if a frequency
command lower than this level is entered, the drive will run at the limit set to this parameter.
No.
Name
Setting Range
Default
