Page 31 Chapter 7: Trouble Shooting Steps

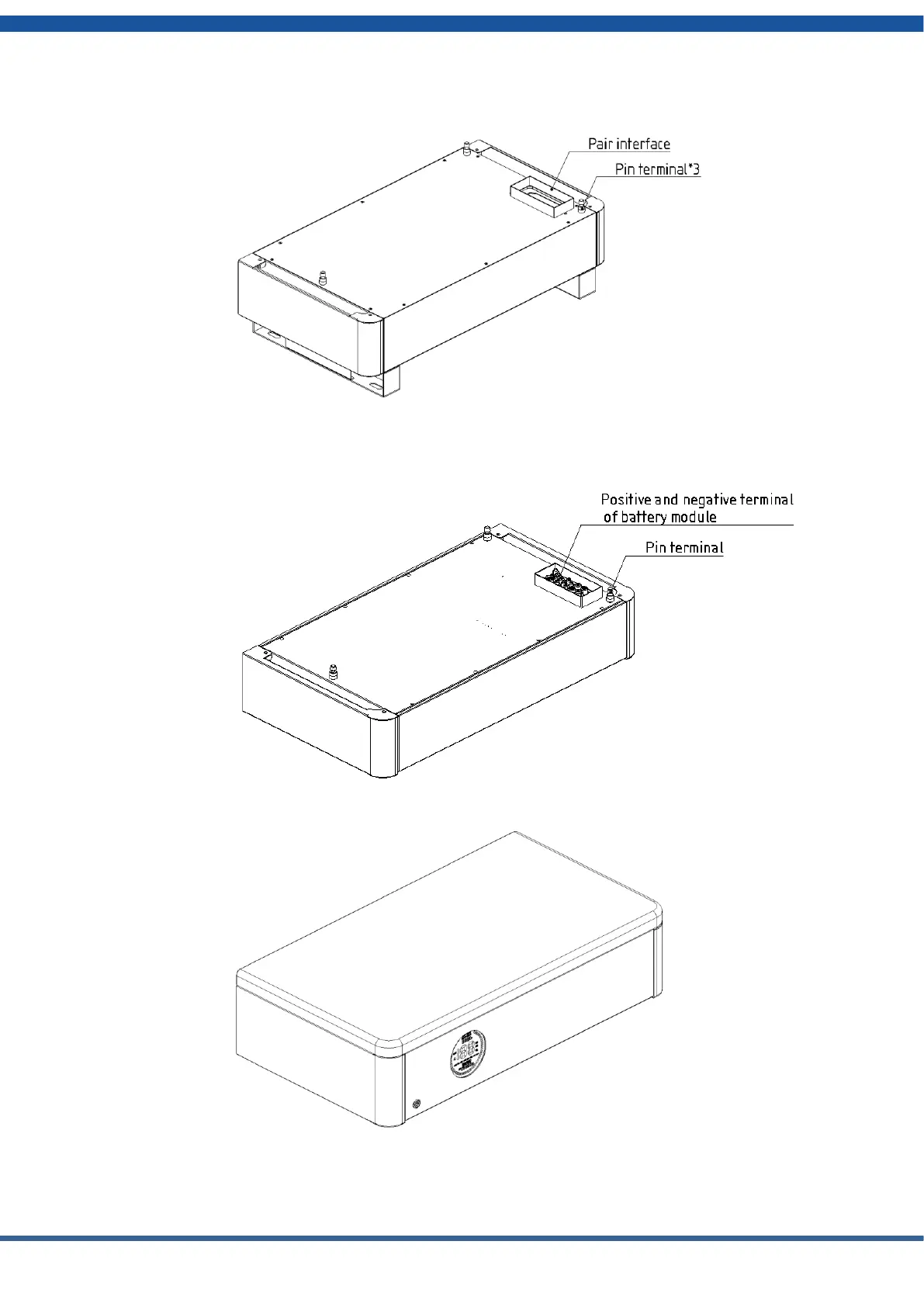

(1) Place the system base at the bottom
(2) Stack the battery modules one by one. The guide pins will make sure that the connectors
mate properly.
(3) Finally, place the main control module at the top of the system
(4) When the stack is complete set the battery module addresses as described in Section 2.
Turn on the power switch on each module, beginning with the one on the bottom.
