5) press the enter the parameter setting state, the first digit flashing, set of numerical methods
with the same password input method.

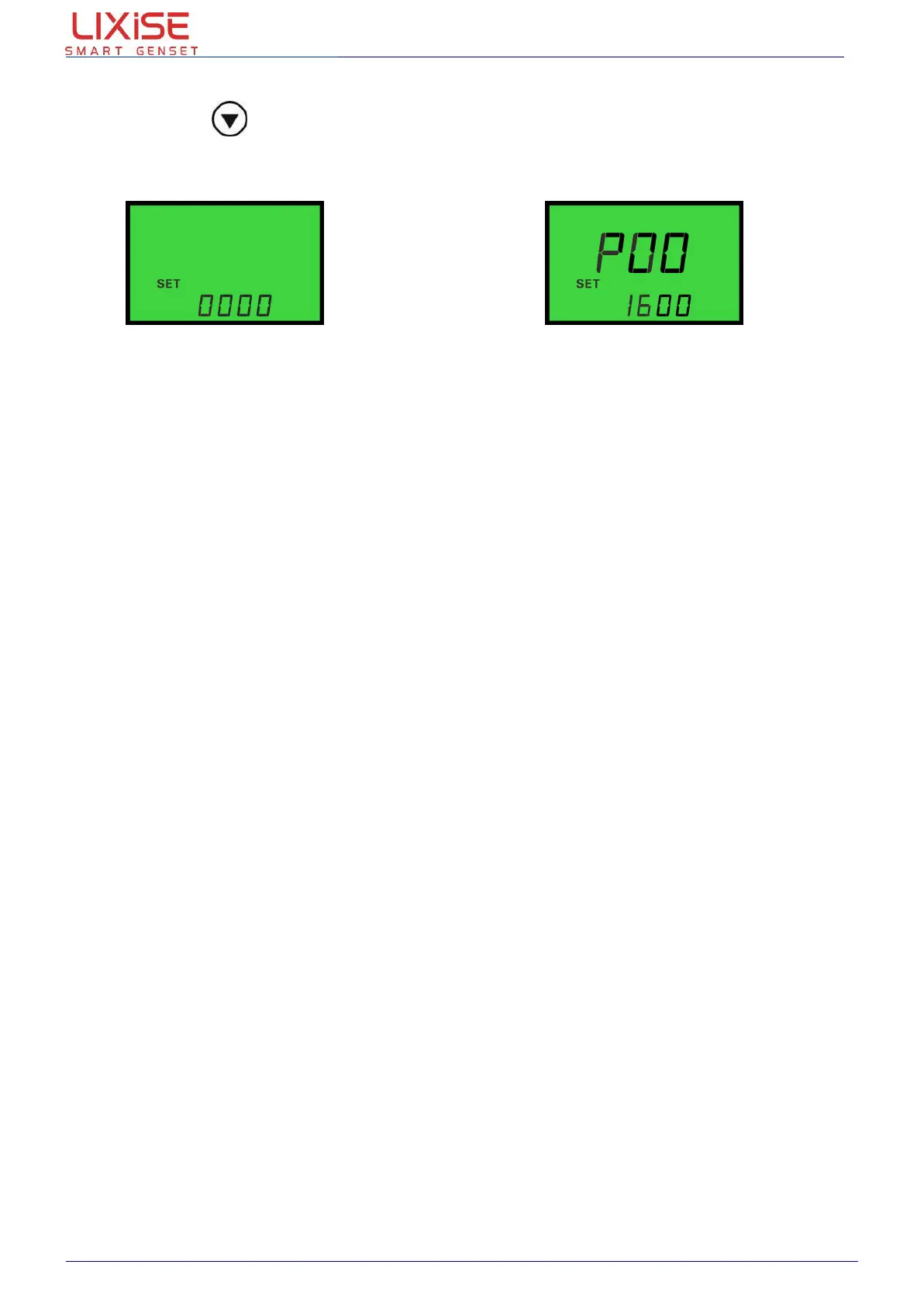

Password input interface： Parameter Settings interface：

Matters needing attention
：
1) Please change the controller parameters when generator is in standby mode only (e. g. Crank
disconnect conditions selection, digital input, digital output, various delay), otherwise, shutdown
and other abnormal conditions may occurs.
2)When set each parameter, must be within the allowed range, otherwise will not be able to change
the parameters.
3) Over voltage set value must be higher than under voltage set value, otherwise the controller will
not save the data.
4)Over speed set value must be higher than under speed set value, otherwise the controller will not
save the data.
5) Please set the generator frequency value as low as possible when cranking, in order to make the
starter be separated quickly as soon as possible.
6)Set the serial number with reference to the front “7.1 Parameter setting list (Table I)”.
7)In setting fuel level sensor type when, the programmable output type is set to 0, set the fuel level
sensor type again.
﹡NOTE 1：In the process of setting up, any time button will interrupt parameter settings.
﹡NOTE 2：In manual mode, startup success condition configuration：(2 magnetic sensor+generate
electricity) or (5 generate electricity + magnetic sensor +oil pressure), power frequency
and speed is not zero, press the start button and flip keys at the same time (0.5s),
controller according to the power frequency and generator series automatic generator
teeth.
10. TERMINAL
 Terminal 1（B-）: connect to the cathode of battery.
 Terminal 2 (B+): connect to the anode of battery.
 Terminal 3 (Em. stop input): emergent stop input, connect to (B+) is active.
 Terminal 4 (Fuel Output): Fuel Output, (B+,1A).
 Terminal 5 (Start Output): Start Output, (B+, 1A).
 Terminal 6(Remote Start Input): Remote Start Input, connect to (B-) is active.

Terminal 7(Configurable Input)
：
Programmable input port, By setting the input signal
switch quantity or fuel level sensor signal, switch input connect to (B-) is active.

Terminal 8(LOP Input): Low oil pressure input, switch input connect to (B-) is active.
 Terminal 9(HWT. Input): High temperature input,switch input connect to (B-) is active.
