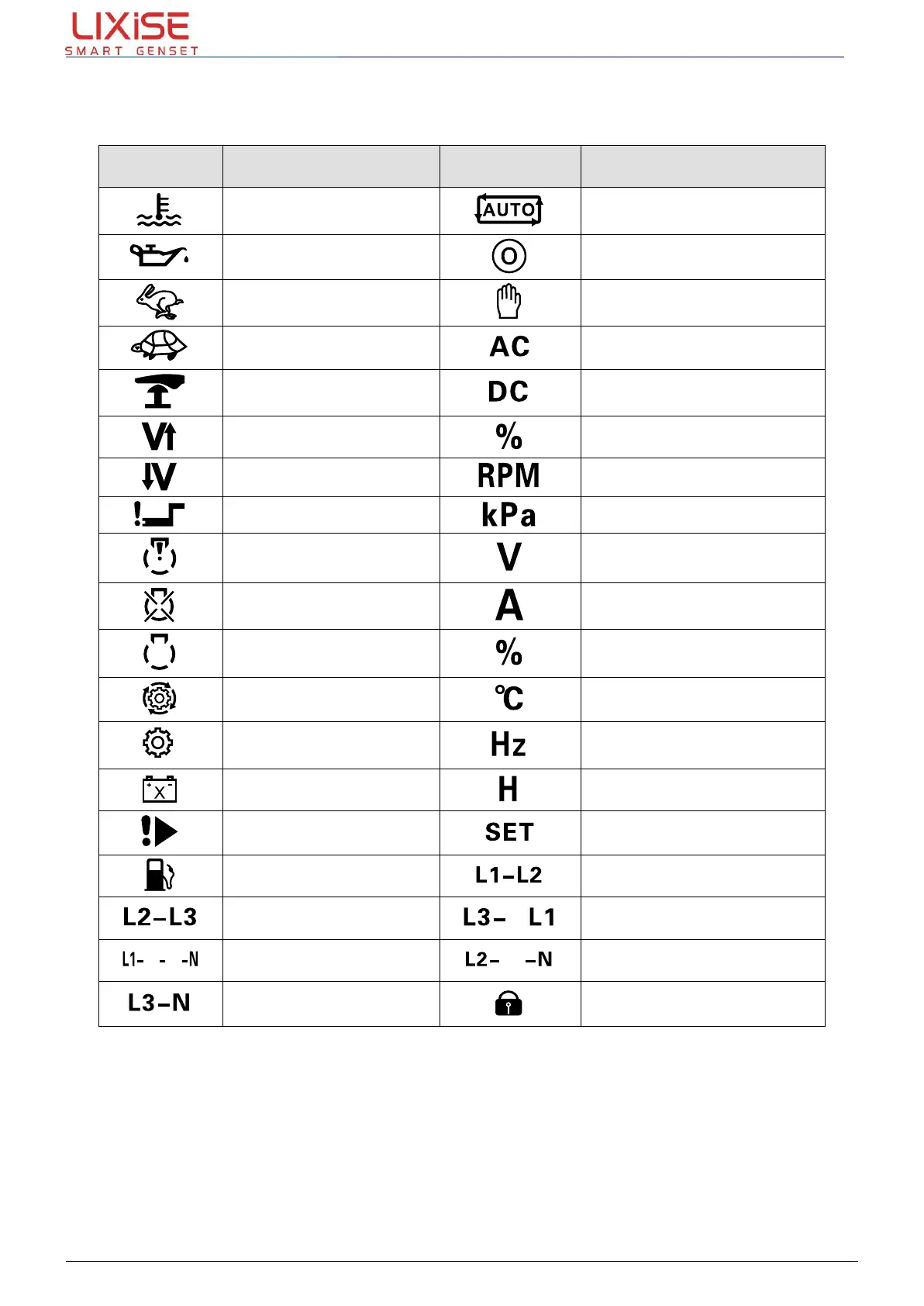

5.2. LED ICON
5.3. DISPLAY DESCRIPTION
Generate electricity:Phase voltage Ua,Frequency F Battery voltage,Engine speed
Symbol
Defined
Symbol
Defined
High Temperature
Automatic state
Low Oil Press
Stop state
Over Speed
Manual states
Under speed
Generator voltage
Emergency Stop
Battery voltage
High voltage
Amount of fuel
Low voltage
Speed units (rpm/minute)
Over Crank
Oil pressure unit
Warning
Voltage unit
Stop alert
Current unit
Stop Failure
Fuel level units ( Percentage )
Rotation during normal
operation
Temperature unit
flywheel tooth number
Frequency unit
Battery voltage is
abnormal
Total running time
External alarm
Parameter setup instructions
Low fuel level
L1-L2 Line voltage
L2-L3 Line voltage
L3-L1 Line voltage
L1 Phase voltage
L2 Phase voltage
L3 Phase voltage
Panel lock（ Close button
function
）
