LIXiSE LXC706 Series User Manual

LXC706 Series Genset Controller
Dongguan Tuancheng Automation Equipment Co.,Ltd.
LXC706 Product User Manual Dongguan Tuancheng Automation Equipment Co.,Ltd.
: +86-769-23836636 : F:+86-769-23166296 : www.lixise.com
Page
16
of
17

Terminal 10
（
L
）、
11
（
N
）：
Alternator Input.
 Terminal 12(Idle Output)：Idle speed control output port (B+,1A).
 Terminal 13(Stop Output)：ETS output (B+ ,1A).
 Terminal 14（Configurable Output3）：Configurable output, (B+, 1A).
 Terminal 15（ D+）：Connect to charging starter’s D+ terminal. If there is no this terminal,
then be hang up.
 Terminal 16 (Magnetic pickup)：Magnetic head signal input,suggest using the shielded
wire.

USB Interface
：
Controller directly through the USB line connected to the computer for
parametric programming.

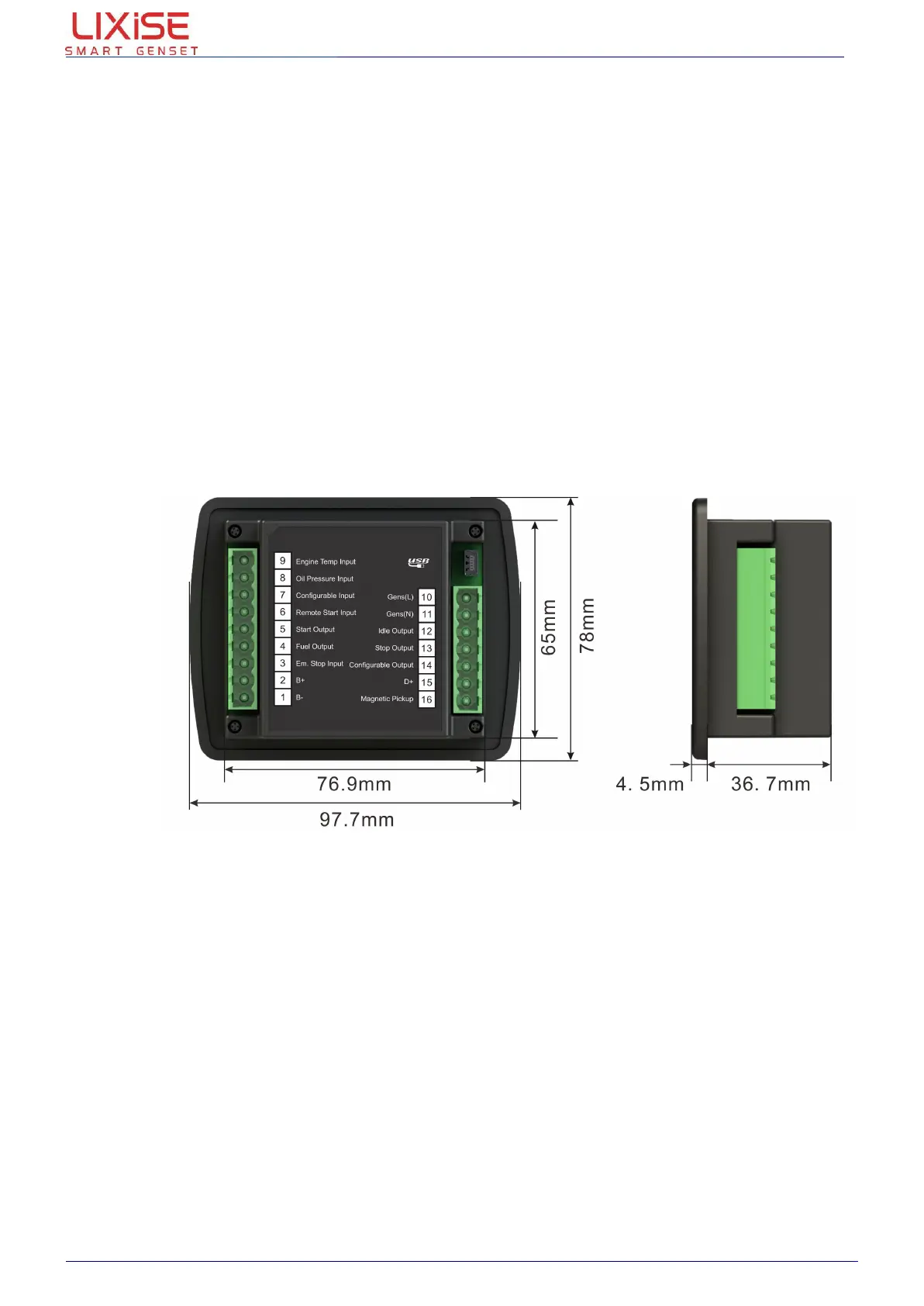

11. CASE DIMENSIONS
(HOLE: 78mm*66mm)
