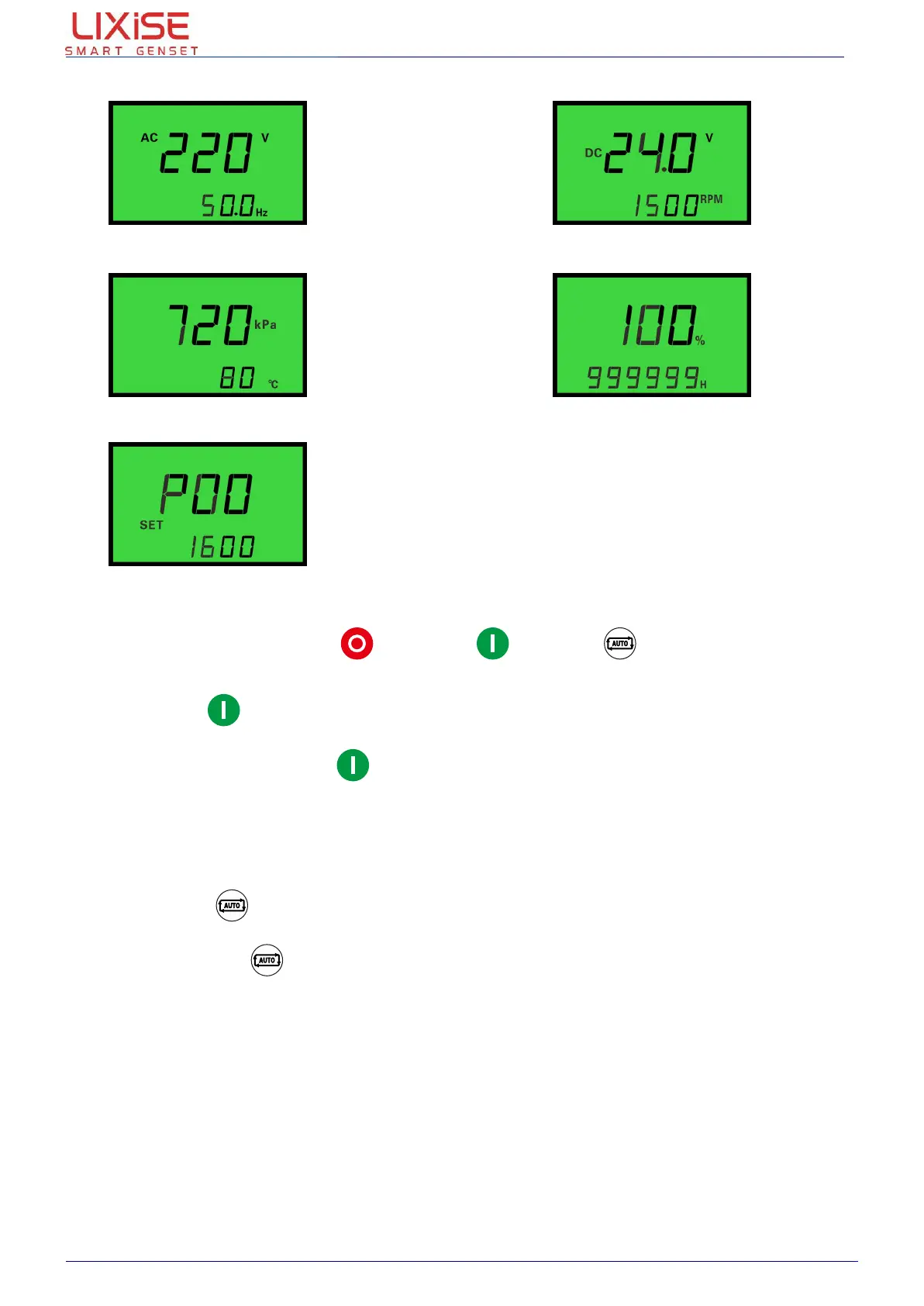

Oil pressure,Water temperature Liquid level %, Total running time
Parameter Settings
5.4. OPERATION
Module has three states: stop state 、man state 、auto state .
5.4.1. Man Start
When push Man start button ,preheat will first output, and start preheat delay, when preheat
delay is end, fuel output 1 second, preheat output will stop, and crank output is start.Here engine
will start, when crank successfully, crank output stop. Then engine comes into the safe time. When
the safe time is end, then engine comes into the idle time. When the safe time is end, then idle
output is out and engine will run at full tilt.
5.4.2. Auto State
 When push button, the module will enter automatic state. Here if remote start input is
active (connect to B-), the engine will start after the delay of start engine. Preheat will first
output, and start preheat delay, when preheat delay is end, fuel output 1 second, preheat
output will stop, and crank output is start. Here engine will start, when crank successfully,
crank output stop. Then engine enter the safe delay. When the safe delay is end, then
engine enter the idle delay. When the safe delay is end, then idle relay is close and genset
raise high speed.
 When remote start input is inactive, the engine enter the idle process after the delay of
engine stop, idle relay disconnect, fuel relays output after the idle delay, ETS solenoid output,
genset will automatically stop, ETS solenoid disconnect when genset stop steady.
