Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 240
Parameter Description

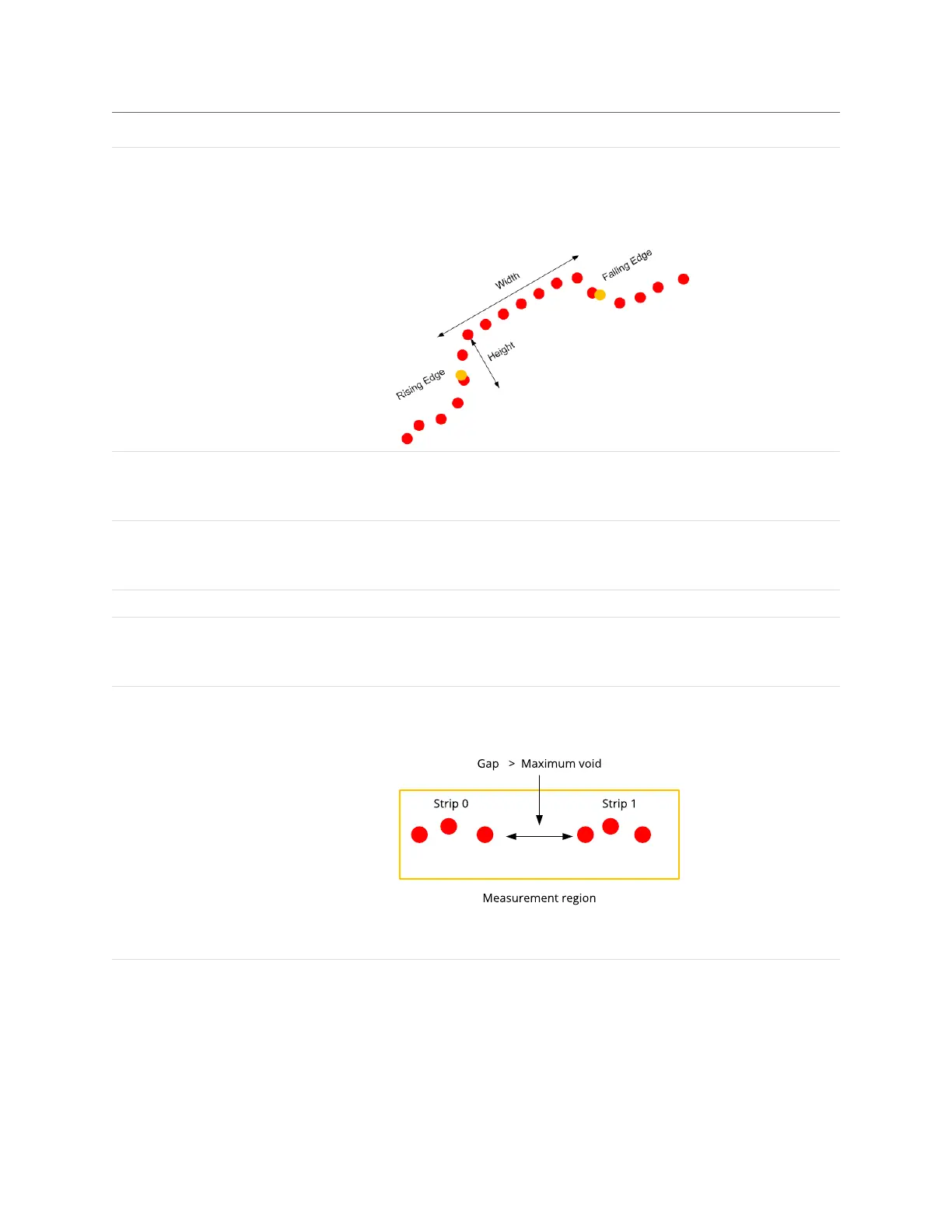

Tilt Enabled Enables/disables tilt correction.
The strip may be tilted with respect to the sensor's coordinate X axis. This can be caused by
conveyor vibration. If the Tilt option is enabled, the tool will report the width and height
measurements following the tilt angle of the strip.
Support Width Specifies the width of the region around the edges from which the data is used to calculate the
step change. See "Strip Step Edge Definitions" in the Gocator Measurement Tool Technical Manual
on how this parameter is used by different base types.
Transition Width Specifies the nominal width needed to make the transition from the base to the strip. See
"Strip Step Edge Definitions" in the Gocator Measurement Tool Technical Manual on how this
parameter is used by different base types.
Min Width Specifies the minimum width for a strip to be considered valid.
Min Height Specifies the minimum deviation from the strip base. See "Strip Step Edge Definitions" in the
Gocator Measurement Tool Technical Manual on how this parameter is used for different base
types.
Max Void Width The maximum width of missing data allowed for the data to be considered as part of a strip
when Void is selected in the Left or Right parameter. This value must be smaller than the edge
Support Width.
When occlusion and exposure causes data drops, users should use the gap filling function to
fill the gaps. See Gap Filling on page 131 for information.
