19
Connections
Twin pipe
Concentric
CP-M+
150
CP-M+
180
CP-M+
150
CP-M+
180
AI
Air Inlet
Ø130
Ø130
Ø150
Ø150
FG
Flue Gas
Ø130
Ø130
Ø100
Ø100
F
Flow
R 1 ½” (male)
C
Condensate
Flexible hose Ø 25/21 x 750 mm
R
Return
R 1 ½” (male)
G
Gas
R 1” (male)

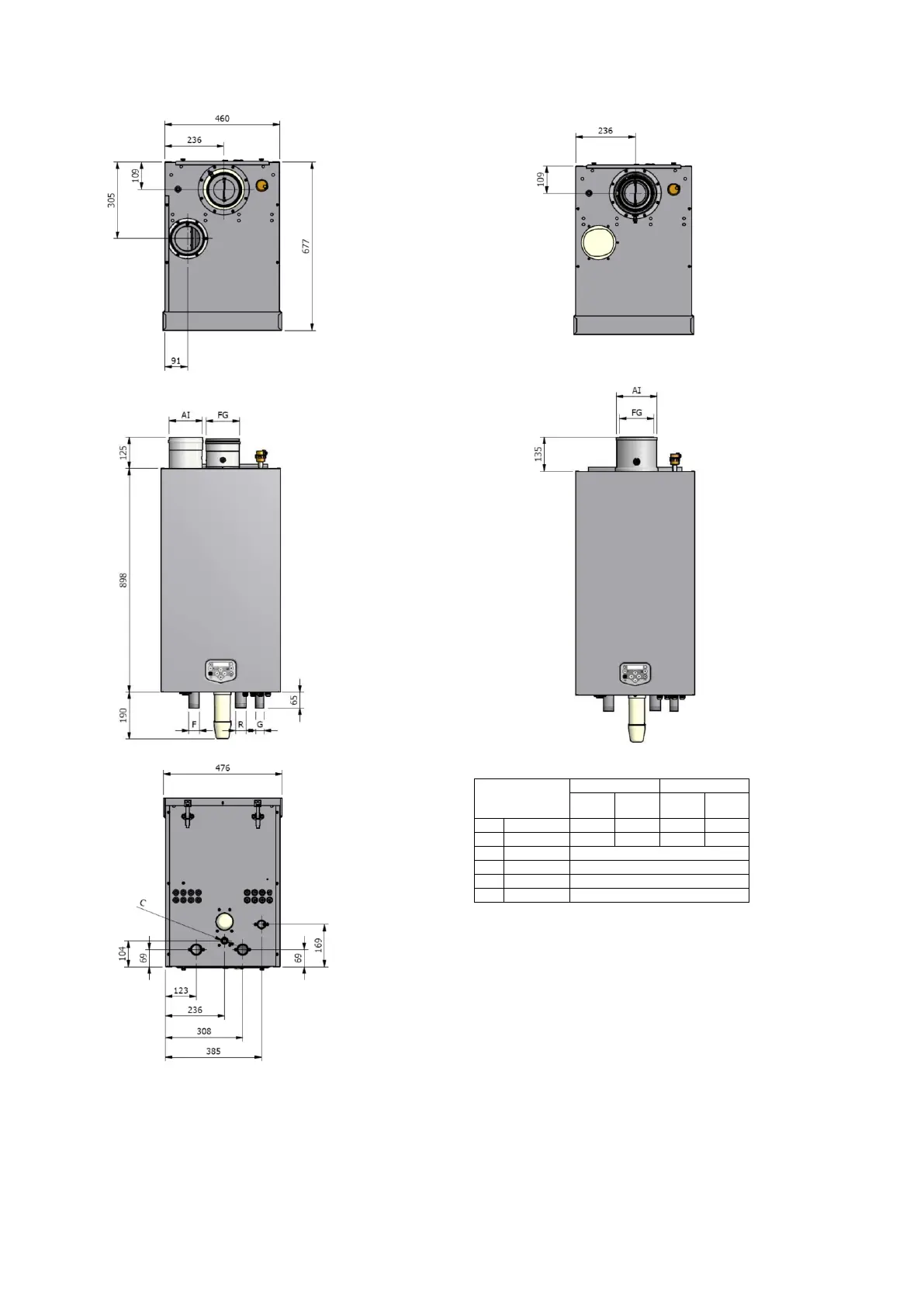

FIGURE 3.2 DIMENSIONS CP-M+150 & 180
