Lockly Vision - Installation Overview and Parts List; Parts List

Lockly Vision can be fitted for both right swing doors and left swing doors.

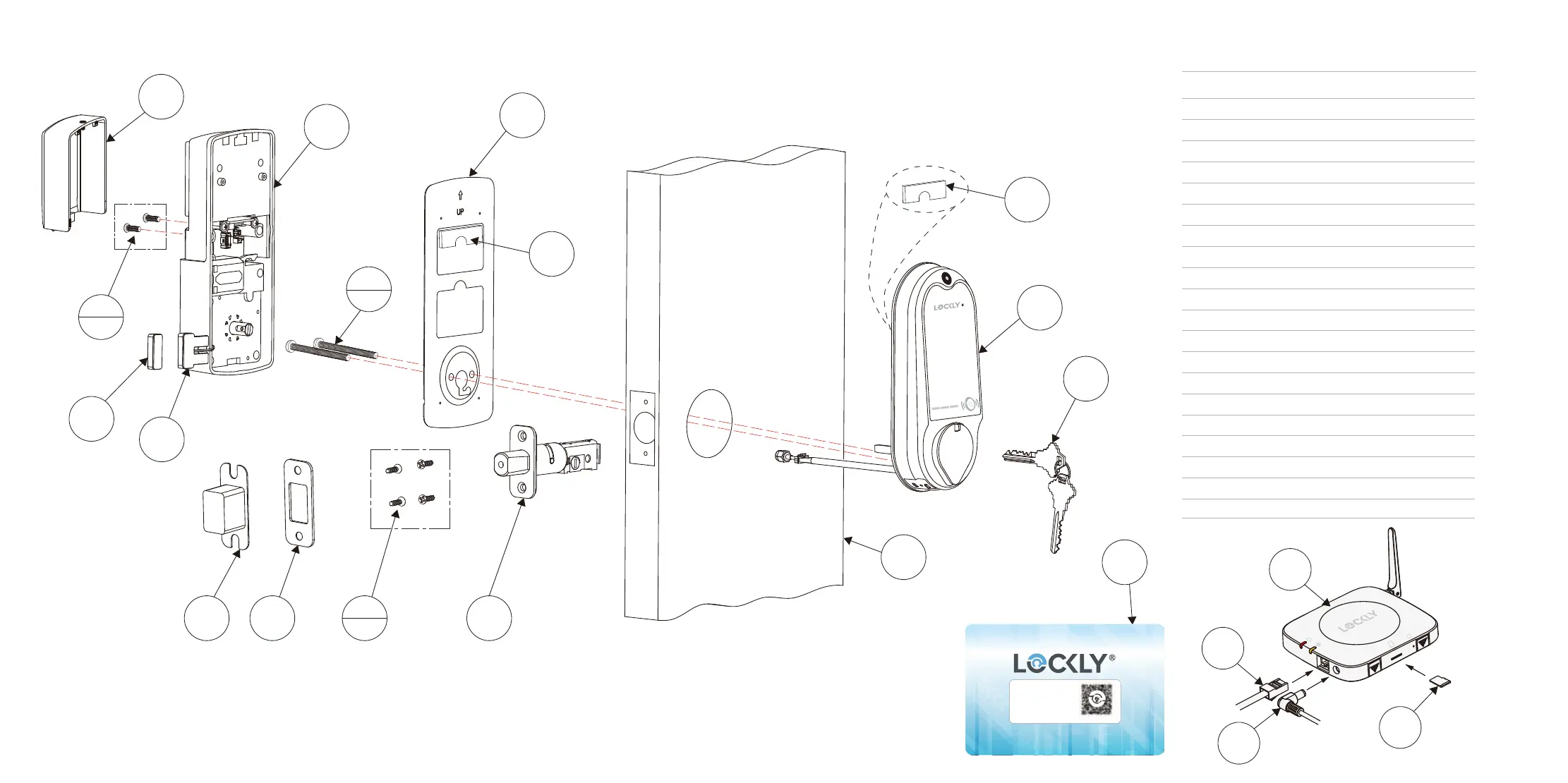

INSTALLATION OVERVIEW AND PARTS LIST
A
B
S
U
T
C
D
G
I
H
2x
J
K
4x
L
N
P
Q
E
E
F
2x
Parts List
Labeled As Description
A Keys
B Exterior Assembly
C Exterior
D Mounting Plate
E Adhesive
F PM5×60mm Screw
G Interior Assembly
H PM4*12MM Screw
I Battery Cover
J Deadbolt
K KA4*20MM Screw
L
Strike Plate
N Dust Box
P
Wired Sensor
Q
R
S
T
Sensor Magnet
Vision Connect
LAN Cable
Power Plug
U
TF Card
V
Activation Card
R
Adhesive TAPE
Adhesive TAPE
V
