Lockly Vision - Step 1: Adjust Deadbolt and Install; Deadbolt Length Adjustment

4

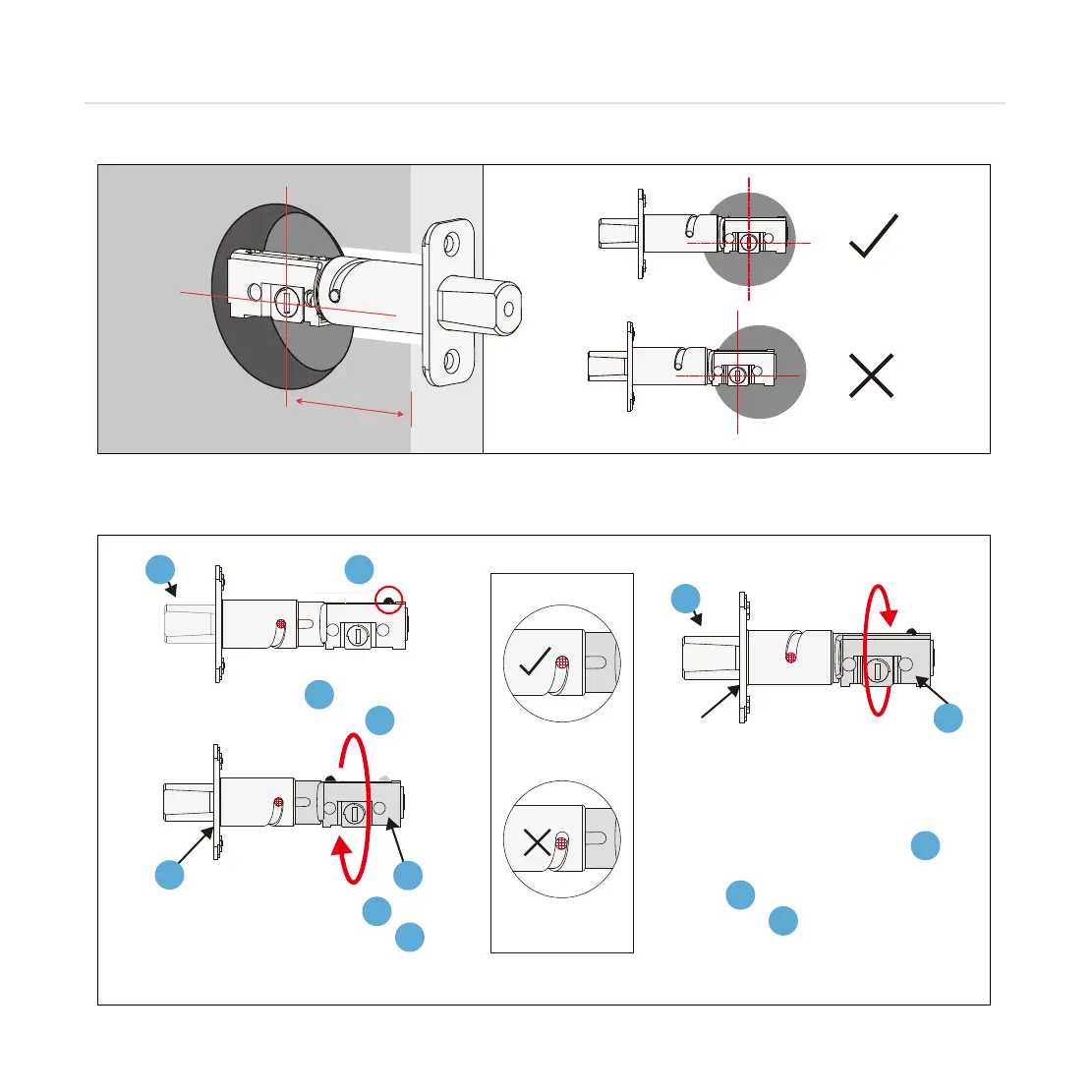

Deadbolt slot must align to the center of the door hole. Adjust as shown if needed.
The deadbolt comes set to 2-3/4" (70mm). Adjust length to 2-3/8” (60mm) if necessary.
(wear gloves to protect from possible pinching).
Hold the metal plate and
twist the deadbolt body
clockwise till it snaps to 2-3/8"
Deadbolt comes set
at 2-3/4" (70mm). To return to
default, while deadbolt is
extended, hold the metal
plate and twist the dead-
bolt body counter-clock-
wise till it snaps to 2-3/4"
Push the crank to
extend the deadbolt
ADJUST DEADBOLT AND INSTALL
Step 1
B
B
B
B
A
C
C
C
D
D
D
D
A
2-3/4" (70mm)
or 2-3/8” (60mm)
