Lockly Vision - Step 2: Installing Exterior Assembly; Exterior Assembly Alignment; Securing the Exterior Assembly

INSTALLING EXTERIOR ASSEMBLY (B)
6
Check the exterior assembly (B) align-
ment to door hole and deadbolt before
peeling off film on adhesive strips.

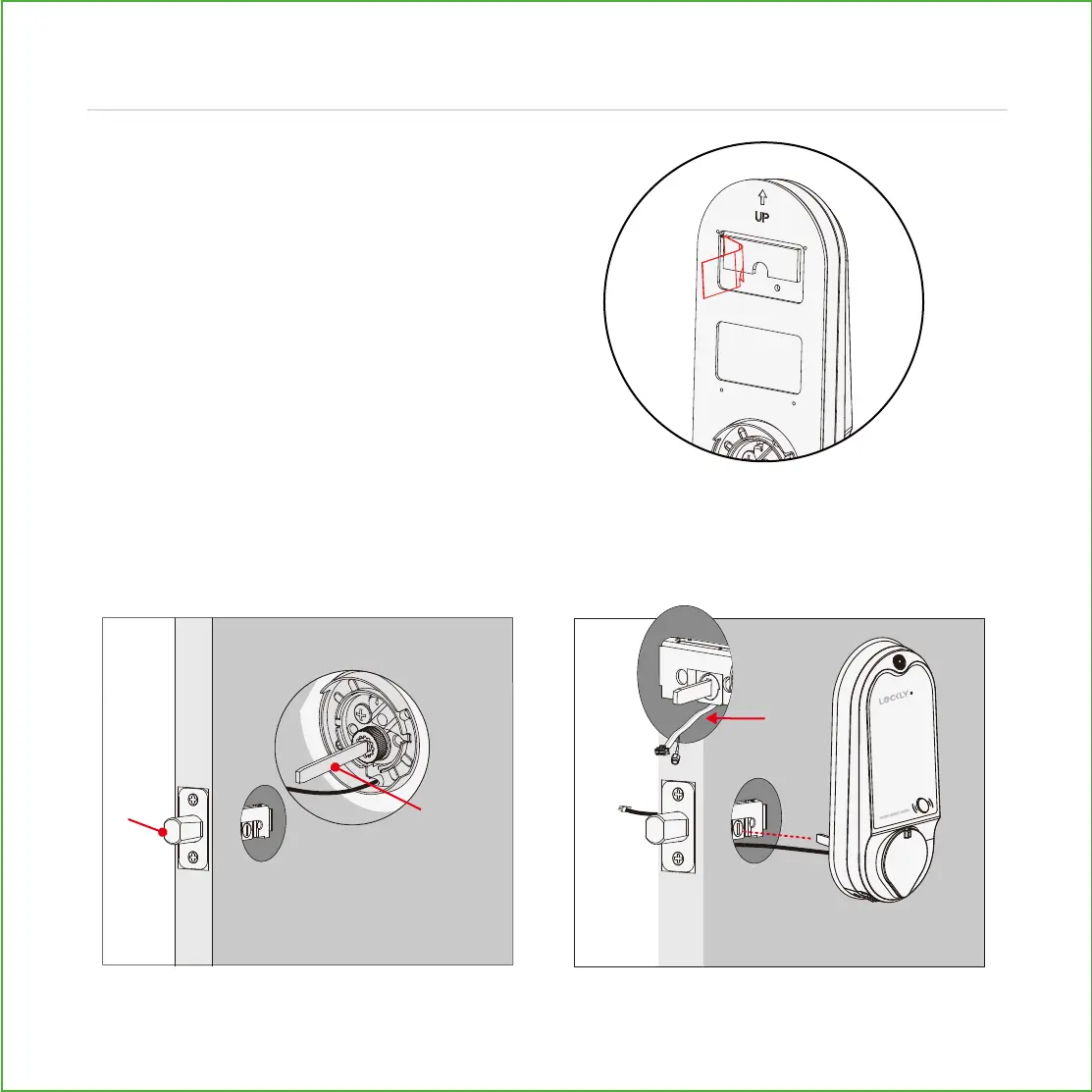

Peel film from adhesive strips and make sure torque blade is in the vertical position with
the deadbolt extended. Place assembly and torque blade through the deadbolt slot
and guide connection cables through the cross-bore hole under the deadbolt as shown.
Complete mounting by aligning and securing until flush to exterior door surface.
Step 2
Vertical
Extended
EXTERIOR VIEW
Under
