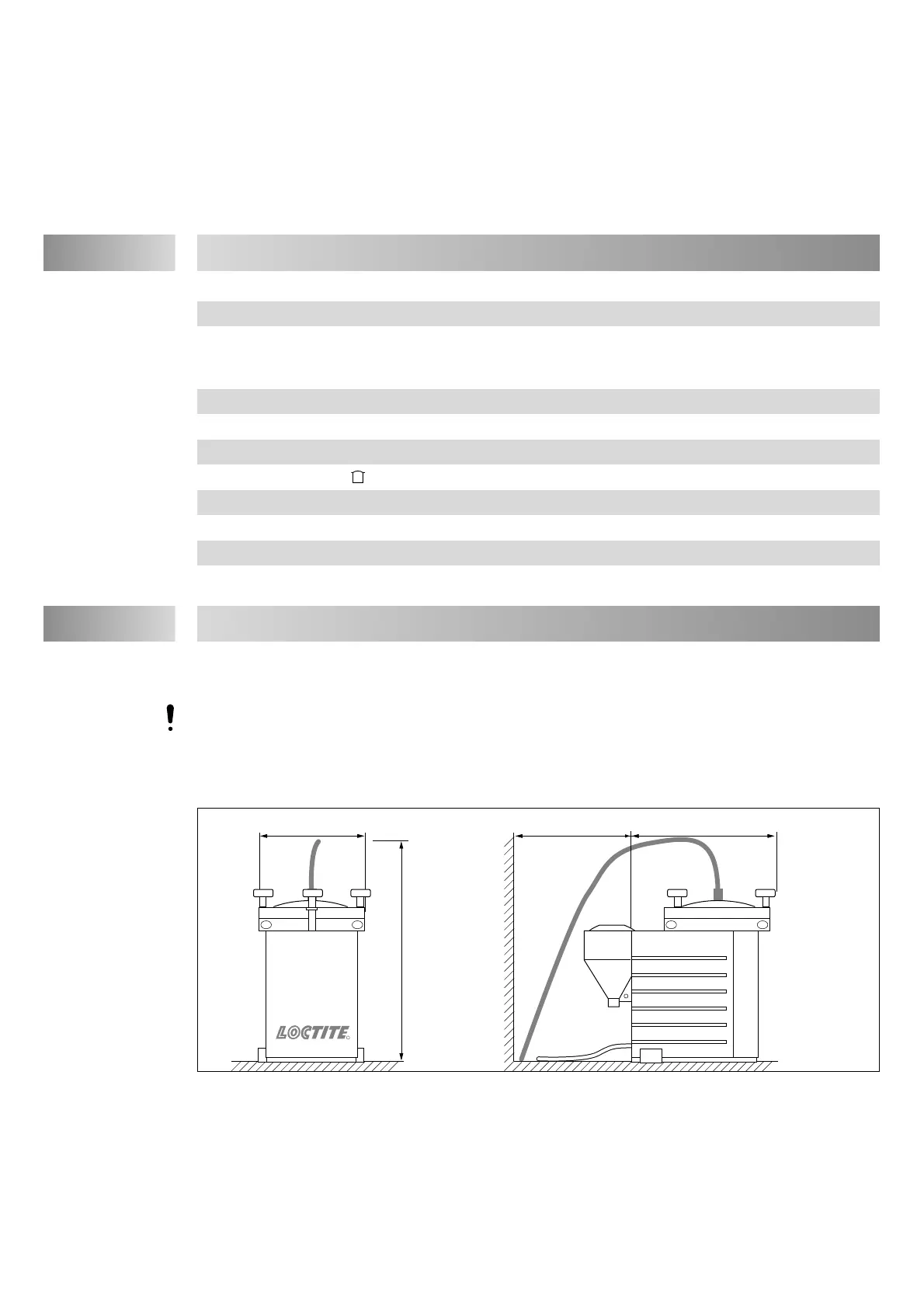

Loctite 97105 - Environmental Conditions; Space Requirements; 3 Technical Data; 4 Installation

4.1 Environmental Conditions
– Non-condensing humidity
– No splash water
4.2 Space Requirements
160 (210) mm
235 (270) mm
400 (450)mm
min 150 mm
R
Installation4
28
Pneumatic supply min. 4 bar (58 psi); max. 8 bar (116 psi)
Quality Filtered 10 µm, oil-free, non-condensing
If the required quality is not achieved,
install a LOCTITE filter regulator Accessory Order No. 97120
Over-pressure safety (rupture disc) min. 9 bar (130.5 psi); max. 12,5 bar (174 psi)
Tightening torque of the rupture disc max. 20 Nm
Pneumatic hose size External dia. 6 mm
Pneumatic hose size , coaxial External dia. 9,5 mm, TW09 B-20, Co. SMC
Dimensions 0,5 l / 2 l reservoir W x H x D: 170 x 255 x 315 mm / 205 x 335 x 360 mm
Operating temperature +10 °C to +40 °C (+50 °F to +104 °F)
Storage temperature –10 °C to +60 °C (+14 °F to +140 °F)
Weight 97105 (97106) / 97107 (97108) 3,55 kg (3,75 kg) / 6,30 kg ( 6,50 kg)
+0,05
–0,10
Technical Data 3
