Loewe Connect ID 46 DR+ - Connections rear side of the device; Rear Panel Connections Diagram

Connect ID 40-55 DR+
User guide
11
1
SPDIF OUT - Digital audio output
2
SPDIF IN - Digital sound input
3
CENTER IN - Centre audio input (analogue)
4
DIGITAL AUDIO LINK - Surround audio outputs (digital)
5
AUDIO OUT - Audio output (analogue)
6
AV - Mini AV socket
(1
7
AUDIO IN - Audio inout (analogue)
8
PC IN - VGA-/XGA input
9
HDMI 1 - HDMI input 1 (with HDMI ARC support)
10
HDMI 2 - HDMI input 2
11
HDMI 3 - HDMI input 3
12
LAN - Network connection
13
USB - USB connection
14
ANT TV - Antenna/cable analogue/digital
15
ANT SAT - Satellite antenna (Sat tuner 1)
16
ANT SAT 2 - Satellite antenna (Sat tuner 2)
17
CI-COMMON INTERFACE - Common Interface 1 (CI slot 1)
18
CI-COMMON INTERFACE - Common Interface 2 (CI slot 2)
19
HDMI 4 - HDMI input 4
20
USB - USB connection
21
USB - USB connection
22
- Headphone connection
23
AVS - S-Video connection (AVS)
24
AUDIO IN R - Audio input right (AVS)
25
AUDIO IN L - Audio input left (AVS)
26
RS-232C - Serial interface
(2
27
IR LINK - Infrared transmitter connection
(2
28
Socket for Kensington lock
29
AC IN - Mains connection


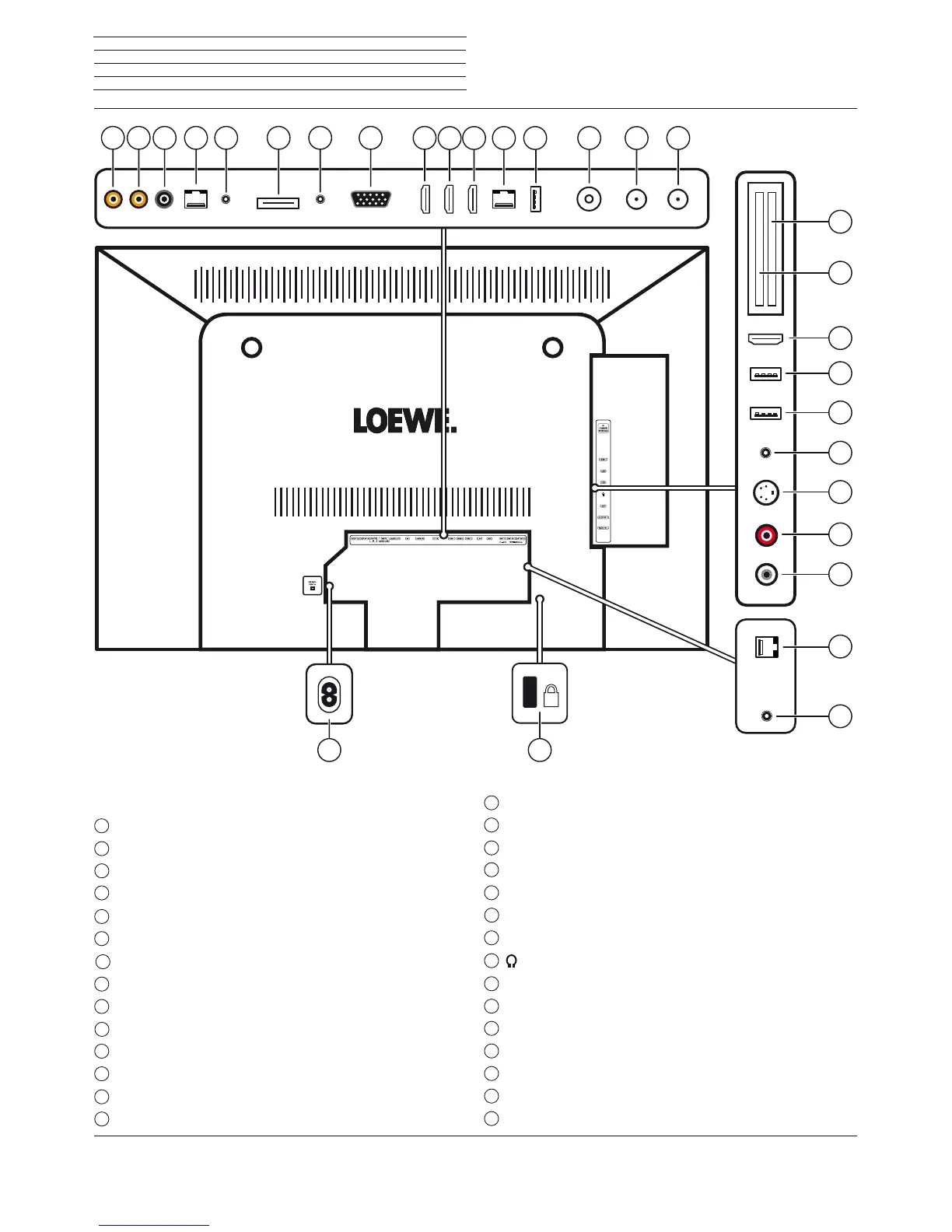

Connections rear side of the device
(1
Adaptor set is available as an accessory (see chapter Accessories).
K
1 2
11
9
10
12 13 15
4
5
24
3
8
20
21
23
22
28
26
27
25
19
29
6
7
14
18
16
17
