Function of the connections

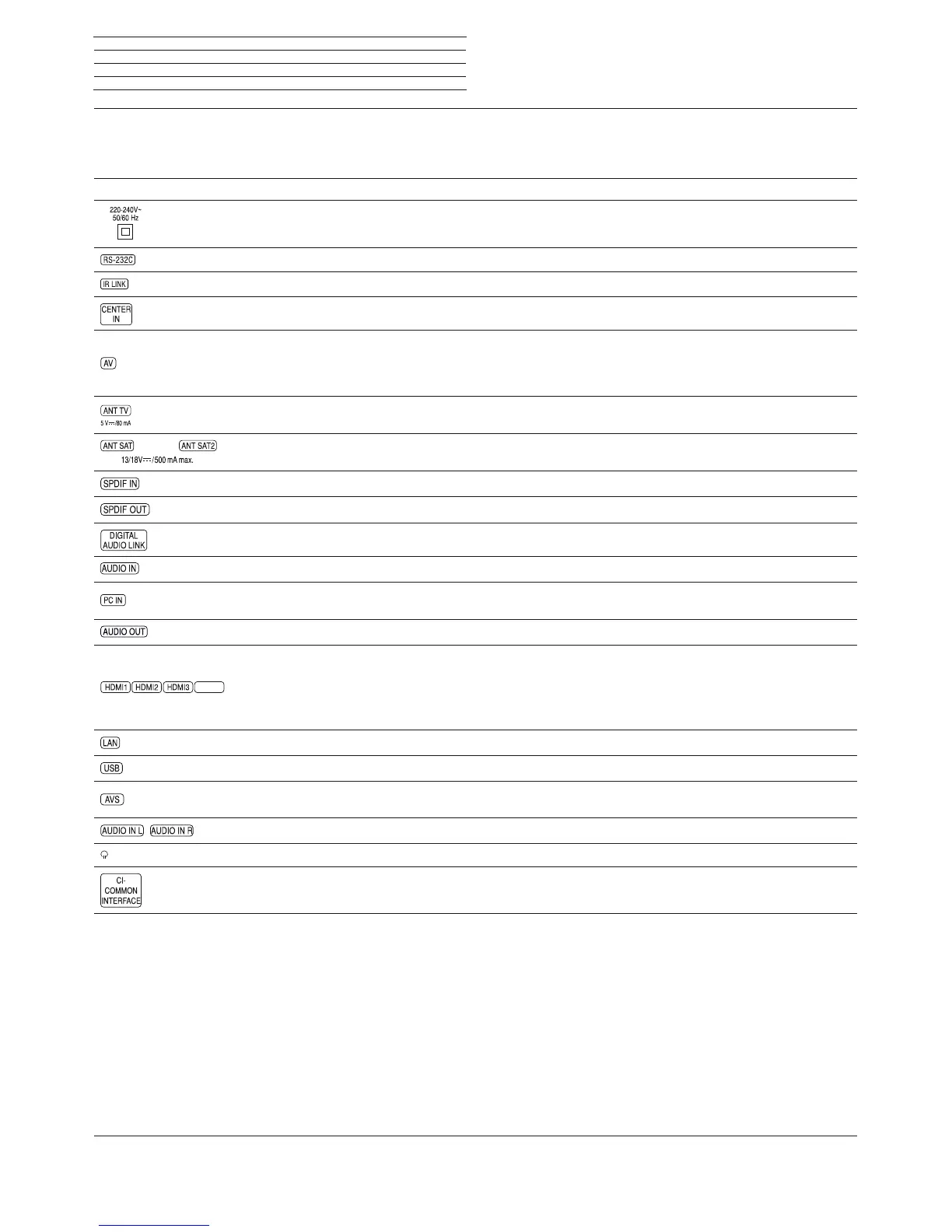

The following table shows the name, type and function of the ports.
Designation Type Function / Signal
Mains socket 220-240 V ~ 50 / 60 Hz Supply voltage
RJ12 Data I/O: Serial interface
(1
Jack 3.5 mm Connection for IR transmitter
(1
Cinch (black) Audio IN: max. 2Vrms: Centre audio input (analogue)
Mini AV
Video IN:
Audio IN:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
L/R
IEC socket 75 Ohm / 5 V / 80mA:
Antenna analogue / Cable analogue / DVB-T/ DVB-C
DVB-T2
(2
F socket (2x) 75 Ohm / 13/18 V / 500mA: ANT-SAT DVB-S/S2
Cinch (orange) SPDIF IN: Digital sound input
Cinch (orange) SPDIF OUT: Digital audio output
RJ-45 Audio OUT: Multi-sound (digital)
Jack 3.5 mm Audio IN: Audio input (analogue)
D-SUB 15-pole Video IN:
PC/STB video signal
Component (YPbPr)
Jack 3.5 mm Audio OUT: Audio output (analogue)
HDMI4
HDMI type A (4x)
Digital Video/Audio IN
(HDMI1, HDMI2, HDMI3,
HDMI4):
Digital Audio OUT
(HDMI1 via HDMI ARC):
Digital video and audio
RJ-45 Ethernet / Fast Ethernet: Network interface
USB type A (3x) USB 2.0 (max. 500mA): Multimedia files/software update
Mini AV Video IN:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
Cinch (white/red) Audio IN: L (white) / R (red)
Jack 3.5 mm Headphones 32–200 Ohm
CI Slot (2x) Common Interface: Slot for CA module

Technical Data
(1
Optionally available as an upgrade kit.
(2
Optionally available as an upgrade kit (depending on the country variant, this module has already been installed free at point of dispatch).
