Loewe Connect ID 46 DR+ - Connecting the Loewe Speaker System

Connect ID 40-55 DR+
User guide
129
Connecting the Loewe speaker system
Connection of a Loewe speaker system to the Digital Audio Link port
of the TV set.
Set-up

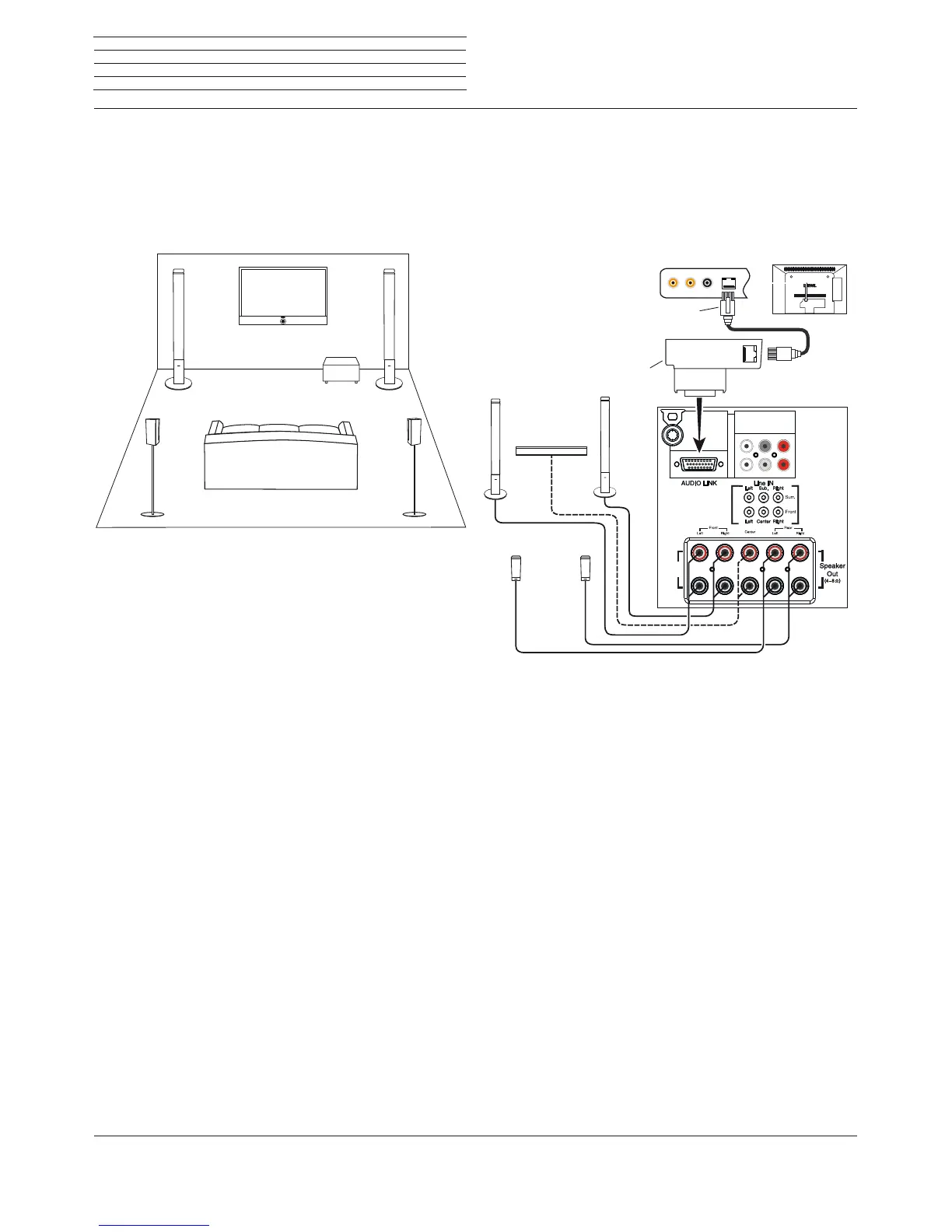

The arrangement of speakers and TV set can look like the illustration
below:
The front and surround speakers should be installed symmetrically
to the TV set and to your sitting position.
You can position the subwoofer anywhere on the floor. We recommend
placing it in front asymmetrically next to the TV set.
For the manual settings in the sound components wizard enter the
distances of the centre speaker, and the front and surround speak-
ers to your sitting position. This guarantees a natural spatial image
of the sound.
Example for placing the Loewe sound system
Front
left
Front
right
Surround
left
Surround
right
Subwoofer
TV loudspeaker as
centre speaker
Connection
Switch off all devices before connecting them.
The subwoofer is connected to the TV set via the DIGITAL AUDIO
LINK interface. Plug a network cable (Category 5e or higher) to the
DIGITAL AUDIO LINK port of the TV set. Connect the Ethernet cable
to the RJ45 socket of the Digital Audiolink / Audiolink converter
available as accessory. Connect the converter to the AUDIO LINK
socket of the Subwoofer.
Connecting the speakers to the subwoofer
further information on the wiring of the speakers you find the the
instruction manual of the speaker system.
Sound reproduction via the speaker system
The sound reproduction by the speaker system can be adjusted in the
sound components wizard.
Connection of a Speaker system to the TV set
TV set
Subwoofer
Converter
Digital Audiolink / Audiolink
Ethernet cable
(Cat. 5e or higher)

External devices
