Connecting a DVD recorder to the TV set
A DVD recorder has been selected in the System settings ט Con-
nections ט AV connecting settings ט Device at connection AV.
Switch off all devices before connecting them.
Connect the Scart output of the DVD player to the TV set’s AV socket
using the Scart adaptor
(1
. Use a fully equipped Scart cable (available
from your dealer) for this.
Plug the adaptor plug into the AV socket of the TV set so that the arrow
on the plug is visible.
If you want to receive and record analogue stations with the receiver
(tuner) built into the recorder, the recorder must be looped into the
aerial cable.
Connect the DVD recorder as shown in the connection example below.
Playback from AV device
Call AV list.
Select AV,
OK switch over.
Start playback on the connected device.
ANT IN
ANT OUT
AV
AV
R
TV
ANT
TV
DVD recorder
TV set

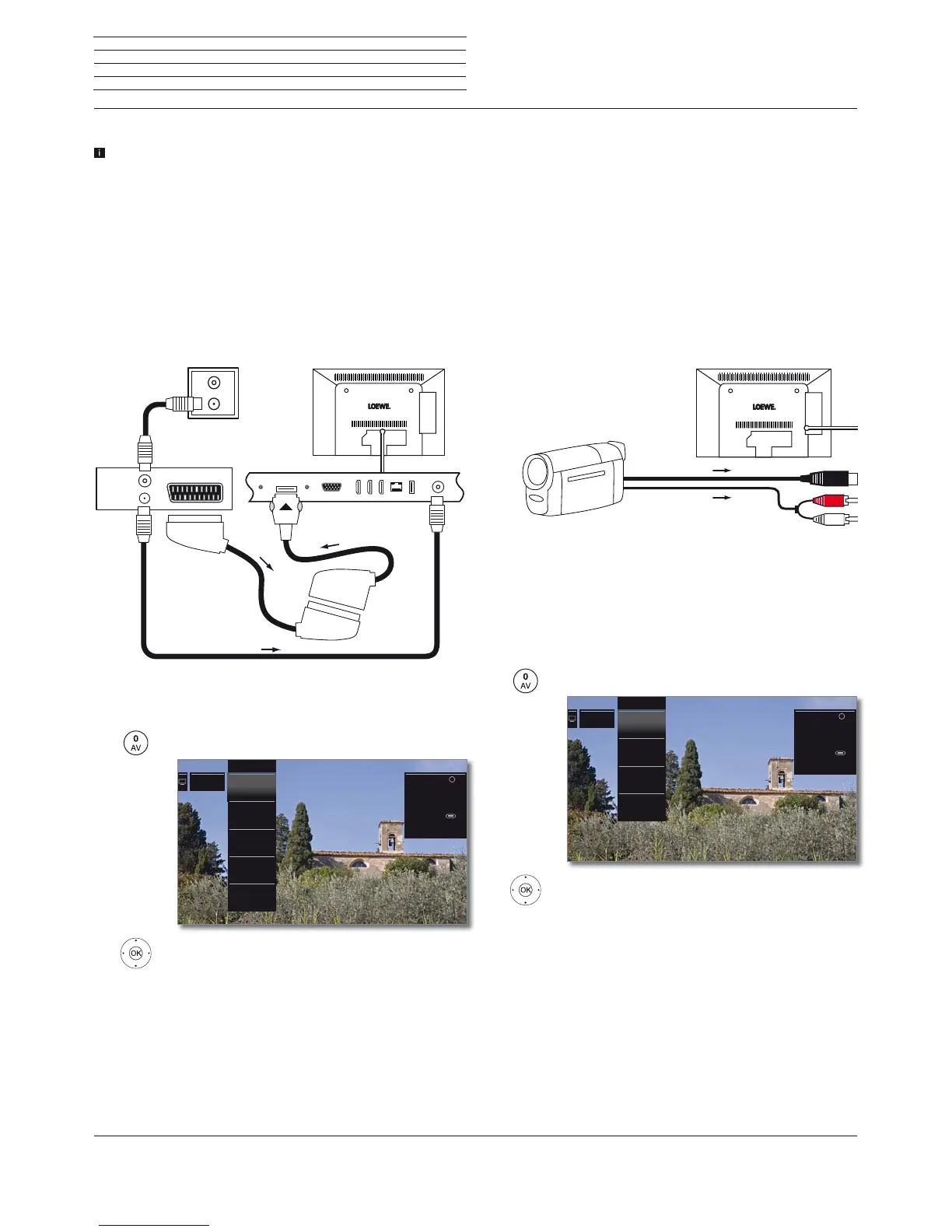

Connection example of a DVD recorder
6 AVS
5 AV
7 PC IN
8 VIDEO8 VIDEO
9 SPDIF
AV list
Note: If you press for
at least two seconds to
switch to the selected
channel, the screen
switches off and you will
only hear the sound.
With the button
(green), you can switch
the screen back on and
off.
OK
Devices on AVS
The AV input AVS offers the possibility of connecting, e.g., a digital
camera or a camcorder via different adaptors.
The adaptors required in the following are part of an adaptor set. The
adaptor set is available as an accessory from your Loewe dealer (see
chapter Accessories).
Connecting Camcorder/camera
Switch off all devices before connecting them.
Connect the video output of the camcorder to the TV set’s AVS socket.
Use the AV cable enclosed with the camcorder for this.
Depending on the type of plug, an additional cable is required for the
audio connection. Connect this to the AUDIO IN R and AUDIO IN L
connector of the TV set.
If your camcorder has an HDMI output, you can also connect the device
to the HDMI socket HDMI4 on the side of the TV set.
Playback from AV device
Call AV list.
Select AVS,
OK switch over.
Start playback on the connected device.
Connection example of a camcorder
AVS
AUDIO IN R/L
Camcorder
TV set
7 PC IN
6 AVS
8 VIDEO
9 SPDIF9 SPDIF
AV list
Note: If you press for
at least two seconds to
switch to the selected
channel, the screen
switches off and you will
only hear the sound.
With the button
(green), you can switch
the screen back on and
off.
OK
External devices
(1
Adaptor set is available as an accessory (see chapter Accessories).
