Loewe Individual 55 Compose 3D, Individual 46 Compose 3D, Individual 40 Compose 3D, Individual 32 Compose 3D User Manual

11 -
english
1
HDMI 1 - HDMI input 1
2
HDMI 2 - HDMI input 2
3
PC IN - VGA/XGA input
4
AV - Euro-AV socket
5
LAN - Network connection
6
USB - USB connection
7
AUDIO IN - Audio input (analogue)
8
AUDIO DIGITAL OUT - Digital audio output
9
AUDIO DIGITAL IN - Digital audio input
10
CENTER IN - Centre audio input (analogue)
11
SERVICE - Service socket
12
ANT-TV - Antenna/cable analogue/digital
13
ANT SAT 2 - Satellite antenna (Sat tuner 2)
14
ANT SAT - Satellite antenna (Sat tuner 1)
15
AUDIO LINK - Surround audio outputs (analogue)
16
CI-COMMON INTERFACE - Common Interface 1 (CI slot 1)
17
CI-COMMON INTERFACE - Common Interface 2 (CI slot 2)
18
HDMI 3 - HDMI input 3
19
USB - USB connection
20
- Headphones connection
21
AUDIO IN L - Audio in left (AVS)
22
AUDIO IN R - Audio in right (AVS)
23
VIDEO IN - Video in (AVS)
24
AVS - S-Video connection (AVS)
25
220-240V~ 50/60Hz – Mains connection
26
IR LINK - Infrared transmitter connection
27
CONTROL - Rotating stand control
28
RS-232C - Serial interface
29
AUDIO OUT L - Speaker connection left (
+
/–)
30
AUDIO OUT R - Speaker connection right (
+
/–)
31
SYSTEMSPEAKER - Loewe system speaker connection

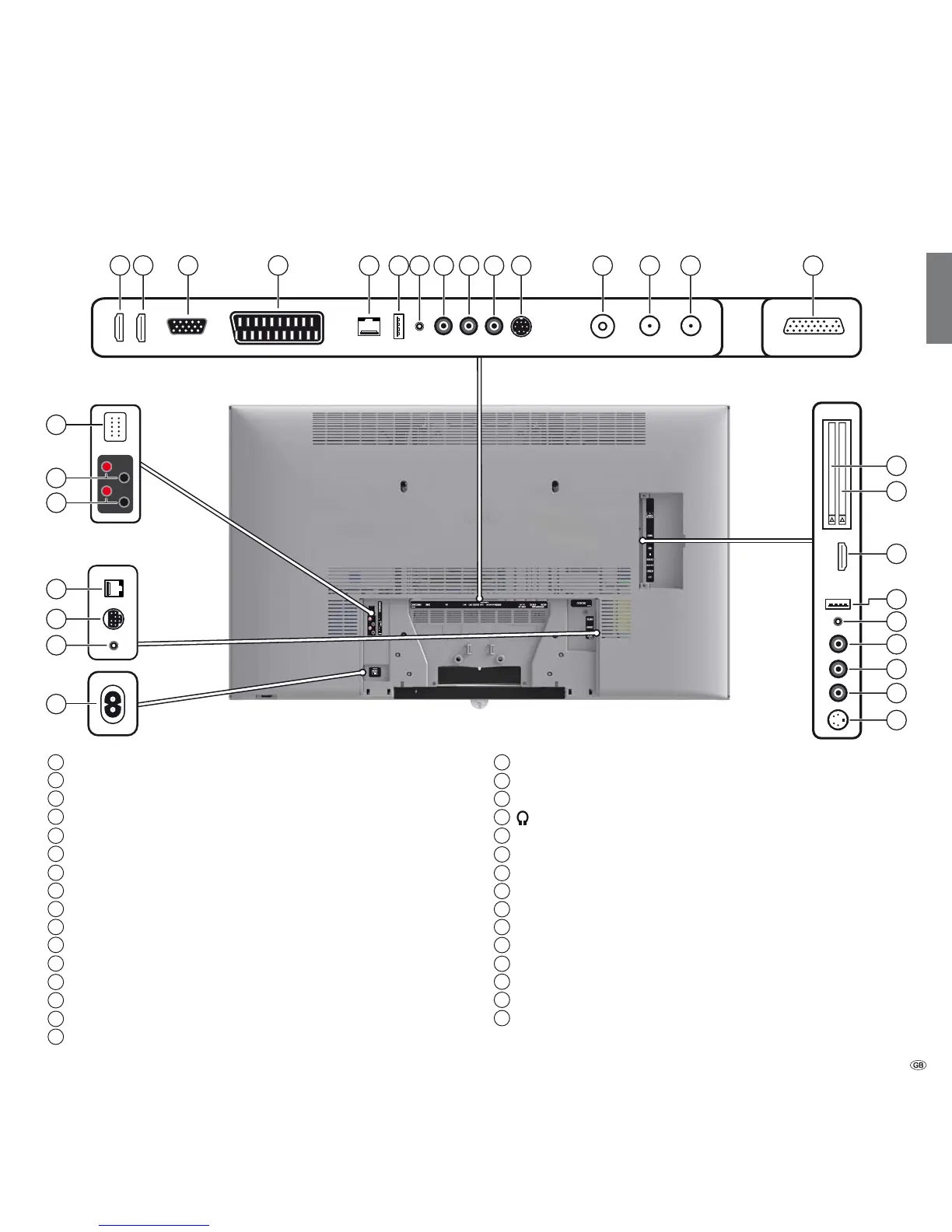

Connections rear side of the device (Individual 55 / 46 / 40)
29
1 2
11
9
10
12 13
26
27
15
31
4
5
23
3
24
28
30
8
19
20
22
21
18
25
6 7
14
17
16
