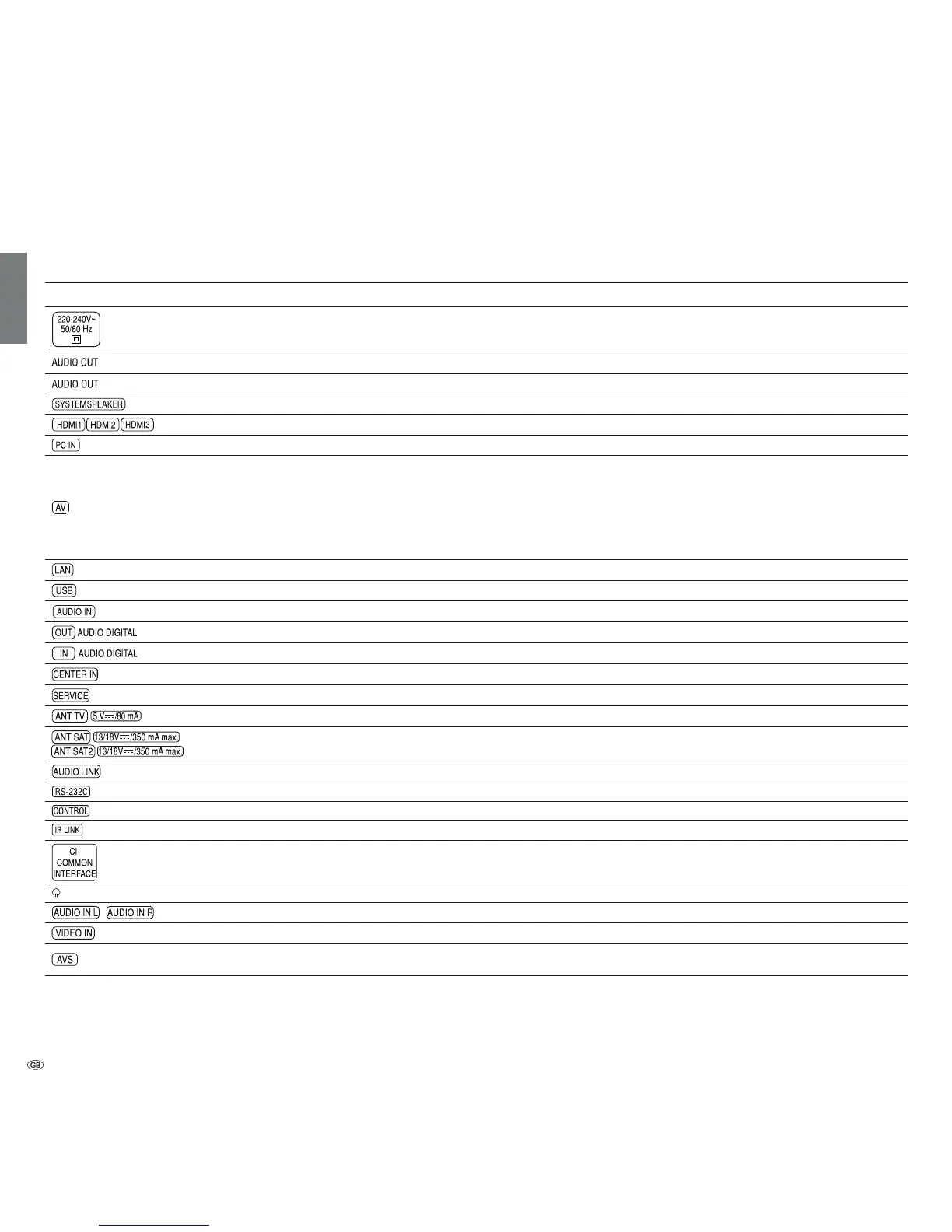

Connections (max. equipment)
Designation Type Function / Signal
Mains socket 220-240V ~ 50/60 Hz Supply voltage
+ R -
Screw terminals (2x)
(1
Speaker Right: + (red) / - (black)
+ L -
Screw terminals (2x)
(1
Speaker Left: + (red) / - (black)
10-pole connector
(1
Loewe system speaker
HDMI type A (3x) Digital Video/Audio IN: Digital video
(2
and audio
D-SUB 15-pole Video IN: PC/STB video signal
(2
EURO-AV
Video IN:
Video OUT:
Audio IN:
Audio OUT:
Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB
CVBS (VHS/8 mm)
Y/C (S-VHS/Hi 8)
L/R
L/R
RJ-45 Ethernet / Fast Ethernet: Network interface
USB type A (2x) USB 2.0 (max. 500mA): Multimedia files/software update
Jack 3,5 mm Audio IN: L/R
Cinch (yellow) Digital Audio OUT (SPDIF): Digital audio
Cinch (red) Digital Audio IN (SPDIF): Digital audio
Cinch (white) Audio IN: max. 2Vrms: Centre
Mini-DIN Service/L-Link
IEC socket 75 Ohm / 5 V / 80 mA: Antenna/cable/DVB-T/C
F socket (2x)
(1
75 Ohm 13/18 V / 450 mA: ANT-SAT DVB-S/S2
D-SUB 26-pole Audio OUT: Multi-sound
RJ12 Data I/O: serial interface
Mini-DIN Rotating stand control (Positioning accuracy 1.5°)
Jack 3,5 mm Connection for IR station
CI slot (2x) Common Interface: Slot for CA module
Jack 3,5 mm Headphones 32–2000 Ohm
Cinch (white/red) Audio IN: L (white) / R (red)
Cinch (yellow) Video IN: CVBS (VHS/8 mm)
Mini-DIN
Video IN: Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
Technical data
(1
Equipment and upgrade options, see page 150.
(2
For compatible picture signals, see table on page 145.
