Connecting a DVD recorder to the TV set
➠ A DVD recorder has been selected in the TV Menu under Connections ט
AV connecting settings ט Device at connection AV (see also page 116).
Switch off all equipment before connecting.
Connect the Euro-AV output of the DVD recorder to the AV socket of
the TV set.
Use a fully equipped Euro-AV cable (available from your dealer) for this.
If you want to receive and record analogue stations with the receiver
(tuner) built into the recorder, the recorder must be looped into the
aerial cable.
Connect the DVD recorder as shown in the connection example below.
➠ If you want to record DVB stations with an external recorder, the
internal receiver of the TV set must be used (see Timer recording with
external devices on page 132).
Playback from AV device
Call AV selection.
Select AV,
OK switch over.
Start playback on the connected device.
Connecting Camcorder/camera
Switch off all equipment before connecting.
Connect the AV output of the camcorder to the sound input sockets
AUDIO IN L (white) and AUDIO IN R (red) and the AVS connection of the
side AV sockets of the TV set.
Use the AV cable enclosed with the camcorder for this.
Some camcorders only supply an FBAS signal instead of an S-Video signal
at the AV output. In this case use the VIDEO IN input (yellow).
If your camcorder has an HDMI output, you can also connect the ap-
pliance via the HDMI socket HDMI3 on the side (see connections page
11 or Devices to the HDMI connections page 120).
Playback from AV device
Call AV selection.
Select AVS,
OK switch over.
Start playback on the connected device.

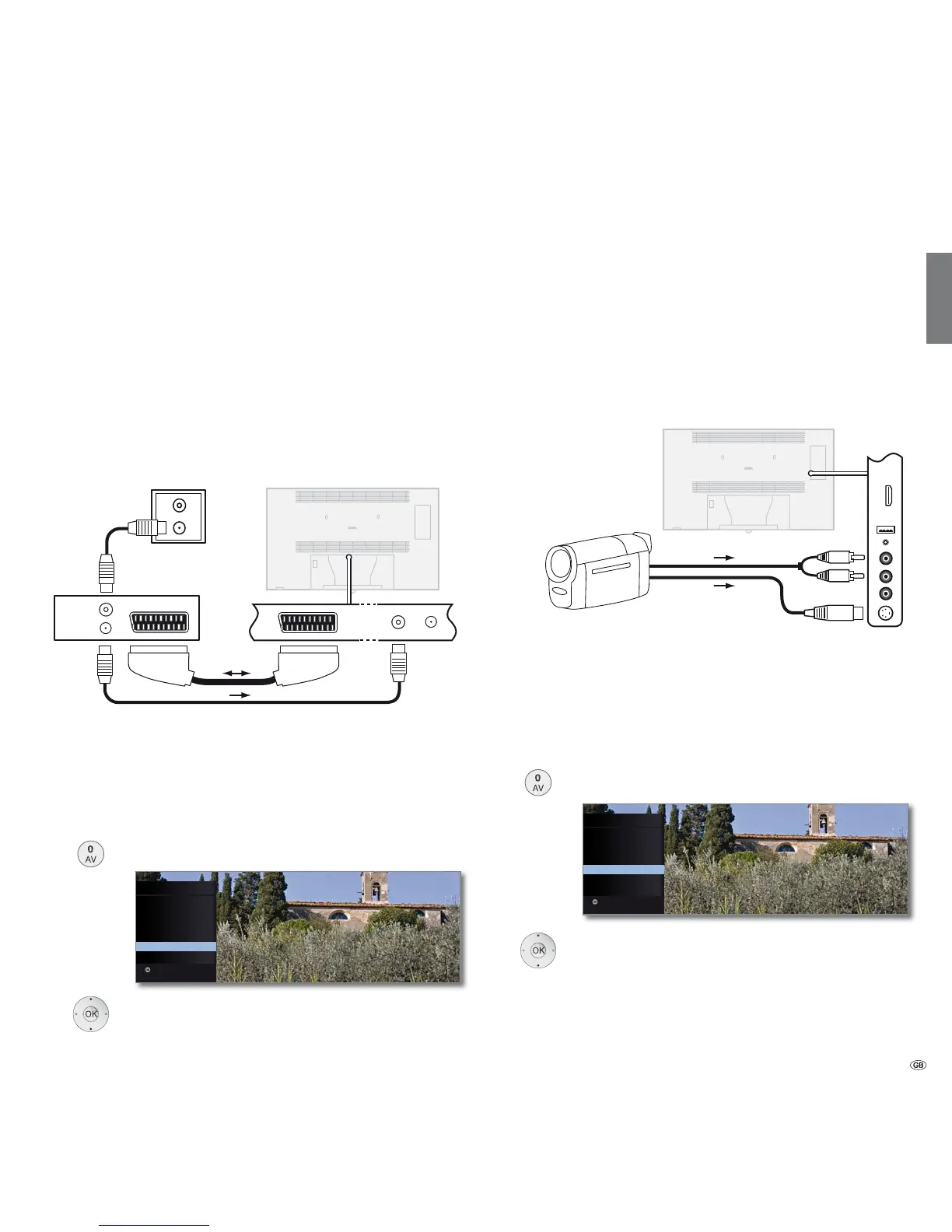

Connection example of a DVD recorder
TV set
DVD recorder
AV
ANT TV
TV set
Camcorder
AUDIO IN L/R
AVS
Connection example of a camcorder
OK
AV SELECTION
HDMI3
HDMI2
HDMI1
PC IN
AVS
AV
VIDEO
Switch to ...
OK
AV SELECTION
HDMI3
HDMI2
HDMI1
PC IN
AVS
AV
VIDEO
Switch to ...
External devices
ANT IN
ANT OUT
AV
R
TV
