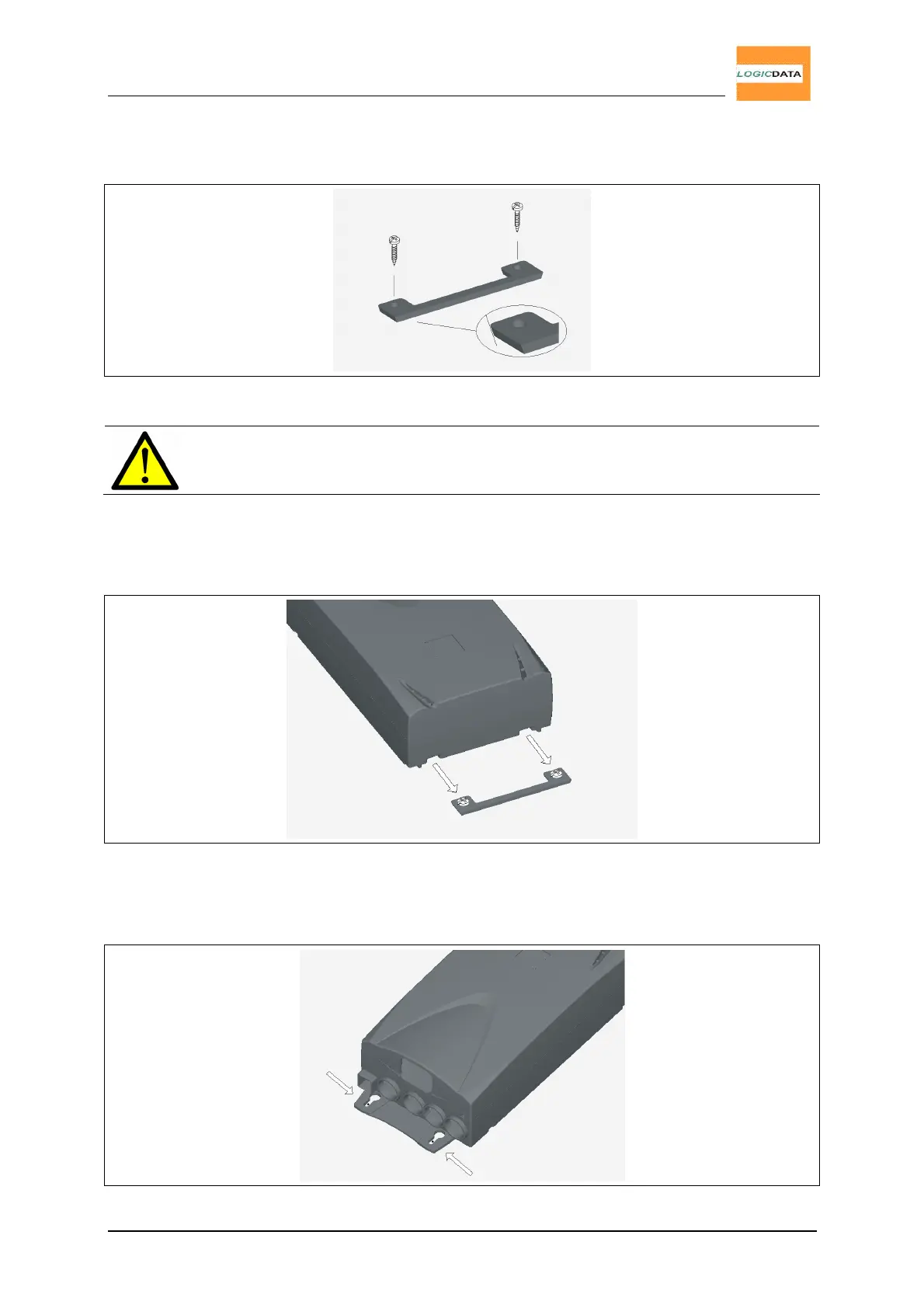

6. Fix the mounting plate with 2 screws in the pre-drilled holes.

Fig.3 - Step 6

Note: Note the V formation of the mounting plate (see fig. 3)!

7. Slide the LogicS control box onto the mounting plate so it is fully inserted in the

control box housing.

Fig.4 - Step 6

8. Mark the drill holes in the mounting link with a pencil.

Fig.5 - Step 8
