LOGICDATA TOUCH Series - Touchinlay; Dimensions for the Milled Cut-Out

TOUCH FAMILY - OPERATING MANUAL // PAGE 14
5.2.3 TOUCHINLAY
Length 42.0 mm | 1.654 "
Width 95.4 mm | 3.756 "
Height (to bottom of rubber ribs) 17.3 mm | 0.681 "

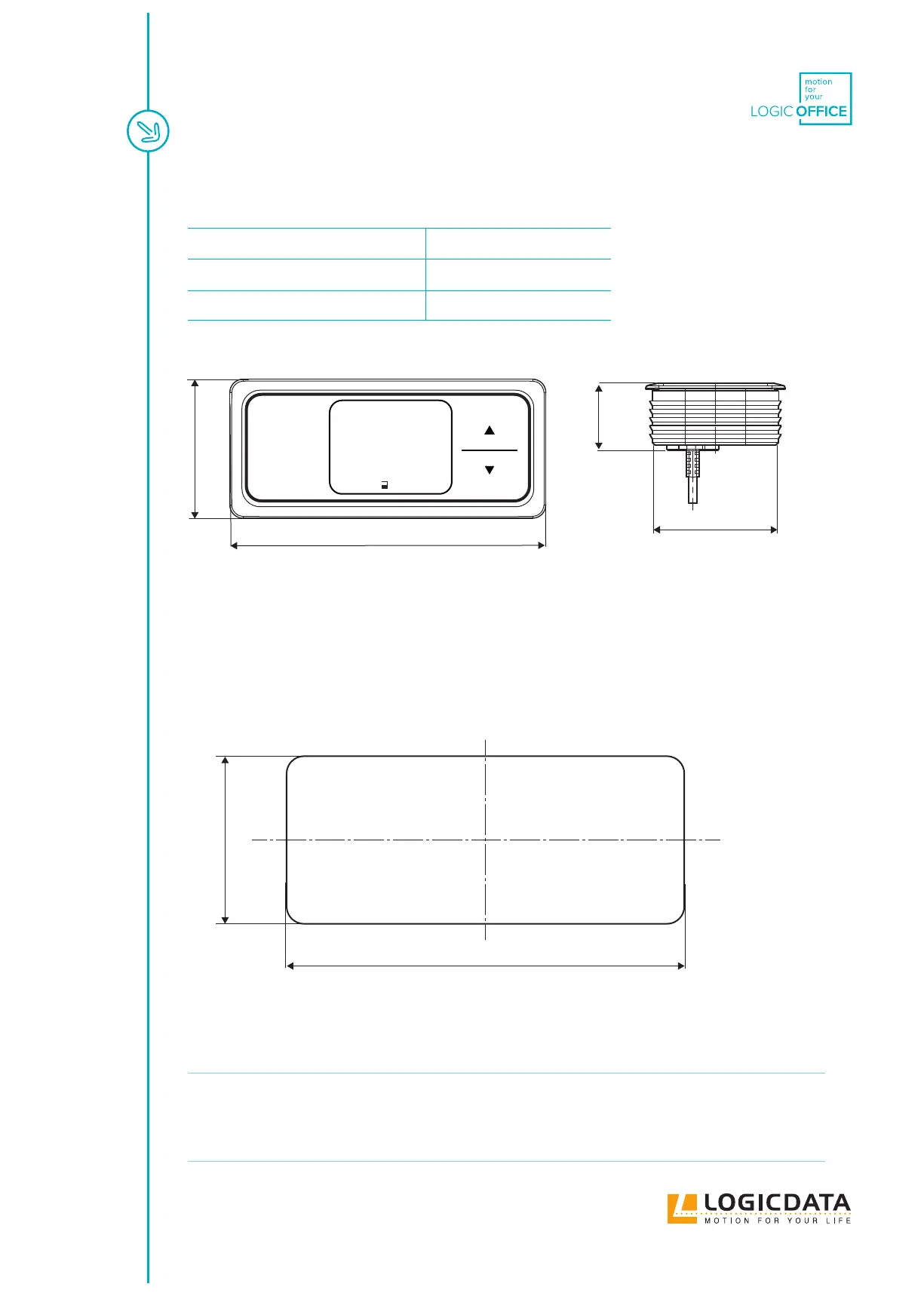

Fig. 6: Product dimensions, TOUCHinlay
5.2.4 DIMENSIONS FOR THE MILLED CUT-OUT
The milled cut-out for the TOUCHinlay shall have the following dimensions (image to scale):
Fig. 7: Dimensions for the milled cut-out, TOUCHinlay
INFO It is assumed that the milled cut-out will pass through the entire table top (i.e. milling
will create a hole rather than an indent). If you do not mill through the entire Table
Top, you will need to drill a separate hole to accomodate the TOUCHinlay's cable. In this
case, contact LOGICDATA for further information on dimensions.
0,681 "
35,7 mm
1,406 "
17,3 mm
1
2
SAVE
42,0 mm
1,654 "
95,4 mm
3,756 "
93,0 mm ± 0,193,0 mm ± 0,1
3,661 " ± 0,01 3,661 " ± 0,01
39,2 mm ± 0,139,2 mm ± 0,1
1,433 " ± 0,01 1,433 " ± 0,01
