TOUCH FAMILY - OPERATING MANUAL // PAGE 19
6.3 ASSEMBLY: TOUCHDOWN
6.3.1 REQUIRED COMPONENTS
The following components are required to assemble the TOUCHdown:
1 TOUCHdown
2 4 Mounting Screws (supplied by Reseller)
Tool Screwdriver
INFO
Screw specications
Thread diameter: max. 5 mm | Head diameter: max. 10 mm
If possible, do not use countersunk-head screws.
6.3.2 PROCESS
1. Position the Handset under the table top and mark the position of the drilling holes (Fig. 11).
Alternatively, use the Drilling Template in Chapter 5.3.2 to help you. Ensure that the corners
circled in the diagram below are ush with the edge of the Table Top.
INFO If the mounting area has a curved edge, move the Handset slightly backwards.

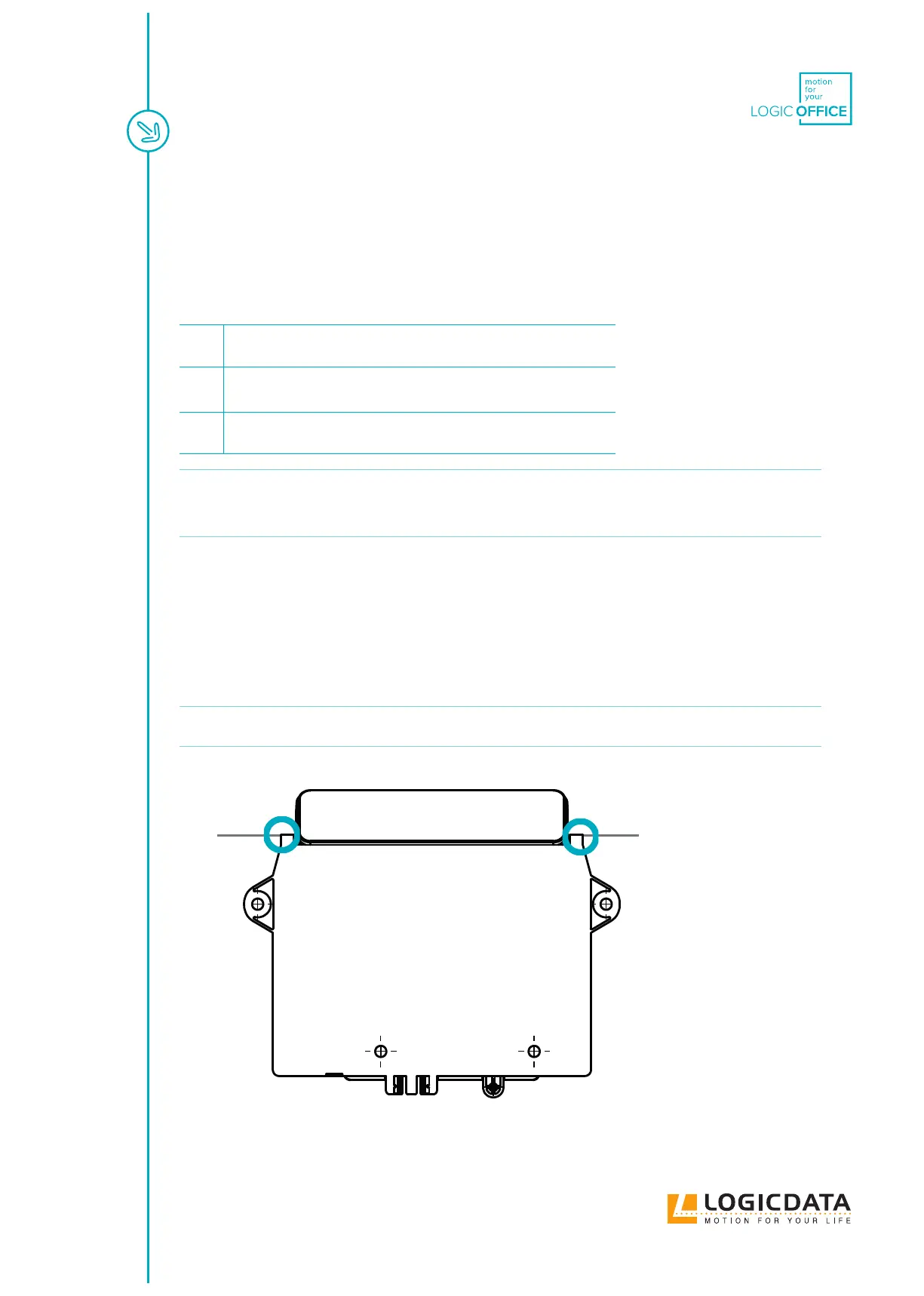

Fig. 11: Positioning the TOUCHdown on the Table Top
1
2
