LogiCO2 O2 - Dip Switch Settings

23
9.9 DIP-switch settings
All DIP-switches are set to OFF as default.
Default functions/settings:
- Connection to one O2 sensor
The number of connected O2 sensors is set on dip 1-3.
Dip 4-8 are not used and must be in position OFF.

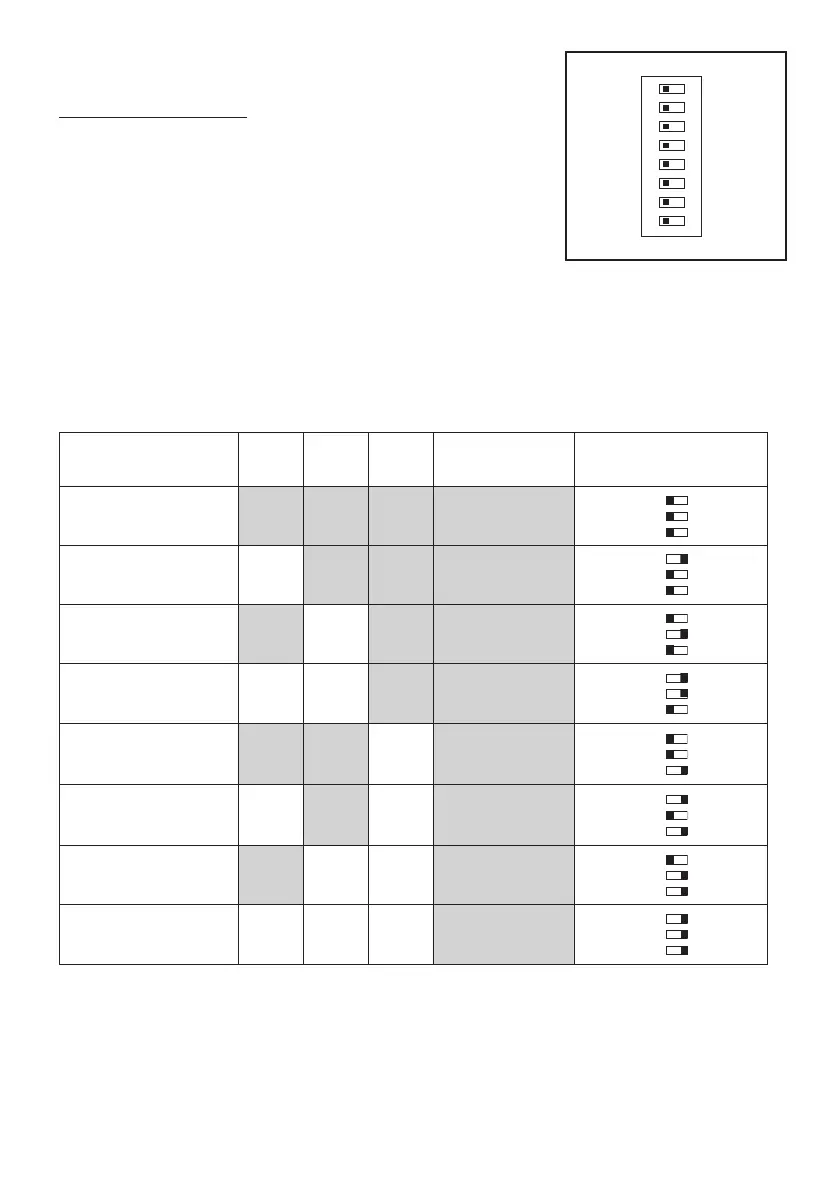

9.10 DIP-switch settings, Number of connected sensors
Dip 1-3. NOTE! Dip 4-8 is not in use and must be placed in “OFF” position
It is possible to expand the system with up to four O2 sensors, or four O2 sensors and four CO2
sensors or up to eight CO2 sensors.
Number of connected
sensors
Dip1 Dip2 Dip3 Dip 4-8 Not used DIP-swith
1 connected sensor OFF OFF OFF OFF
1 2 3
2 connected sensors ON OFF OFF OFF
1 2 3
3 connected sensors OFF ON OFF OFF
1 2 3
4 connected sensors ON ON OFF OFF
1 2 3
5 connected sensors OFF OFF ON OFF
1 2
3
6 connected sensors ON OFF ON OFF
1 2
3
7 connected sensors OFF ON ON OFF
1 2 3
8 connected sensors ON ON ON OFF
1 2 3
1 2 3 4 5 6 7 8
ON
