Connecting an AV Device with Component (YPbPr) Cable
Use a component cable to connect the TV’s 1.
YPbPr input sockets to an external AV device’s
component output sockets.
Use the supplied AV cable to connect the TV’s 2.
AUDIO(L/R) input sockets to the external AV
device’s component audio output sockets. (Audio
Left = white, and Audio Right = red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
Plug the connected devices into the mains socket 3.
before switching on the POWER ON/OFF switch at
the side of the TV.
Press the4.
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
Press the 5. SOURCE button to display the Source List.
Use the
buttons to select YPBPR and then press
the OK button or the
button to confirm.
Connecting a Computer with VGA Cable
Use a VGA cable to connect the TV’s VGA input socket 1.
to a computer’s VGA output socket. Use an audio
cable to connect the TV’s PC AUDIO input socket to
the computer’s audio output socket.
Plug the connected devices into the mains socket 2.
before switching on the POWER ON/OFF switch at
the side of the TV.
Press the3.
/ I button on the top panel of the TV or
the
button on the remote control to turn on your
TV.
Press the 4. SOURCE button to display the Source List.
Use the
buttons to select PC and then press the
OK button or the
button to confirm.
• The best resolution is 1360 * 768.
If your computer is set to shut down after a few •
minutes of idle mode, the TV will also switch to
standby due to no signal being received, this is
to save energy. Press the
/ I button on the top
panel of the TV or the
button on the remote
control to restart the TV.
VGA Cable
(not included)
Audio Cable
(not included)

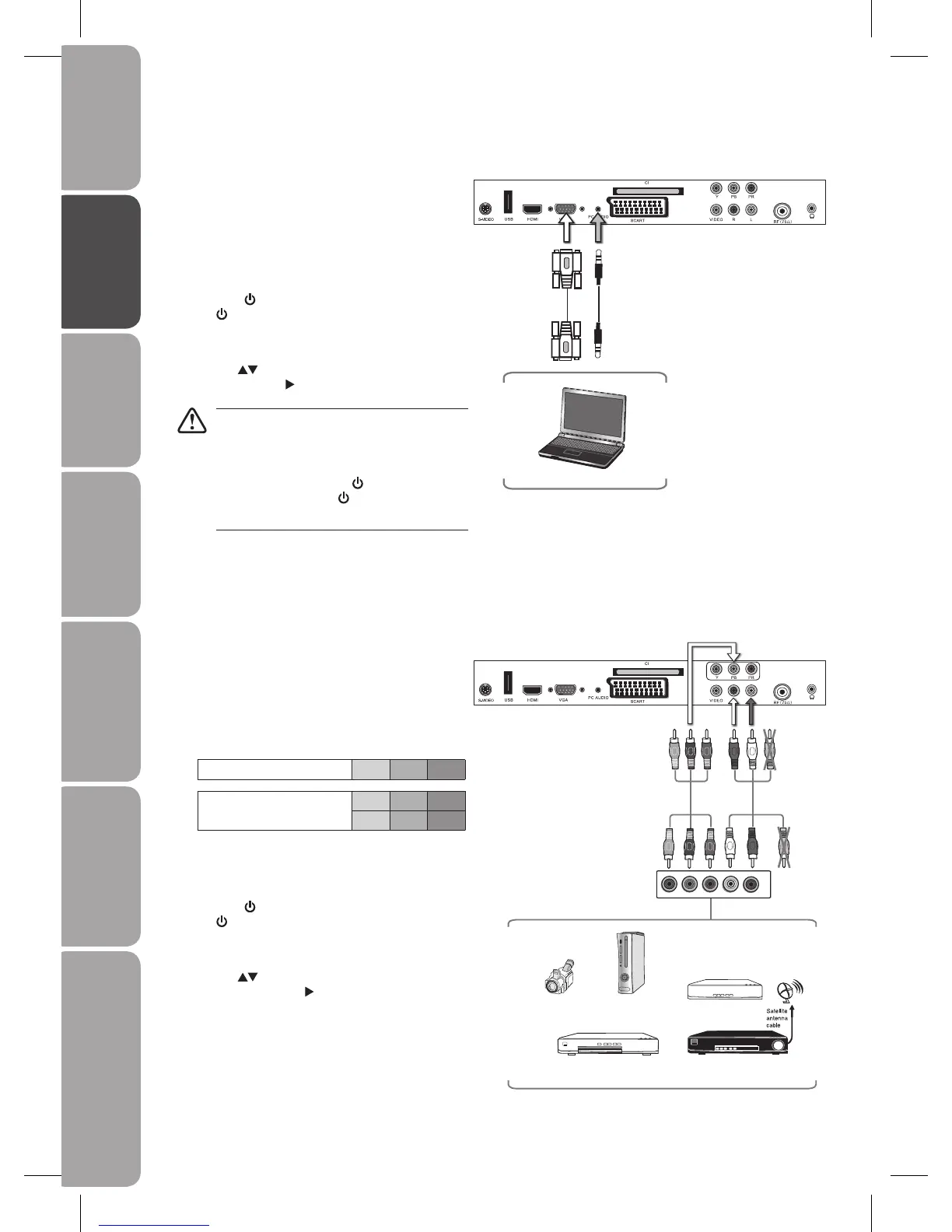

Right Rear Side View of TV
Computer
AV Cable
(included)
Right Rear Side View of TV
Component Cable
(not included)
