Logik L19DIGB10 User Manual

GB-15
PreparationConnectionsInitial SetupUsing the FeaturesDVR (Digital Video
Recorder)
Using the Features
via USB port
Hints and Tips, Specification
and Safety Warnings

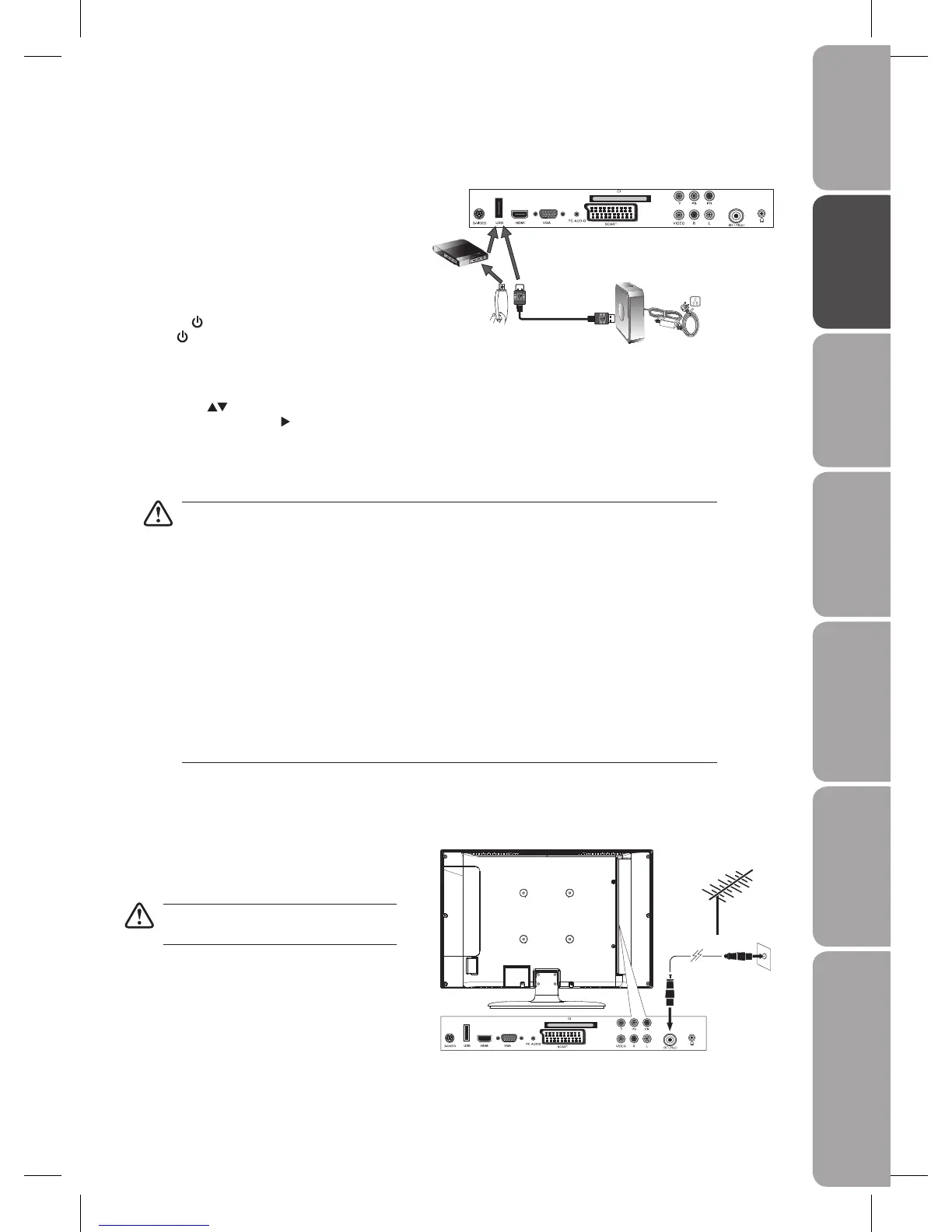

Connecting the Aerial
Connect one end of the RF coaxial cable to the aerial
socket on the wall and the other end of the cable to
the RF (75Ω) socket on the right rear side of your TV.
Do not connect the TV to the mains supply
until you have completed all the connections.
OR
RF coaxial cable
(not included)
Connecting a USB Storage Device
Switch off the TV before connecting any USB storage 1.
device.
Connect your USB storage device to the USB port of 2.
your TV.
Plug the connected devices into the mains socket 3.
before switching on the POWER ON/OFF switch
at the side of the TV.
Press the4.
/ I button on the top panel of the TV
or the
button on the remote control to turn on
your TV and your audio receiver and then set it to
Coaxial mode.
Press the 5. SOURCE button to display the Source
List. Use the
buttons to select DTV and then
press the OK button or the
button to confirm.
Press the MEDIA button to enter Media Mode.
(Refer to page 34-41 for details.)
• If a hard disk is used, make sure its mains adapter is connected to the mains supply.
If a USB hub is used, make sure its mains adapter is connected to the mains supply as the total current •
consumption may exceed 500mA.
If a USB hub is used, you may refer to the • Recording Device on page 37 for details on selecting the
active device when several USB storage devices are connected.
The maximum supported storage space of the hard disk is 1 TB.•
The file system only supports FAT32 format.•
If you want to store the video streaming of a DTV programme, the transfer rate of the USB storage device •
must not be less than 5MB/s, otherwise the picture and sound of the programme will be affected and
a warning statement will be shown on the screen. If this happens, please upgrade your USB storage
device.
The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard •
disk. This is normal and the starting time may vary depending on the brand and the memory size of the
connected hard disk.
Disconnect the USB storage device if it is not in use.•
Right Rear Side View of TV
USB Cable
Adapter
Portable
hard DiskUSB Hub
USB
