Mounting on the wall. This TV is designed to be wall-4.
mounted with a standard 100 mm x 100 mm mounting
kit designed for flat-panel TVs (sold separately).
Mount this TV according to the instructions included
in the mounting kit. Due to the space restriction, we
recommend you to make all connections (refer to page
11-15 for details) before final mounting on the wall.
If items are missing, or damaged please contact Partmaster (UK only). Tel: 0870 6001 338 for assistance.

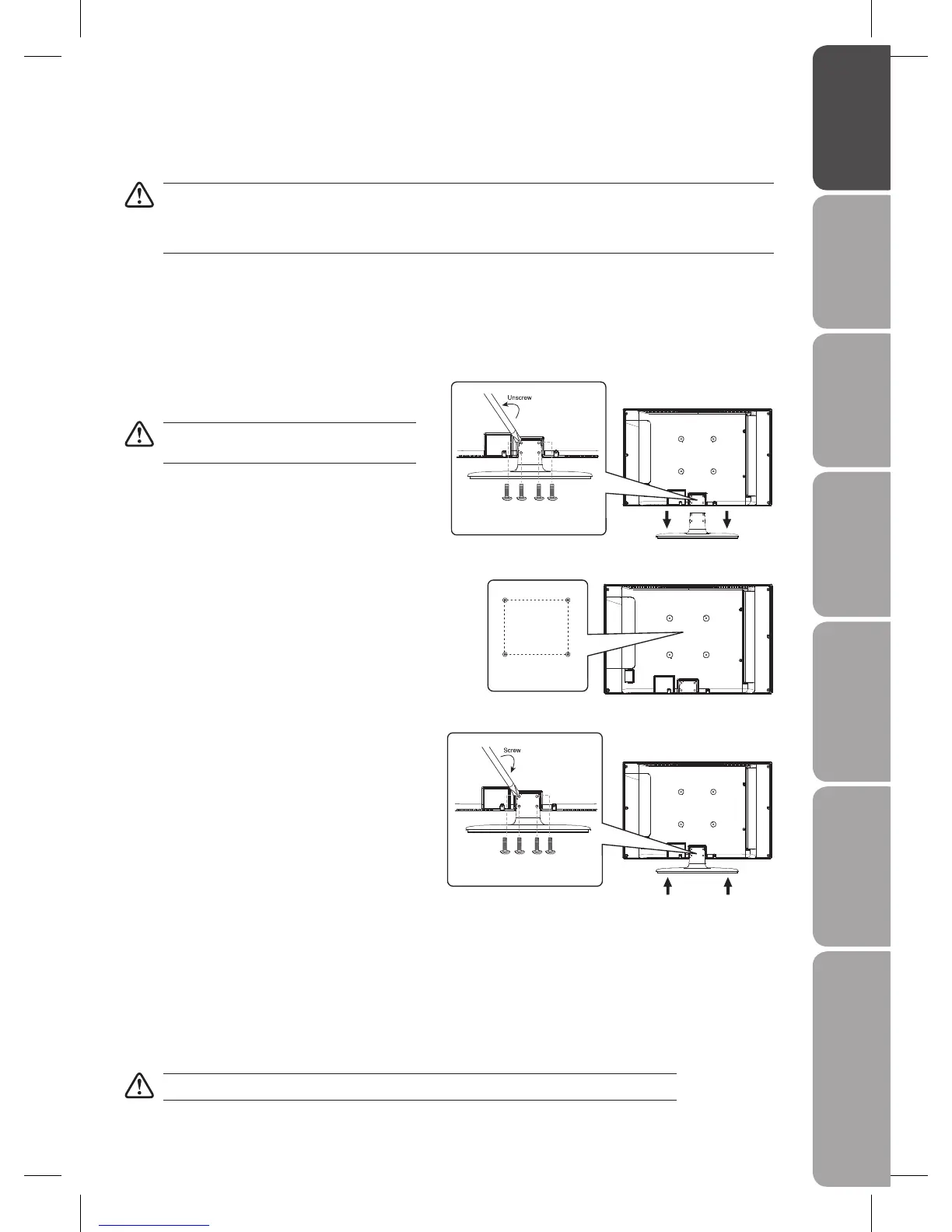

Installing / Removing the Base Stand
Remove the base stand before mounting the TV onto the wall.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure
that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO
NOT exert pressure on the front of the TV at any time because the screen could crack.
Disconnect all cables connected to the TV.1.
Lay the TV down on a flat surface with the back side 2.
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
To remove the base stand, untighten the 4 screws that 3.
hold the base stand to the rear of the TV.
Keep all the spare screws should you want to use
the base stand option.
To re-install the base stand, reattach the base stand 5.
with the 4 screws.
100 mm
100 mm
Four mounting holes
(size M4 screw)
Screws x 4
(P.N. I.03.MP4010001)
Screws x 4
(P.N. I.03.MP4010001)
To Next Page
