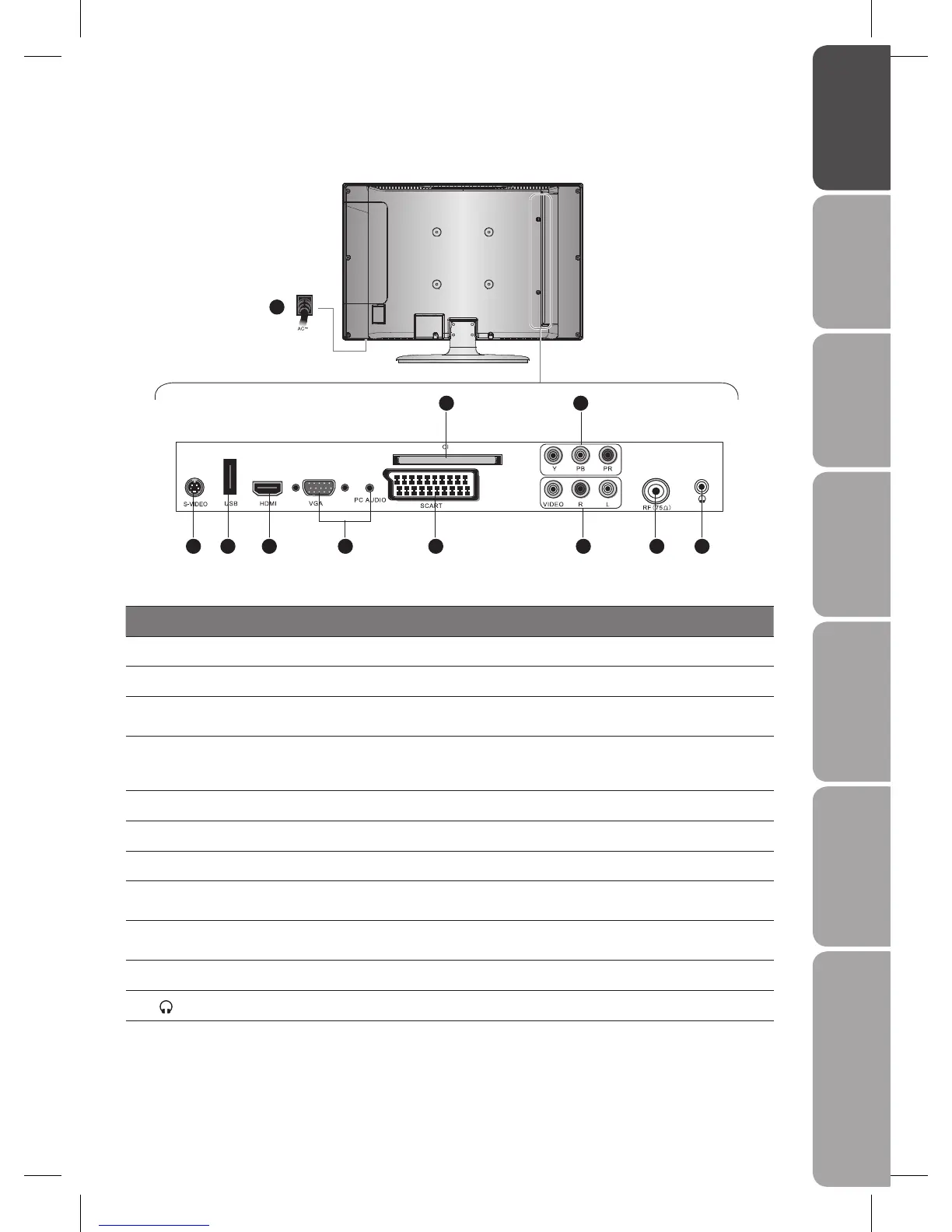

Rear View and Sockets
Item Description
1 AC~ Connect the mains cable to the mains socket.
2 S-VIDEO Connect to a VCR, DVD Player, or other AV devices with S-Video output sockets.
3 DVR USB port
Allows the insertion of a USB storage device. You can view media files or record DTV
programmes through this port. (Media Mode)
4 HDMI
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set-top box, Blu-ray
player, and AV receiver.
5 VGA / PC AUDIO Connect to a computer or other devices with a VGA interface.
6 SCART Connect to a VCR, DVD Player, or other AV devices with SCART output socket.
7 CI (Common Interface) Slot Allows the insertion of a Common Access Module. (Refer to page 30 for details.)
8 Y, PB, PR
Connect to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
9 VIDEO / AUDIO (L/R)
Connect to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
10 RF (75 Ω) Connect to the aerial socket on the wall with the RF coaxial cable.
11
Connect earphones for private listening.
7 8
432 5 6 9 10 11
1
