Connecting an AV Device with Composite Cable
Use the supplied AV cable to connect the TV’s 1.
AUDIO(L/R)/VIDEO input sockets to an external AV
device’s composite audio/video sockets. (Video =
yellow, Audio Left = white, and Audio Right = red)
Plug the connected devices into the mains socket 2.
before switching on the POWER ON/OFF switch
at the side of the TV.
Press the3.
/ I button on the top panel of the TV
or the
button on the remote control to turn on
your TV.
Press the 4. SOURCE button to display the Source
List. Use the
buttons to select AV and then
press the OK button or the
button to confirm.

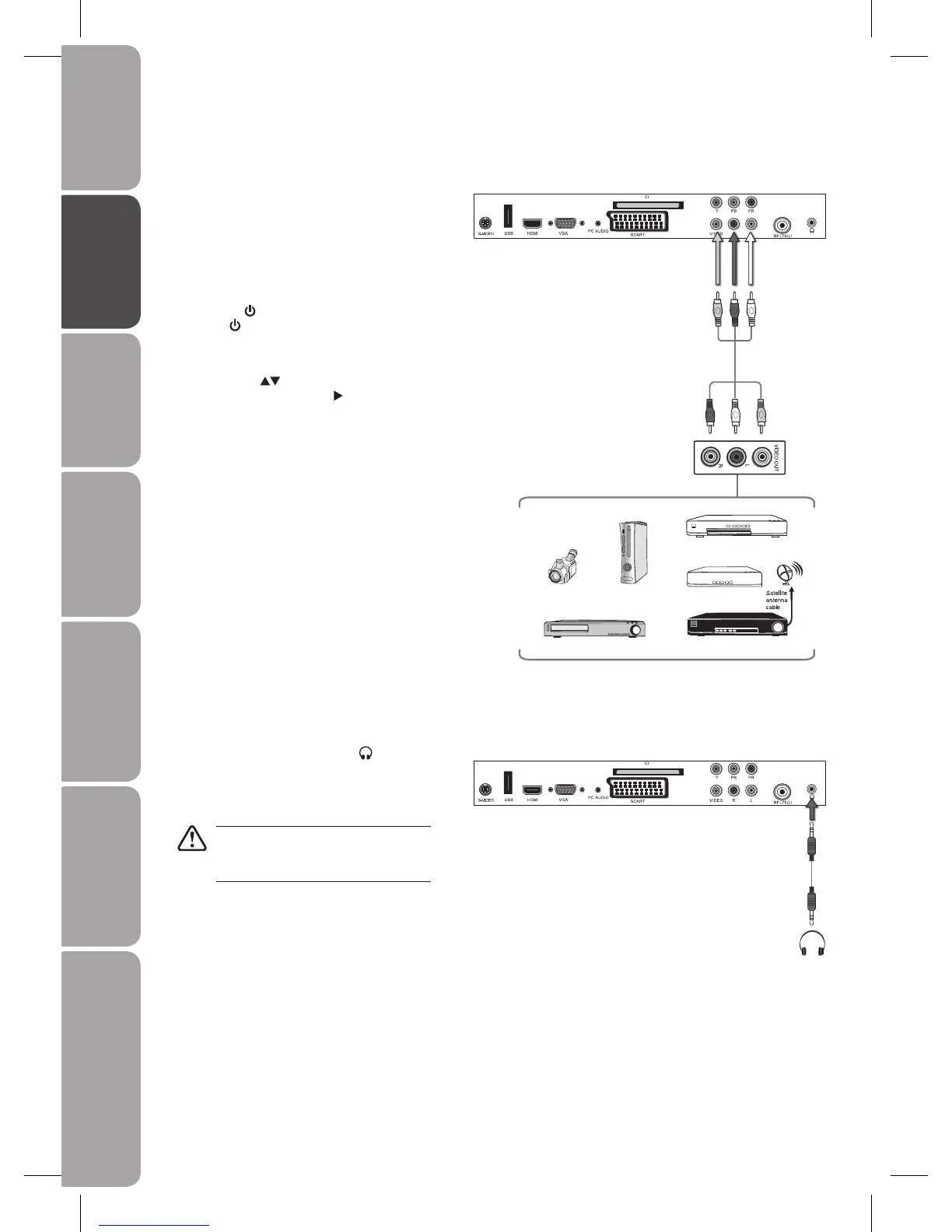

Satellite Receiver
Right Rear Side View of TV
AV Cable
(included)
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
Yellow (VIDEO)
Yellow (VIDEO)
Red (R)
Red (R)
White (L)
White (L)
Connecting Earphones
Connect your earphones to the TV’s socket.
Before putting on earphones, turn the volume down
then put the earphones on and slowly increase the
volume until you reach a comfortable listening level.
Listening to loud sounds for prolonged
periods of time may permanently damage
your hearing.
Right Rear Side View of TV
Earphones Cable
(not included)
To Next Page
