Valve guides and cylinder head housìngs
Intake and exhaust valve guides are both made of phosphoric cast
iron.

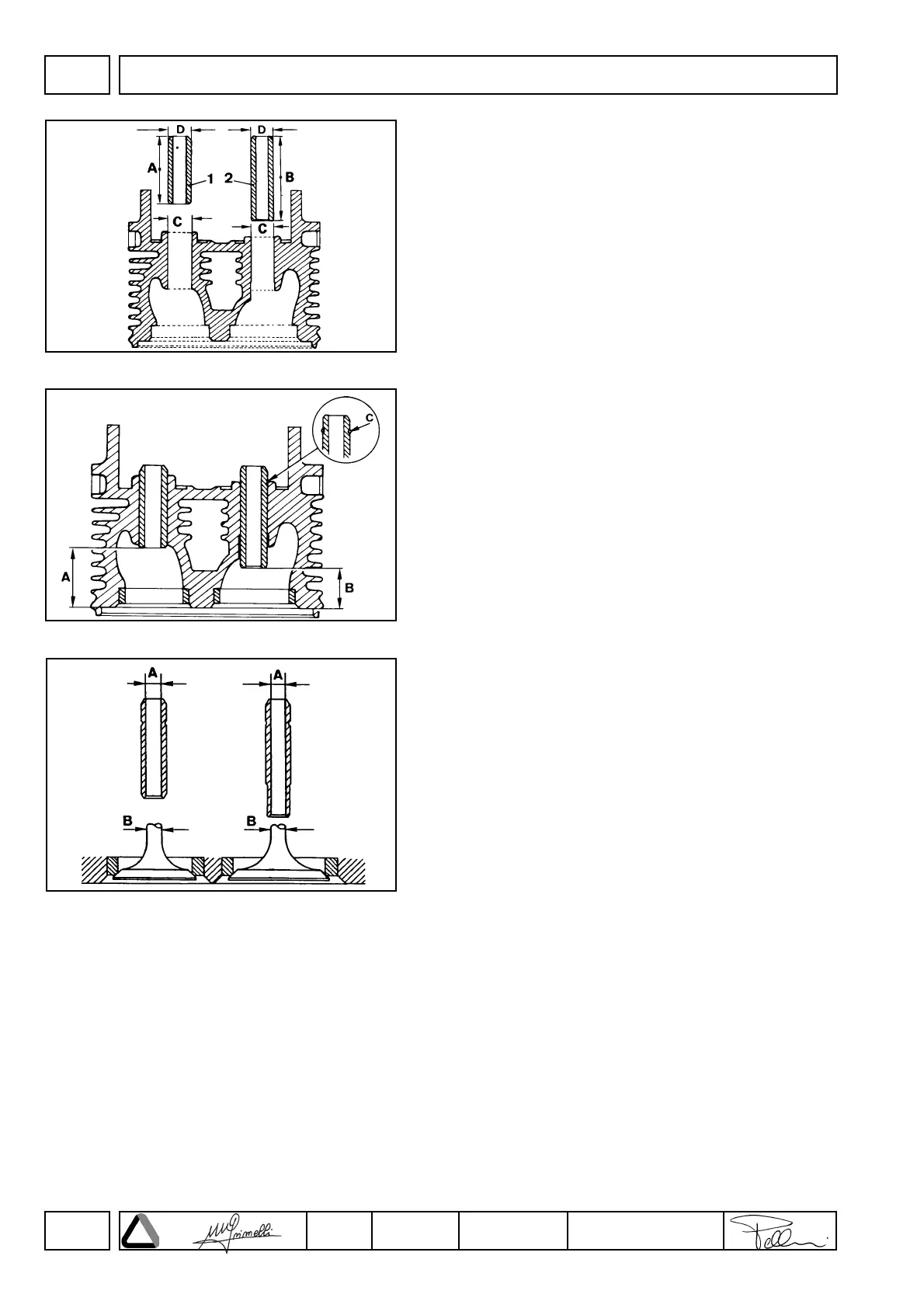

Components:
1 = Exhaust valve guide
2 = Intake valve guide
Dimensions (mm)
A = 42.00
B = 48.5
C = 14.000÷14.018
D = 14.050÷14.060
Valve guides with outside diameter increased by 0.5 mm are also
available; in such cases valve guide bore C should also be
increased by 0.5 mm.
Valve guide insertion
Heat cylinder head up to 160÷180°C
Press guides considering the A e B distances from the head plane.
Dimensions (mm):
A = 30.80÷31.20
B = 24.80÷25.20
Note: If guides are seated with stop ring C, first locate the ring in
place and then position guides without considering A and B.
Dimensions and clearance between guides and valves (mm)
A = 8.030÷8.045 (with guide in place)
B = 7.985÷8.000
(A-B) = 0.030÷0.060
(A-B) limit value = 0.15
