47
COMPILER TECO/ATL
REG. CODE
1-5302-296
MODEL N°
50510
DATE OF ISSUE
01.89
REVISION 02
ENDORSED
DATE
17.04.2003
IX
112
113

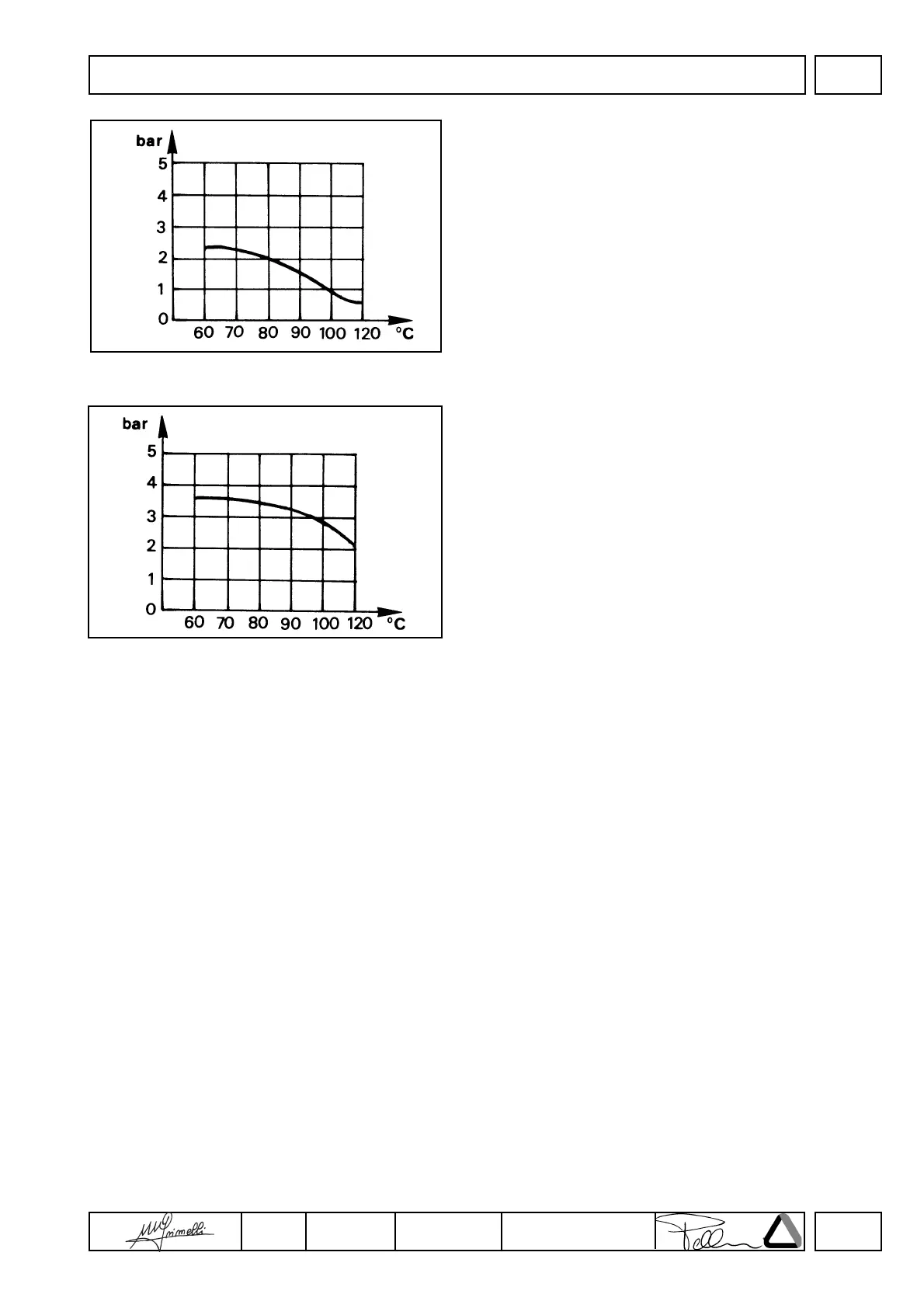

Oil pressure curve at idling speed
The curve is obtained at the oil filter level with constant engine
speed of 1200 r.p.m. in no-Ioad conditions and at a room
temperature of + 25° C.
Pressure is given in bar and temperature in centigrades.
Oil pressure curve at full speed
The curve is obtained at the oil filter level with engine working al
3000 r.p.m. al the N power. Room temperature is +25°C.
Lube oil peak temperature should be below 120°C for engines
without oil cooler and below 110°C for engines with oil cooler.
Pressure is given in bar and temperature in centigrades.
LUBRICATION SYSTEM
