LONCIN LC 2000i - Page 44


44

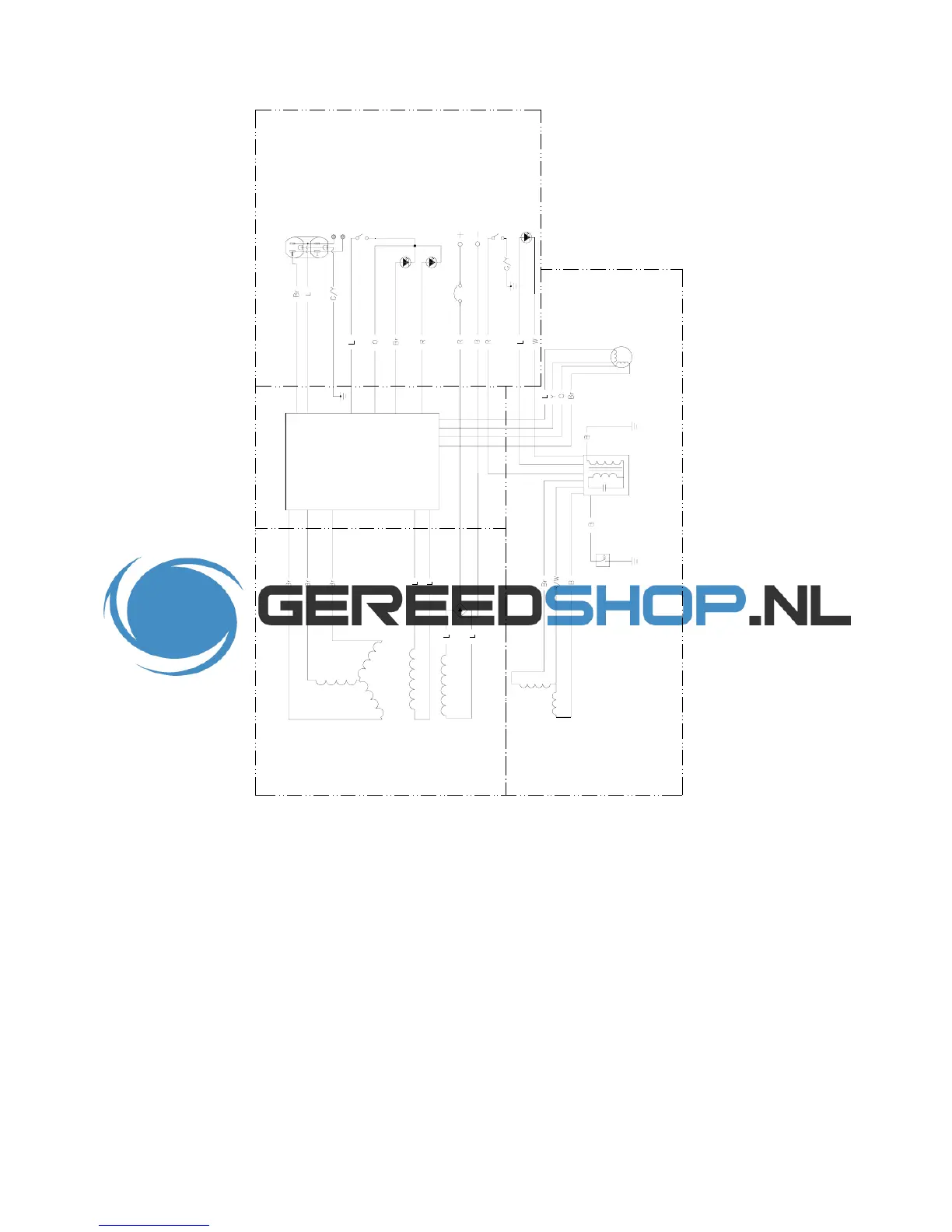

B.60Hz,120V With Parallel Receptacle
B Br
G
L
O
R
W
Y
B
/W
G
/Y
R
/W
Black Brown
Green
Blue
Orange
Red
White
Yellow
Black
/White
Green
/Yellow
Red
/White
KBPC2510
rectifier
lgnition coil
charging
oil sensor
ignition
spark plug
stepper motor speed
DC receptacle
inverter
parallel receptacle
flameout switch
DC-spoel
Subspoel
Hoofdspoel
GENERATOR BLOCK
ENGINE BLOCK
CONTROL PANEL BLOKC
INVERTER BLOCK
circuit breaker 10A
AC receptacle
ESC switch
oil warning indicator light
overload indicator light
AC pilot light
