SECTION 4. DISASSEMBLY AND SERVICE
4-4 Engine

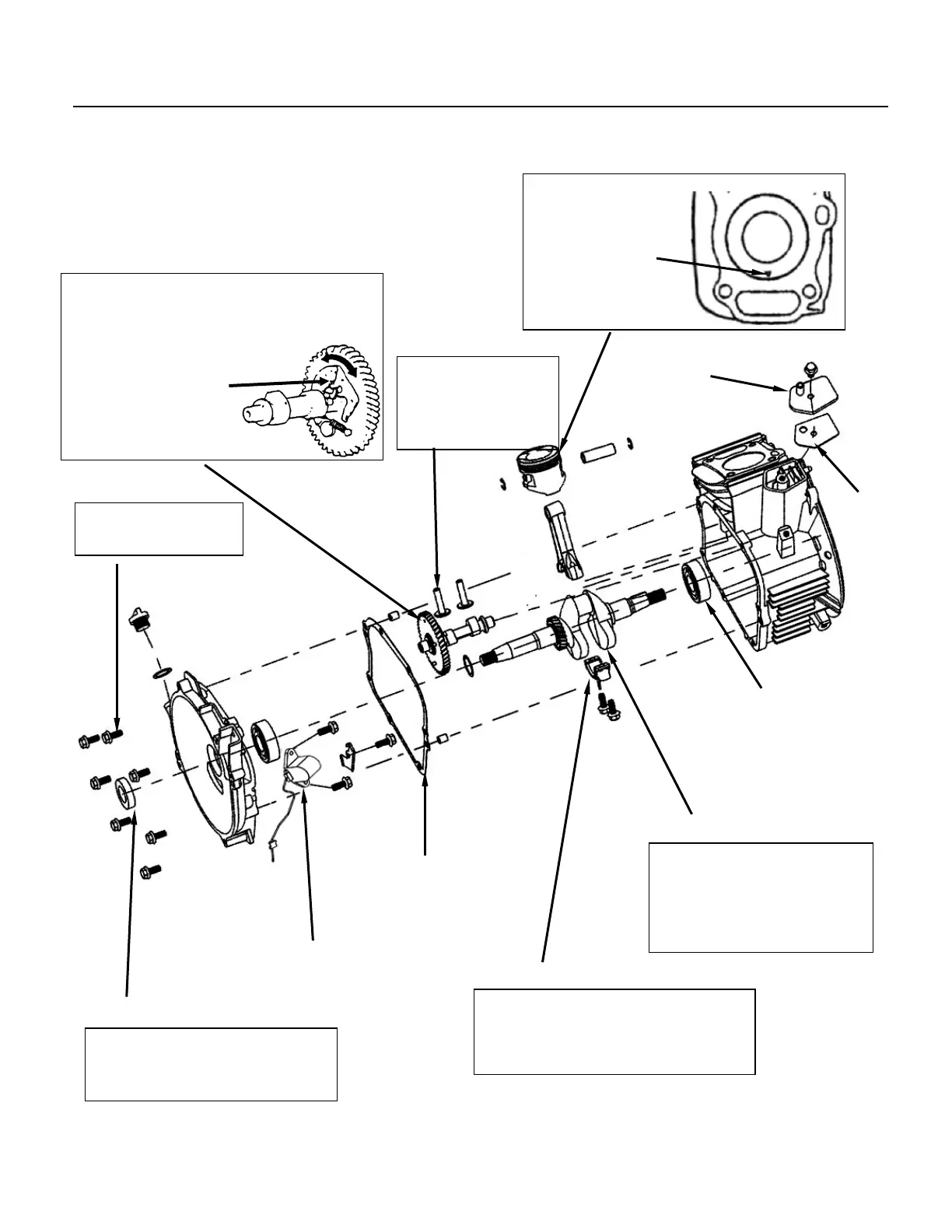

4-4-1 Camshaft / piston
a.DISASSEMBLY/ REASSEMBLY
REASSEMBLY:
I
nstall the lifters
immediately before
installing the
camshaft.
REASSEMBLY:
Install with the oil dipper toward the
governor arm’s hole end
and the ribs
on the cap and connecting rod
must
be aligned.
REASSEMBLY:
Push in until the bearing
touches the crankcase. Be
careful not to damage the
oil seal.
CRANKSHAFT
CONNECTING ROD CAP
OIL LEVEL
SWITCH
DECOMPRESSOR
WEIGHT
REASSEMBLY:
Check that the decompressor
weight moves smoothly, and
the spring is not weak or worn.
Install with the
timing marks
aligned.
CAMSHAFT
VALVE
LIFTER
REASSEMBLY:
Install with the
triangle mark
toward the push
rod hole.
PISTON
BREATHER
CHAMBER CAP
BREATHER
CHAMBER
PACKING
6204 BEARING
CRANKCASE
COVER PACKING
OIL SEAL 20×35×5
REASSEMBLY:
Be careful not to damage the lip of
oil seal when inserting the
crankshaft.
BOLT M6×22 (7)
Torque: (8~12) N•m
- 19 -
