LONCIN LC2000i - Flywheel; Ignition Coil;Recoil Starter

SECTION 4. DISASSEMBLY AND SERVICE
4-4-3 Flywheel / Ignition Coil/Recoil Starter

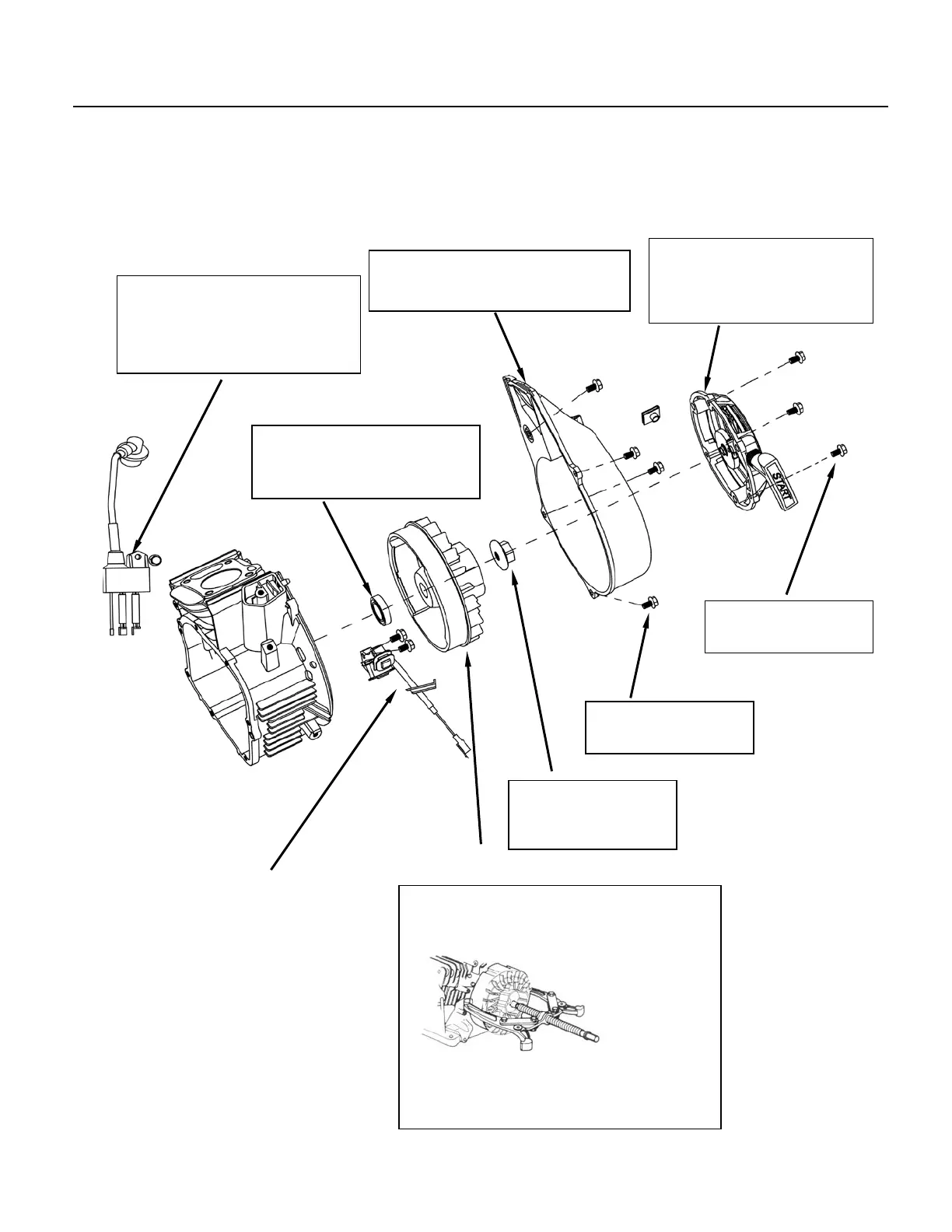

a. DISASSEMBLY/ REASSEMBLY
IGNITON COIL
DISASSEMBLY/ REASSEMBLY:
Check for cracked or damaged
insulation before installation
, to
avoid electric leakage
CHARGE COIL
ASSY
OIL SEAL 20×35×5
REASSEMBLY:
Be careful not to damage the
lip of oil seal when inserting
the crankshaft.
MAGNETOR
ROTOR ASSY
DISASSEMBLY:
Use a special tool (flywheel puller)to
remove. Never knock with a hammer.
REASSEMBLY:
Remove oil or any other dir
ty matter from
crankshaft and flywheel’s
tapered surface
before installation.
Flange nut M12
Torque: (60~70)
N•m
FAN COVER
DISASSEMBLY/ REASSEMBLY:
Remove all dirt before installing.
BOLT M6×16
（
4
）
Torque: (8~12) N•m
RECOIL STARTER ASSY
REASSEMBLY:
Remove earth or grass
sticking to it
, pay attention to
installing direction
BOLT M6×14（3）
Torque: (8~12) N•m
