LONCIN LC2000i - Outer Case Assembly

SECTION 4. DISASSEMBLY AND SERVICE
4-5-7 Outer case assembly
a. DISASSEMBLY/ REASSEMBLY

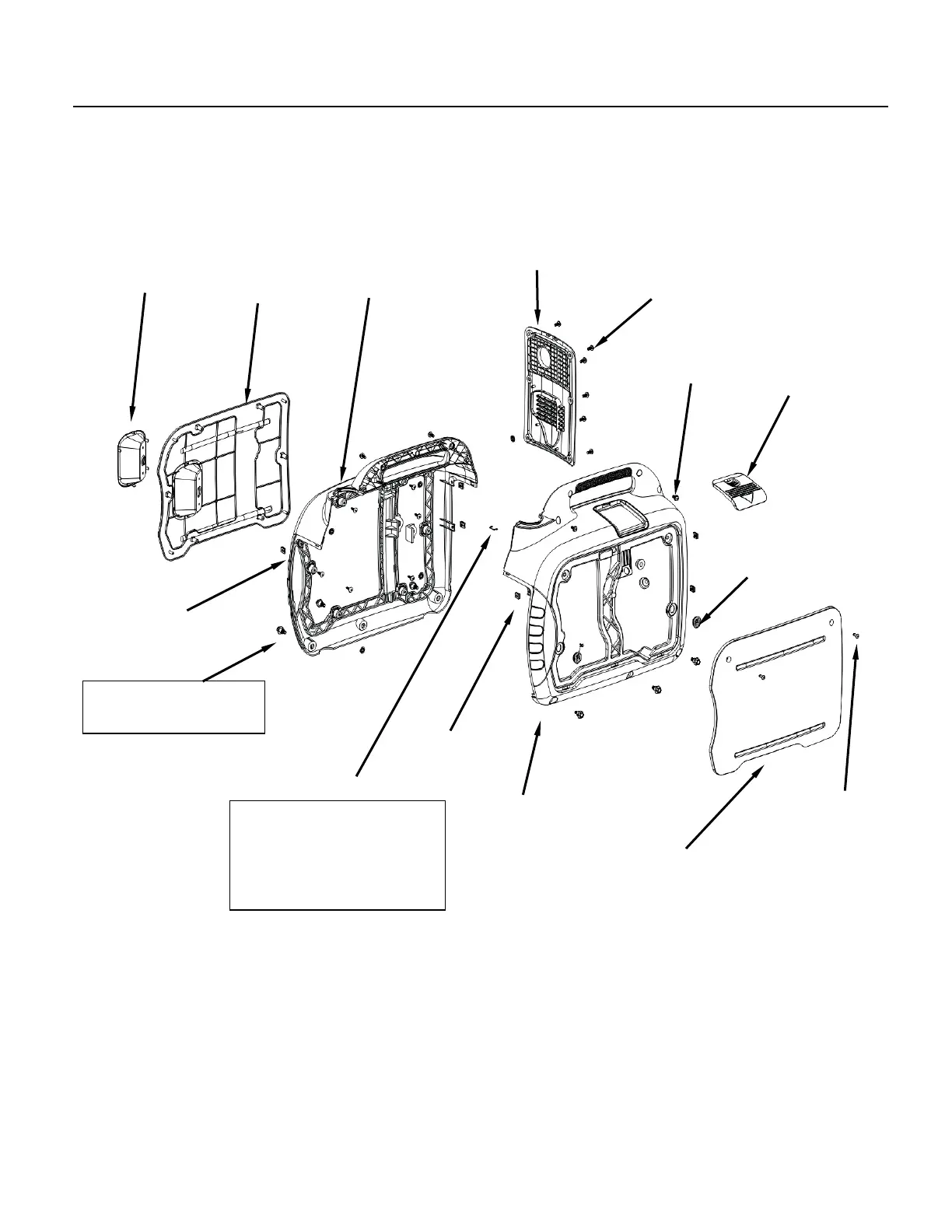

LOUVER
SCREW M5×12
RIGHT CARRYING
COVER
LEFT CARRYING
HANDLE
RUBBER
DAMPER (2)
ROPE GRIP
HOLE
DECORATION
SCREW M5×12
LEFT COVER
BOLT M6
×
16 (3)
Torque: (8~12)N•m
CLIP
ASSEMBLY:
Push apart fuel filler rubber
housing by hand, push the
clip into the clip groove in
left and right carrying
covers.
CLIP NUT (3)
CLIP NUT (3)
RIGHT COVER
SCREW M5×10
(2)
SPARK PLUG
MAINTENANCE
OPENING CAP
- 54 -
