LONCIN LC2000i - Carburetor

SECTION 4. DISASSEMBLY AND SERVICE
4-4-4 Carburetor
a. DISASSEMBLY/ REASSEMBLY

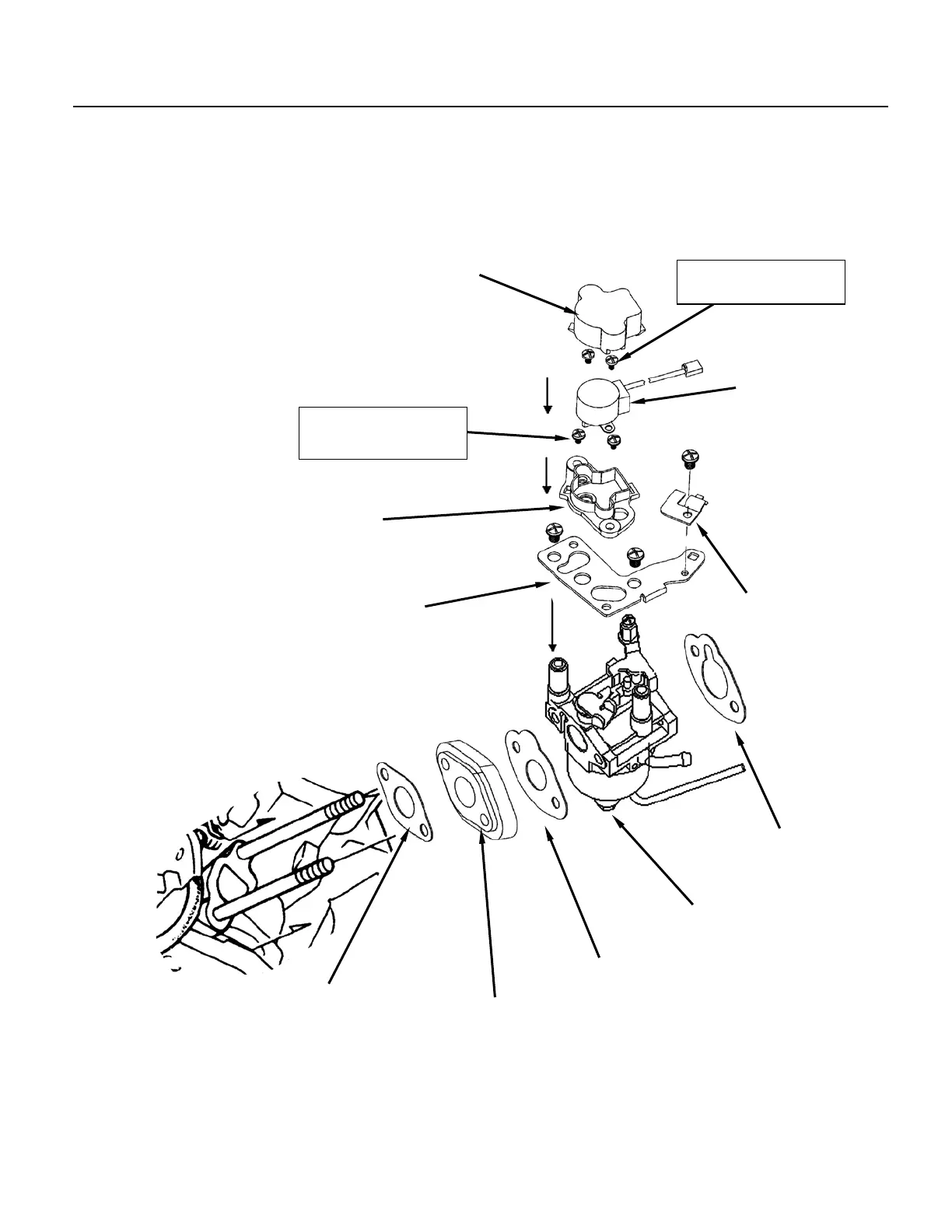

INTAKE PIPE
PACKING
CARBURETOR
INSULATOR
CARBURETOR
PACKING
CARBURETOR
AIR CLEANER
PACKING
CHOKE STAY
COMP.
STEP MOTOR
MOUNTING BRACKET
SCREW M5×12
（
2
）
Torque: (5~7) N•m
CABLE
HOLDER
STEP MOTOR
PROTECTIVE COVER
SPEED-VARIABLE
STEP MOTOR
BOLT M3×5
（
2
）
Torque: (1~1.5) N•m
- 37 -
