LONCIN LC2000i - Frame;Bedplate Combination

SECTION 4. DISASSEMBLY AND SERVICE

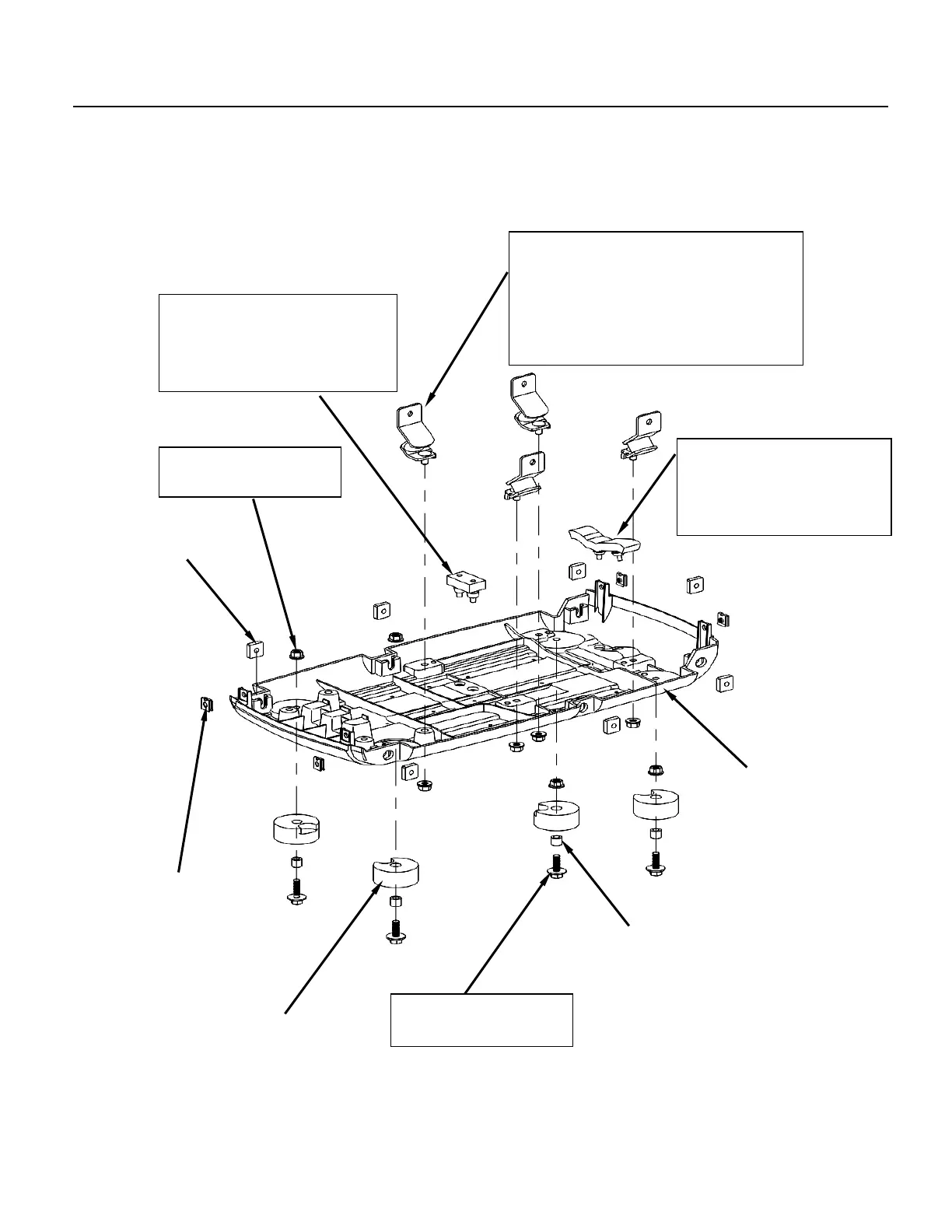

4-5-3 Frame/Bedplate Combination
DISASSEMBLY/ REASSEMBLY
MAIN UNIT BUFFER
MOUNT (4)
REASSEMBLY:
Align it with frame/bedplate
combination’
s installation hole and
install it.
Make sure the rubber is not chapped,
hardened, or worn.
Pay attention to installing direction.
BOLT M6
×
20 (4)
Torque: (8~12)N•m
BUSH (4)
RUBBER SHOCK
ABSORBER(4)
CLIP NUT M5(4)
SQUARE NUT
M6(6)
NUT M6 (8)
Torque: (8~12)N•m
CUSHING RUBBER
REASSEMBLY:
Install it under the motor,
make sure rubber
has no
cracks, hardening or wear.
FRAME/BEDPLATE
COMBINATION
CUSHING RUBBER
REASSEMBLY:
Install it under the engine, make
sure rubber has no cracks,
hardening or wear.
- 43 -
