LONCIN LC2000i User Manual

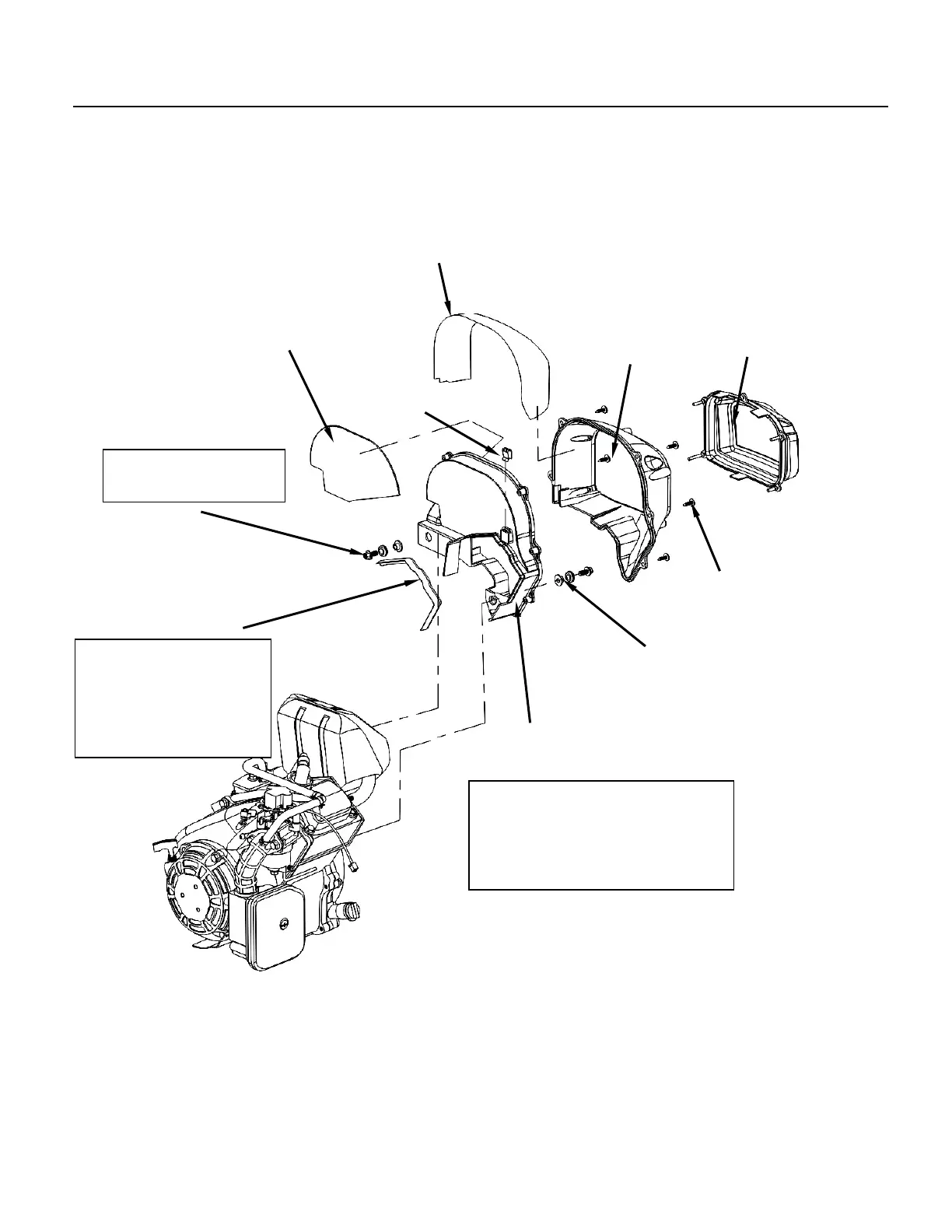

SECTION 4. DISASSEMBLY AND SERVICE
WIND
DIVERSION
COVER
MUFFLER
PROTECTOR
COVER (REAR)
MUFFLER PROTECTOR
(FRONT)
MUFFLER
PROTECTOR
COVER RUBBER
STRIP
THERMAL INSULATION
ALUMINUM SHEET
NUT M6×14 (2)
Torque: (8~12)N•m
THERMAL INSULATION
ALUMINUM SHEET
I-SHAPE RUBBER
RING
SELF TAPPING
SCREW ST4×15 (5)
SHROUD
CLIP
REASSEMBLY:
Clamp muffler front protector to
the engine, use shroud clips to fix
muffler front protector and
shroud.
REASSEMBLY:
Clamp muffler protector
cover’s rubber strip onto
muffler’s
front protector
cover
- 42 -
