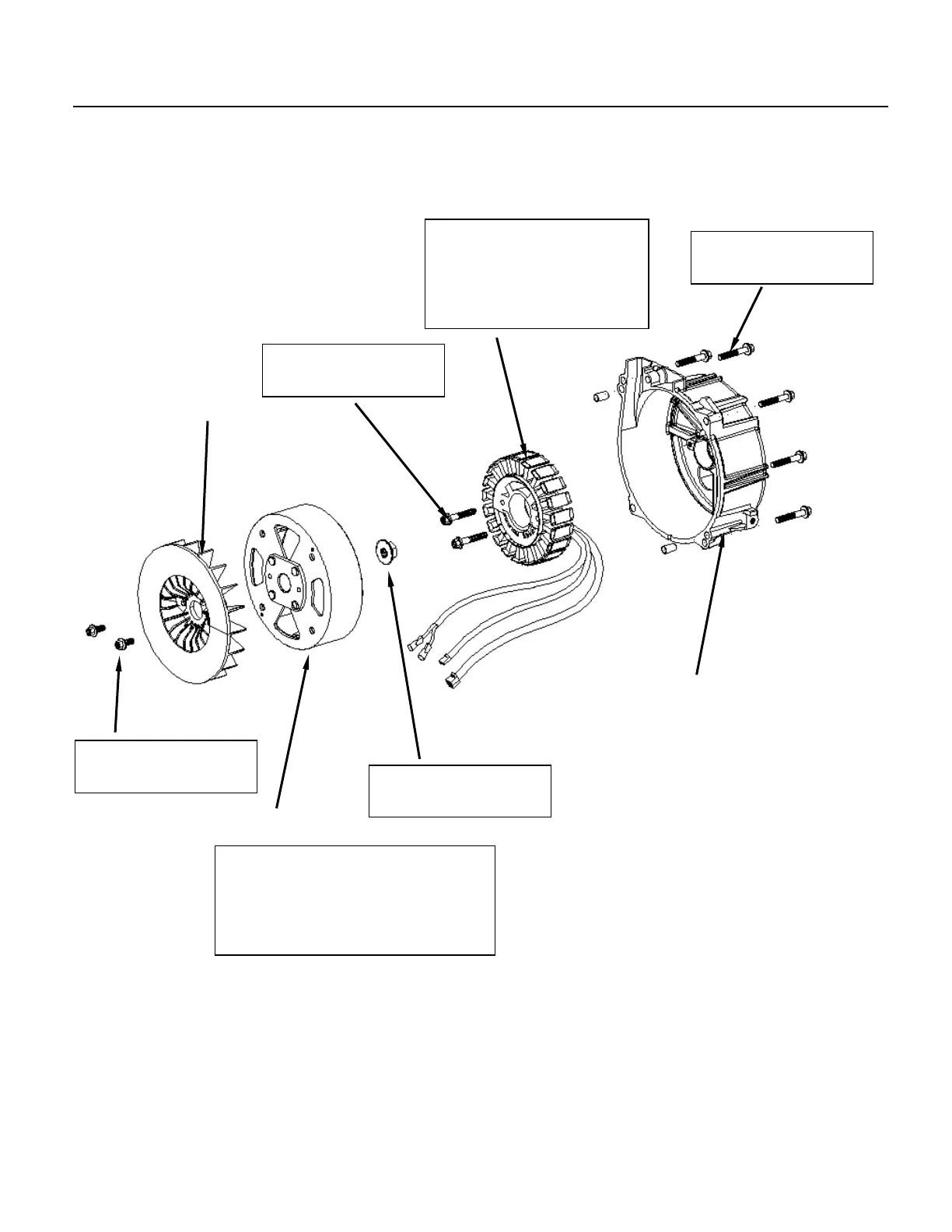

SECTION 4. DISASSEMBLY AND SERVICE
MOTOR ROTOR
MOTOR
STATOR
MOTOR
FAN
REAR
HOUSING
BOLT M6
×
30 (5)
Torque: (8~12)N•m
NUT M12×1.25
Torque: (60~70)N•m
REASSEMBLY:
Put stator’
s wires through rear
housing’
s hole, and position
them on the rear housing’
s
mounting holes.
BOLT M6×30 (2)
Torque: (8~12)N•m
REMOVAL:
Use the rotor’s thread for removal
to install an appropriate rotor puller
(a special tool) to remove the rotor.
BOLT M6
×
12 (2)
Torque: (8~12)N•m
- 45 -
