Chapter IV Disassembly & Repair
- 36 -

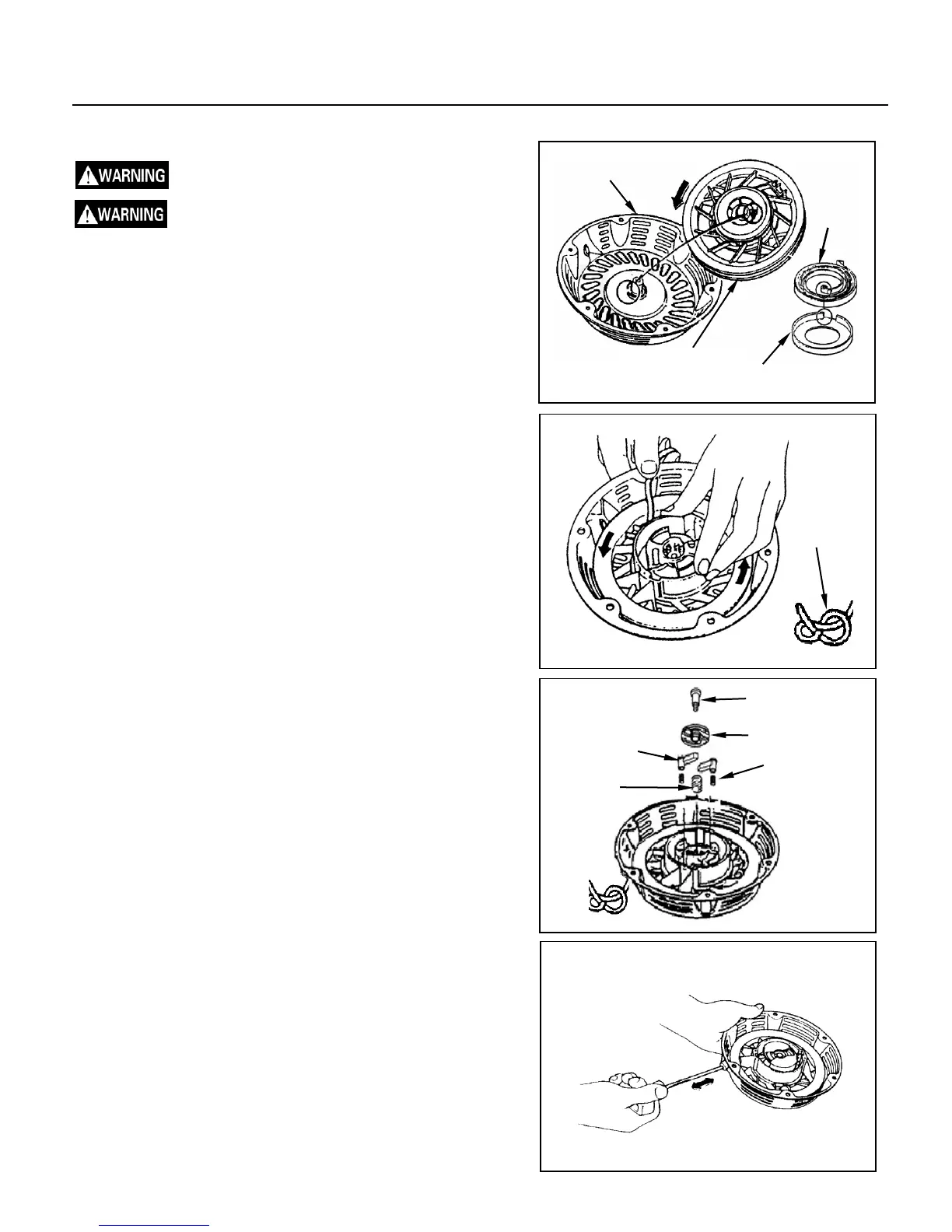

Assembly of hand starting parts
Wear gloves and goggles to protect your hands
and eyes.
Do not make the starting return spring popup.
1) Put the return spring in the seat cover, hang the hook outside
the return spring at the gap of seat cover fixedly and make it
align to the slot of pull rope disk, then assemble to seat cover
unit to pull rope disk. Coat grease on the jack catch of starter
cover, rotate it toward the left and assemble it, and to hang the hook
inside the return spring at the jack catch of starter cover.
2) Tie a knot at one end of the pull rope, and tread the other
end from the pull rope hole of pull rope disk. Then twine
the pull rope disk for 5 circles anticlockwise.
Tread the starting pull rope from the hole of starter cover
and tie a 8-knot at the end of pull rope.
3) Assemble dirve cam, torsional spring and drive guide plate
and fasten the center bolt.
4) Pull the pull rope of starter for several times and check
the return status of drive cam.
