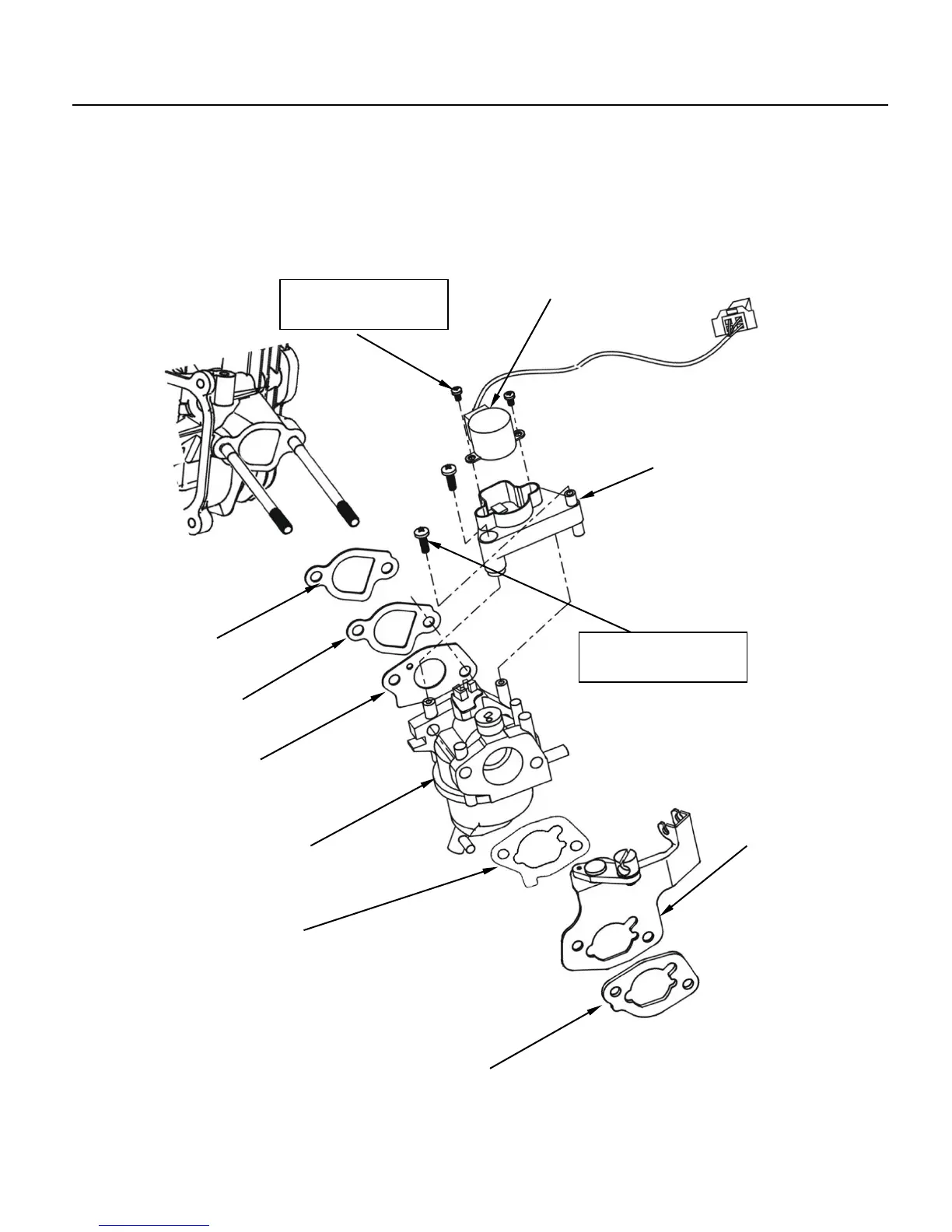

4-4-4 Carburetor
a. Disassembly/assembly
Sealing gasket of
carburetor
Sealing gasket
of carburetor
Installing support
of speed-regulating
stepper motor
Screw M4 × 12 (2)
Torque: (5~7) N•m
Support of
choke valve
Speed-regulating stepper motor
Sealing gasket of
inlet pipe
Insulation gasket
of carburetor
Sealing gasket
of carburetor
Carburetor
Screw M3 × 5 (2)
Torque: (1~1.5) N•m
